Flat Panel Filters provide efficient filtration for different applications with suitable geometry. With the portable design of the panel wedge wire screen, it adapts to a wide range of applications.
Product Details

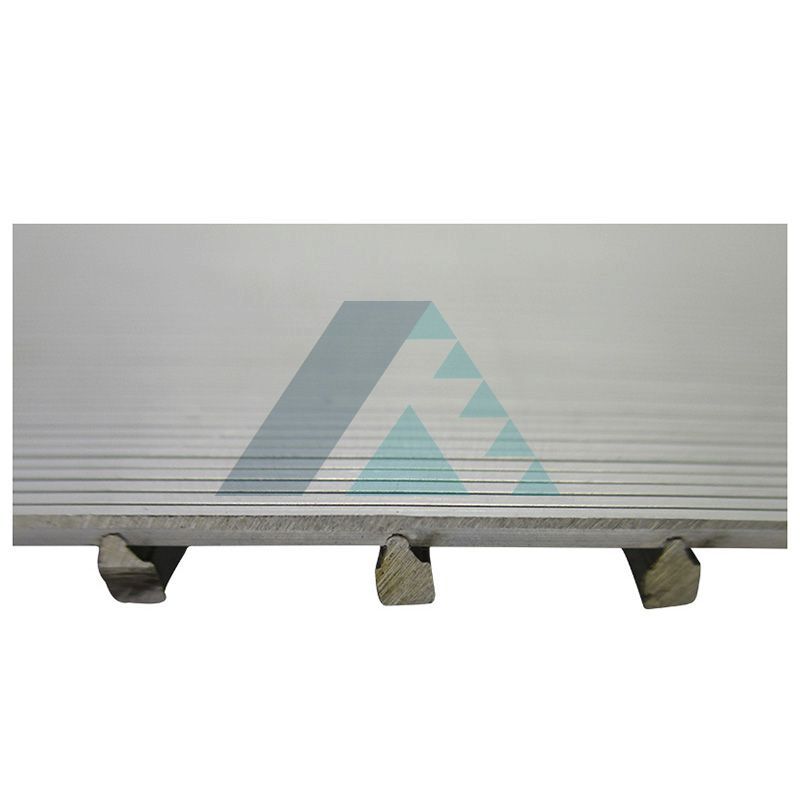

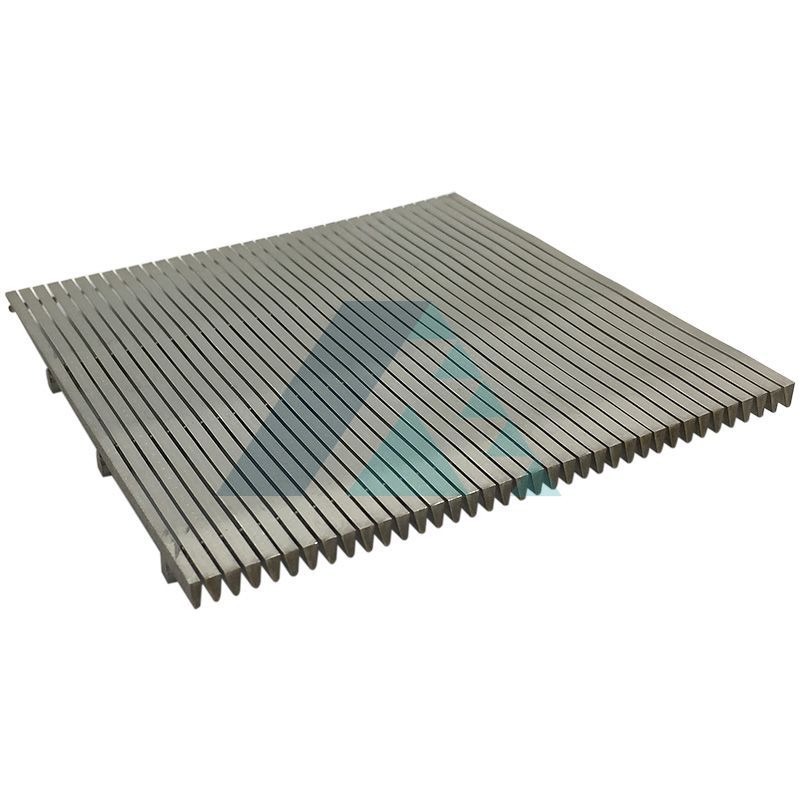

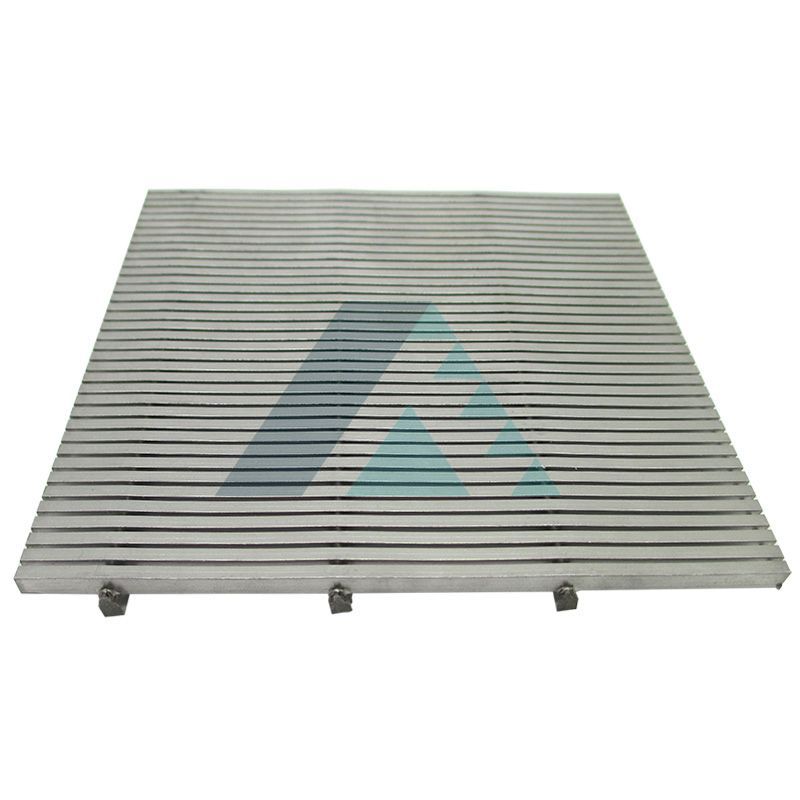

The flat panel filter also called wedge wire screen flat panel is a Johnson wedge wire screen for filtration. Thus, the shape of the flat screen helps the filtration process complete accurately by vibration or flow.
Flat Panel Filters provide efficient filtration for different applications with suitable geometry. With the portable design of the panel wedge wire screen, it adapts to a wide range of applications.
For the wedge wire screen panels, stainless steel with different grades is the most common selection as a material, such as 304 316 316L 321, Duplex, Hastelloy, etc. In addition, we are able to manufacture using different kinds of materials and special surface treatments are available for your application of panel frame wedge wire screen depending on your request.

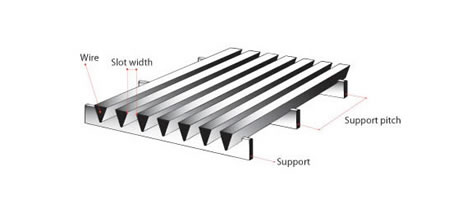

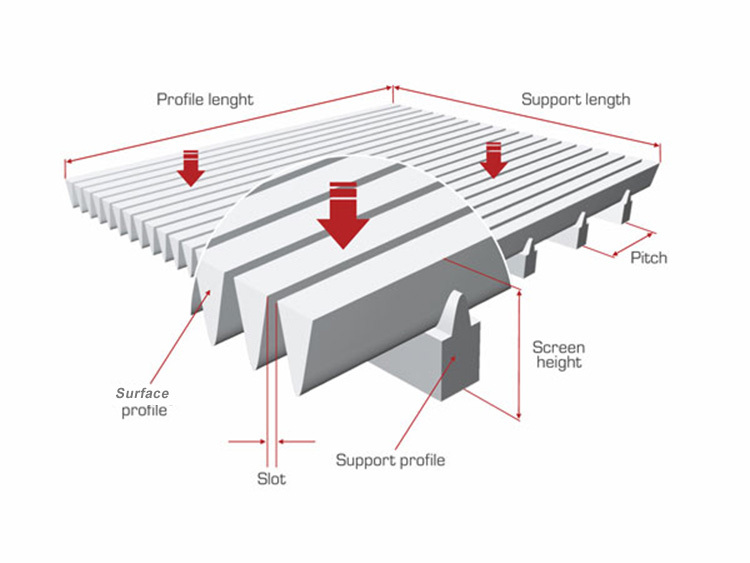

The working principle of a wedge wire flat panel filter is based on the use of wedge wire screens with V-shaped profiles. These profiles have gaps between them that allow for effective filtration while maintaining a high flow rate.

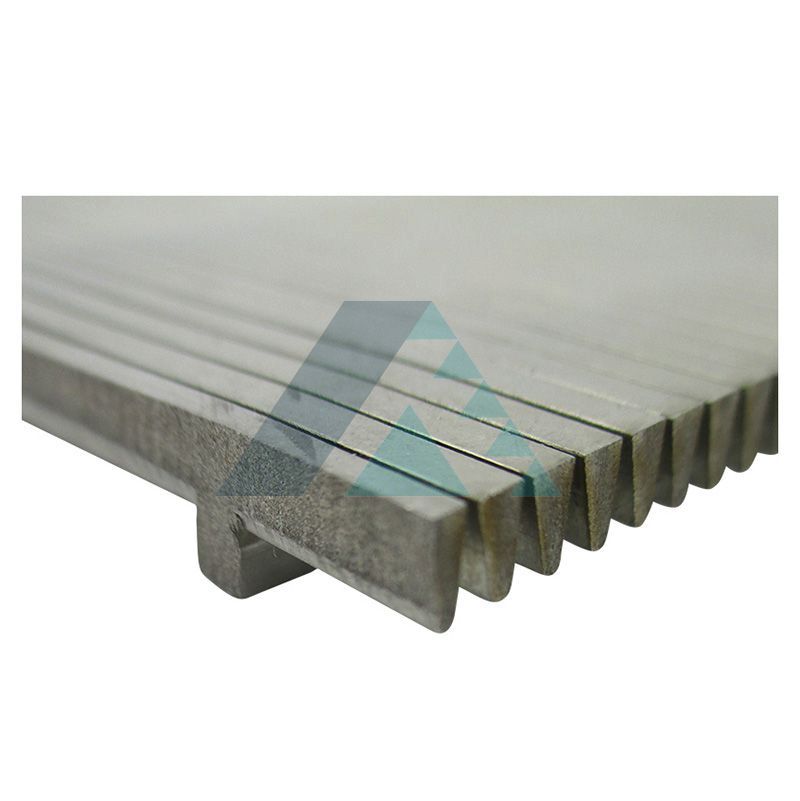

The V-shaped surfaces of the wedge wire screen prevent clogging by allowing smaller particles to pass through the gaps. This means that these particles can flow freely without getting trapped or obstructing the filter. However, larger residues and impurities are unable to pass through the narrow gaps between the V wires, thus preventing them from entering and contaminating the filtered medium.
In summary, flat panel filters utilize wedge wire screens with V-shaped profiles to achieve efficient filtration and prevent clogging. The unique design allows for excellent flow rates while effectively separating small particles from larger impurities.
See what makes YUANLV a Filter Screening Media specialist.Enquire now
Wedge Wire Screens: Our high-strength, stainless steel wedge wire screens are designed to withstand wear and tear in coarse mineral processing applications. Each filter is custom-made for specific installations. Additionally, we offer wedge wire screen segments with specified sealing requirements.

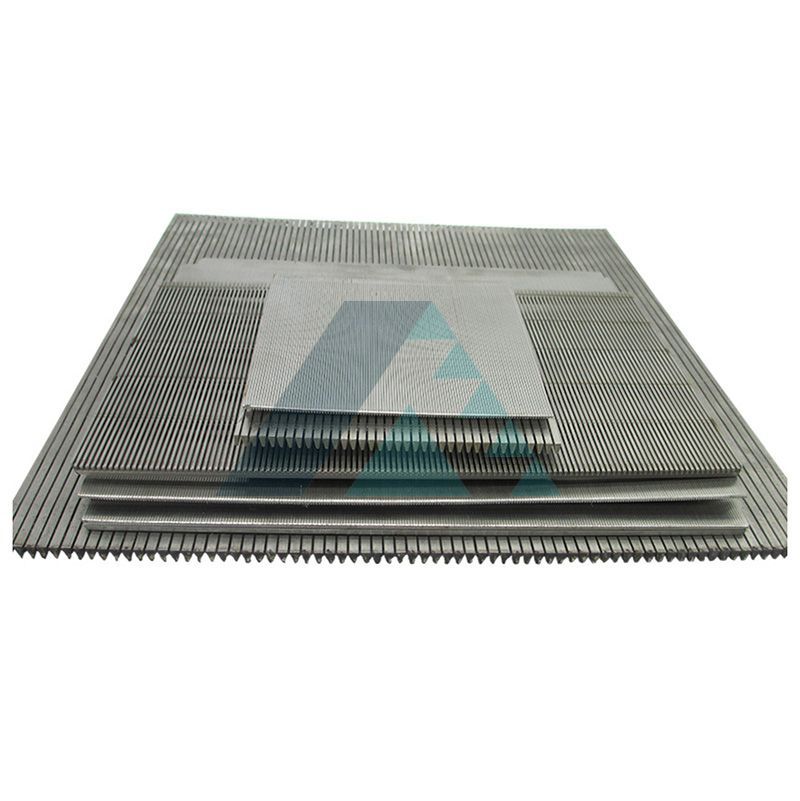

Wedge Wire Flat Drainage Panels: These panels provide excellent resistance to abrasion and corrosion in vibrating screen applications. They feature high-release angles and minimal pegging in harsh screening media environments.
--Precise sizing maintained with wedge wire screen filters
--Maximized open-area drainage
--High resistance to abrasion and corrosion
--Machine spot-welded for superior strength throughout
--High release angles
--Custom made to fit specific machines and applications
--Wide range of apertures and profiles available
At YUANLV, we take care of every aspect of Wedge Wire Screen Filter production – from initial design to ongoing maintenance. We utilize specialized trajectory modeling techniques to ensure that the ideal screen is selected for your particular application. All our wedge wire screen filters are designed in-house using specialized tools based on your unique requirements. Furthermore, we offer comprehensive field service maintenance options for all our customers who purchase a YUANLV wedge wire screen filter!
