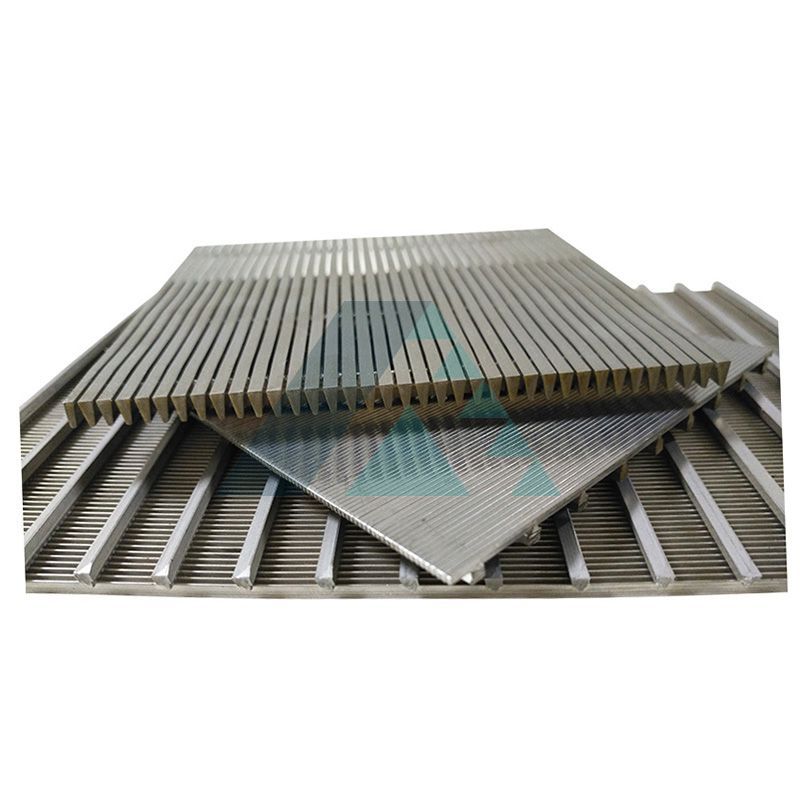

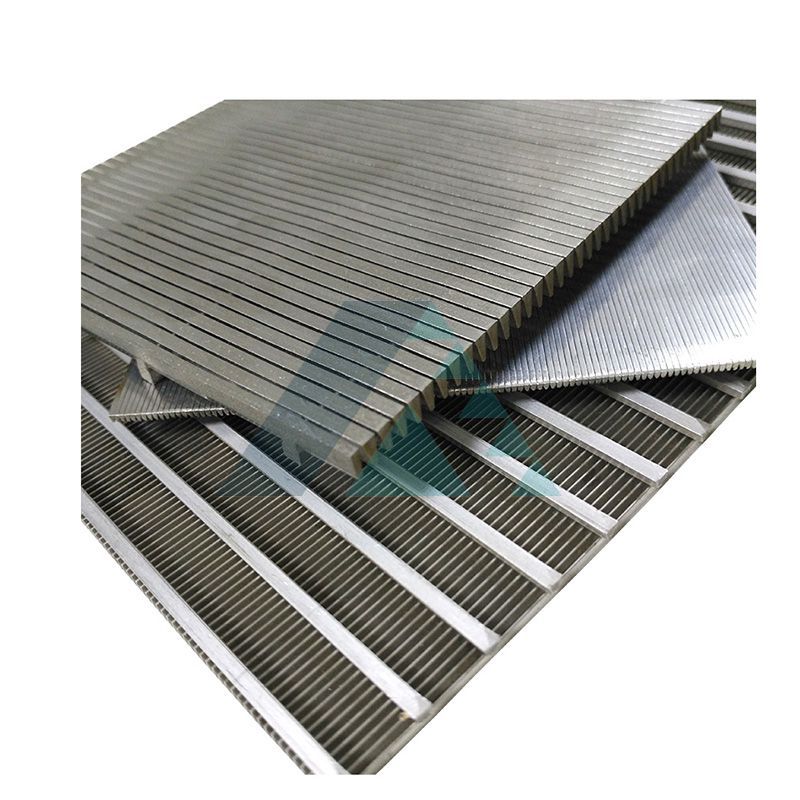

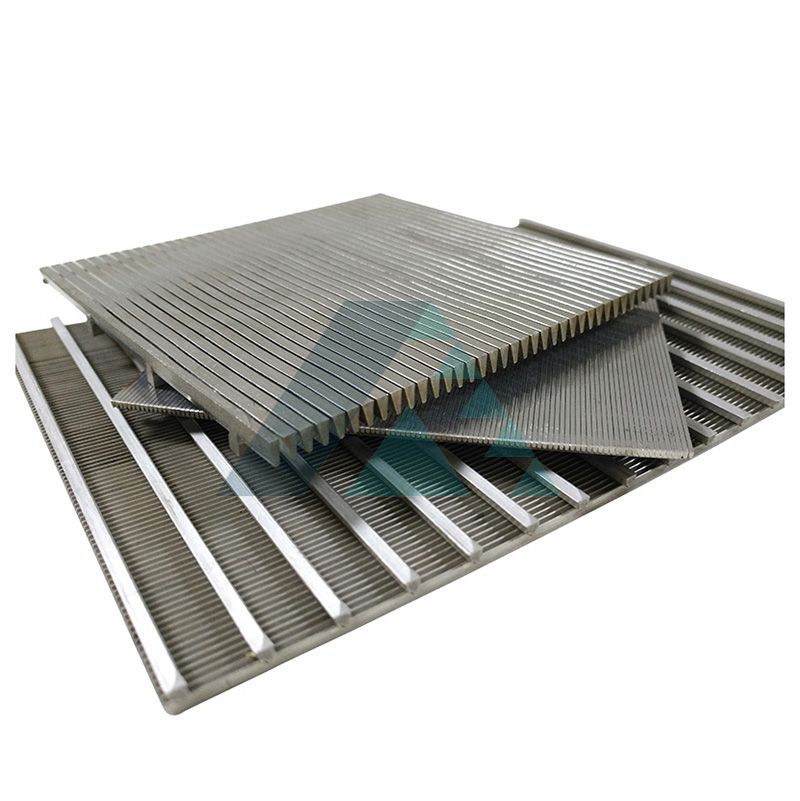

SS Wedge Wire Screen Panel

Wedge wire screen panels, also called v wire screen flat screens, vee wire panels, johnson screen panels, slotted wire welded panels. It is manufactured with stainless steel surface profiles and support profiles. The surface profile is welded onto support profiles at each intersection in a 90 degree.

Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar, and a rectangular bar. They can suit different machines and can be used in various applications.

Advantages of wedge wire screen panels

-- Flat surface.

-- Excellent filtering performance.

-- Accurate distance between supporting profile.

-- Welded production process for a solid and strong structure.

-- Good mechanical properties.

-- High strength.

-- High load capacity.

-- Corrosion and rust resistance.

-- Temperature resistance.

-- Chemical stability.

Applications of wedge wire screen panels

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:

Vibrating screen decking.

Surface water intake screens.

Fish diversion screen panels.

Hatchery screens.

Grain drying screen.

Malt kin or germination floors.

Decorative materials.

Specifications of Wedge Wire Screen Flat Panel:

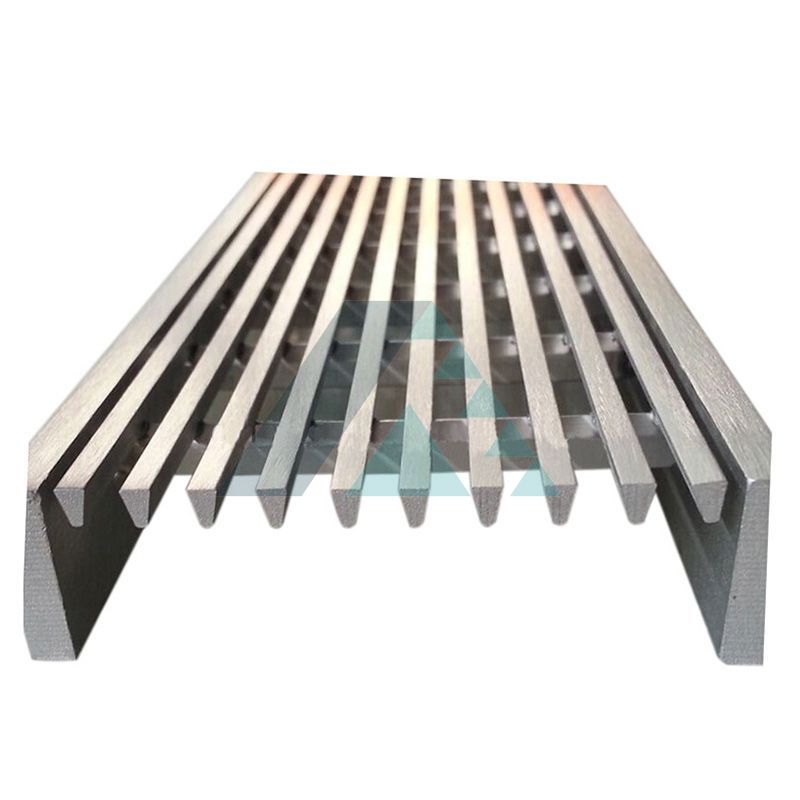

Support types of wedge wire screen panels

-- Triangle wire.

-- Round bar.

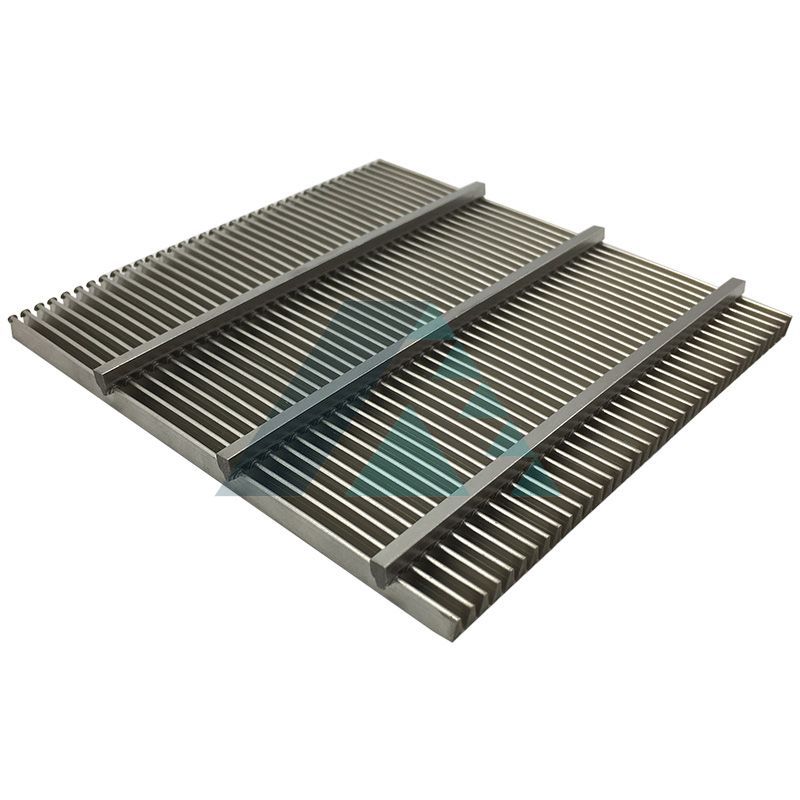

-- Rectangular bar.

-- Wedge wire.

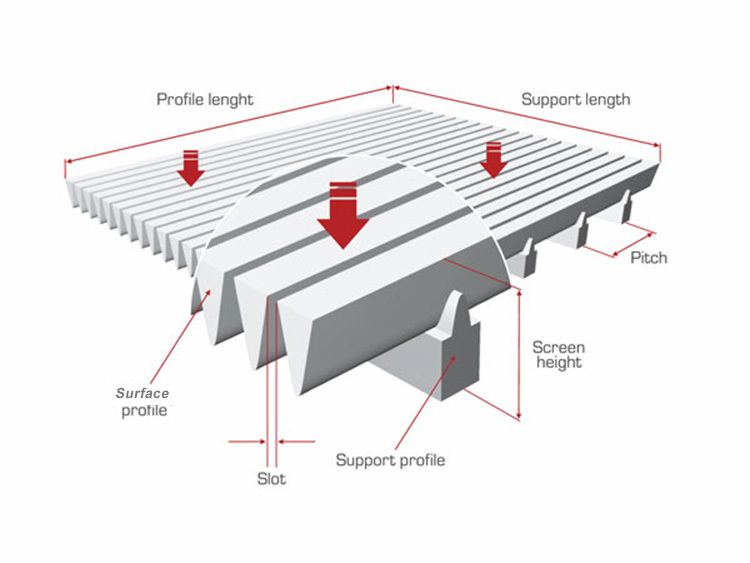

Specifications of wedge wire screen panels

-- Material: stainless steel, or as per your requirement

-- Surface profile type: triangle wire.

-- Support profile type: round bar, rectangular bar, wedge wire, triangle wire.

-- Slot size: 0.05 mm - 10 mm.

-- Pitch: 10 mm - 35 mm.

-- Panel width: 500 mm - 2000 mm.

-- Panel length: 500 mm - 3000 mm.

Packaging and Transportation of Wedge Wire Screen Flat Panel:

Package: in wood case

Delivery: 10-20 days
