RESIN TRAPS--Providing security in case of catastrophic failure.
Our filter solutions offer a complete range of resin trap styles to suit a wide range of applications.
Product Details

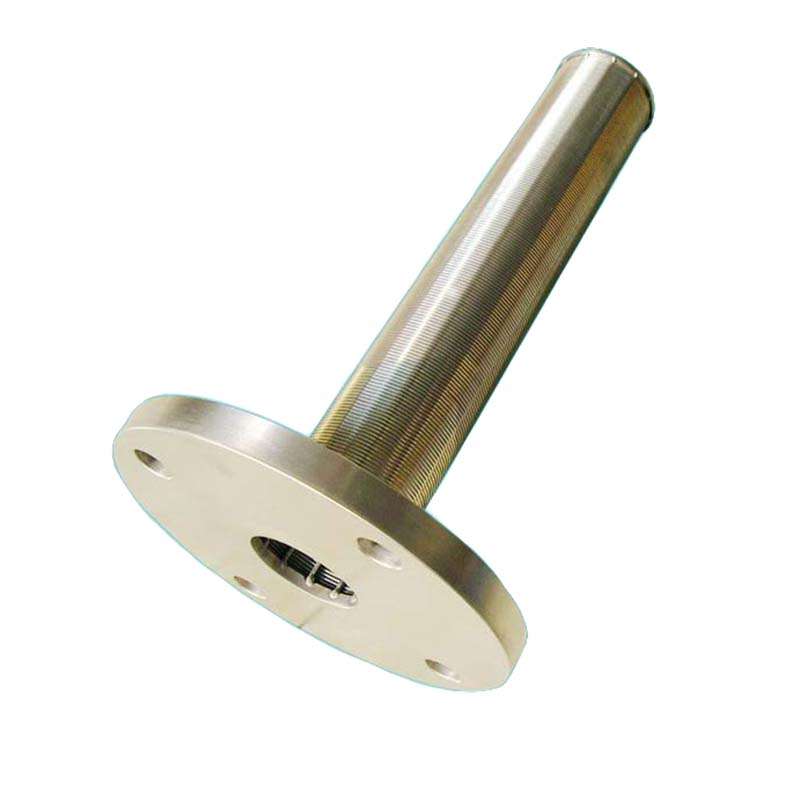

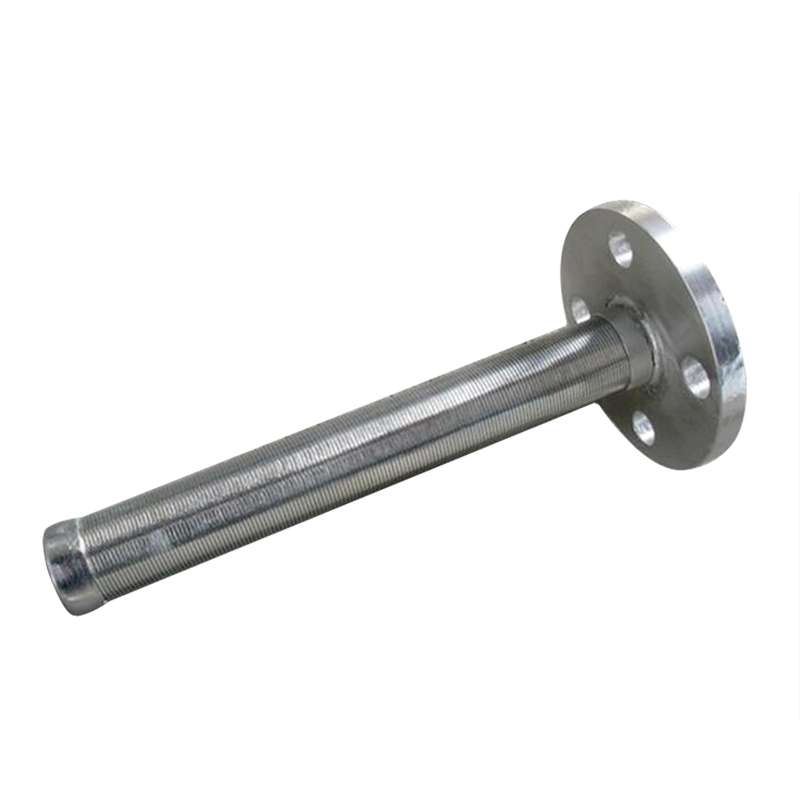

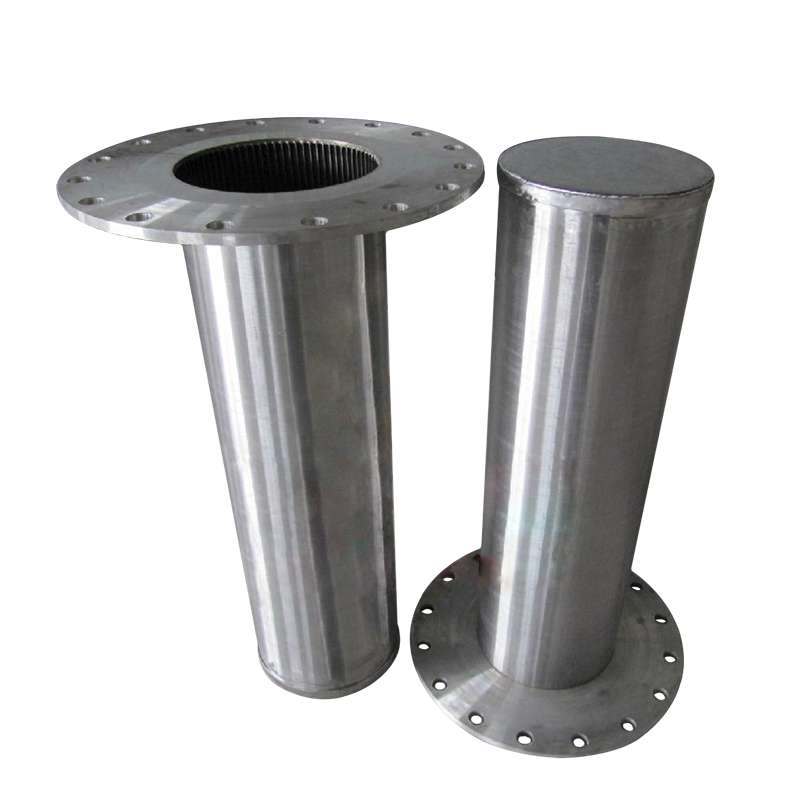

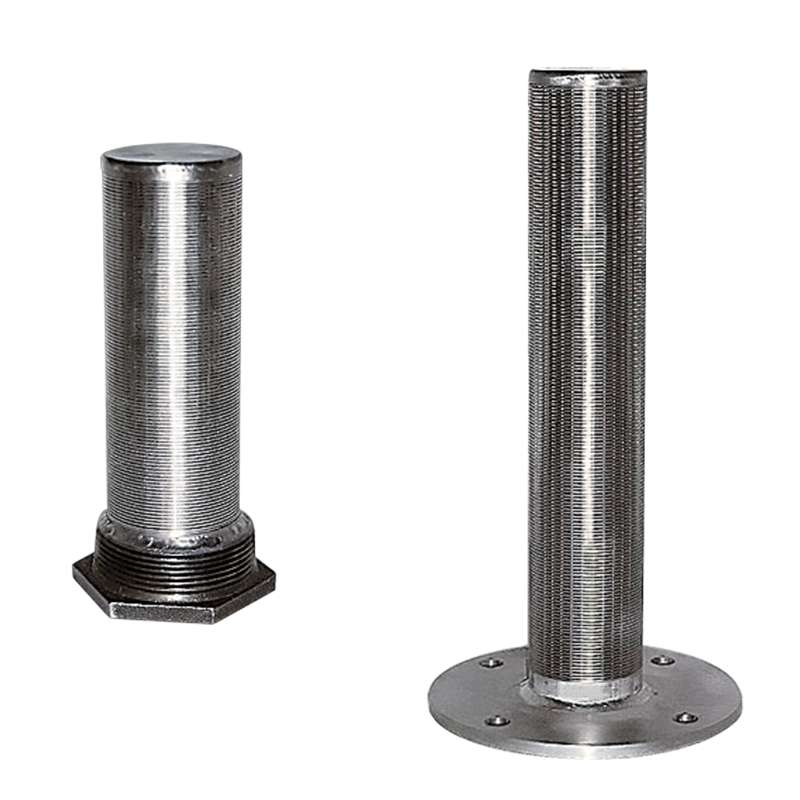

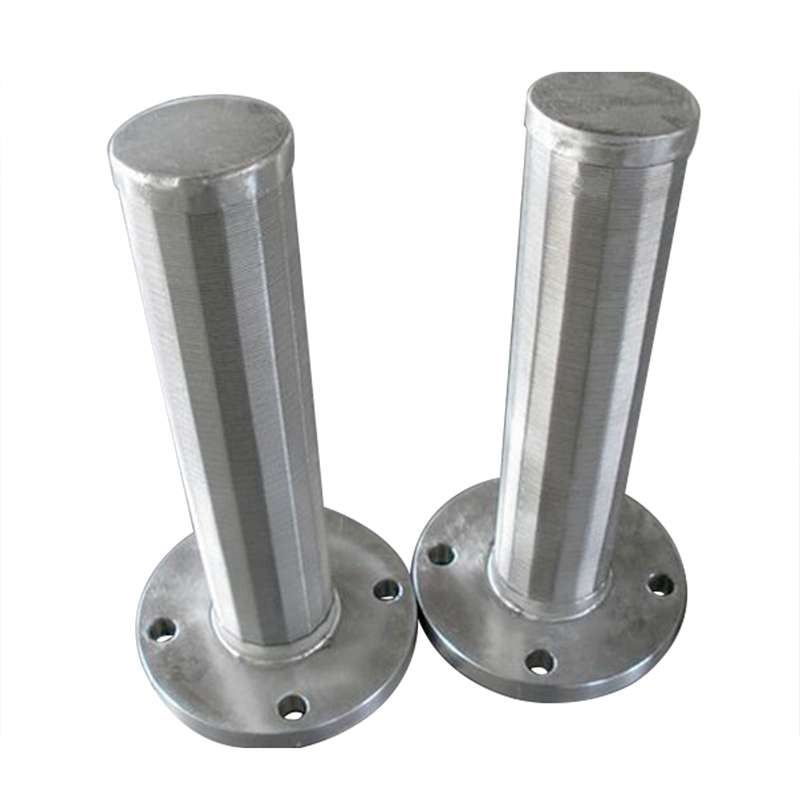

Wedge wire screen resin trap strainers are safety devices used on the outlet pipelines of ion exchange units, high-purity water systems, and activated carbon and media filters. In many systems, a valve failure can allow media to escape from the treatment vessel. Not only is the loss of this media expensive, but it can also easily cause damage to downstream pumping equipment. Placed inline, the V shape screen resin trap provides reliable protection against such damage.

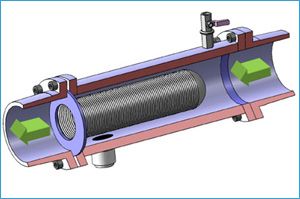

Our filter solutions offer a complete range of resin trap styles to suit a wide range of applications. Resin Traps by design are placed in a housing utilizing the flow to capture media and prevent it from traveling downstream.
Once we receive your request we will contact you within 48 hours.
Characteristics of V shape screen wedge wire resin trap strainer
1. Filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.
2. Trapezoidal wire evenly circumferentially arrays on the support bar, ensuring the screen filter area and non-obstructive, avoiding impurities concentrated.
3. Resin trap all connected by welding, durable, long life.
4. After working for some time, can filter backwash, multiple uses
Application
ResinTrap Screen Filters are widely used for various kinds of water treatment/wastewater treatment in the world.
Specifications :
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | |||||
OD Range | 25mm-2000mm | |||||
ID Range | 19mm-1981mm | |||||
Length Range | Up to 6000 mm | |||||
Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | |||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5*2 | 2x3 | 2*4 |
Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 1.5x2.52x3 | 1.8*2.52x3 | 3*5 | 3*5 |
Connection | Flange and thread | |||||
End Type | Closed plate | |||||
Noted | Customized According To Special Requirement | |||||
