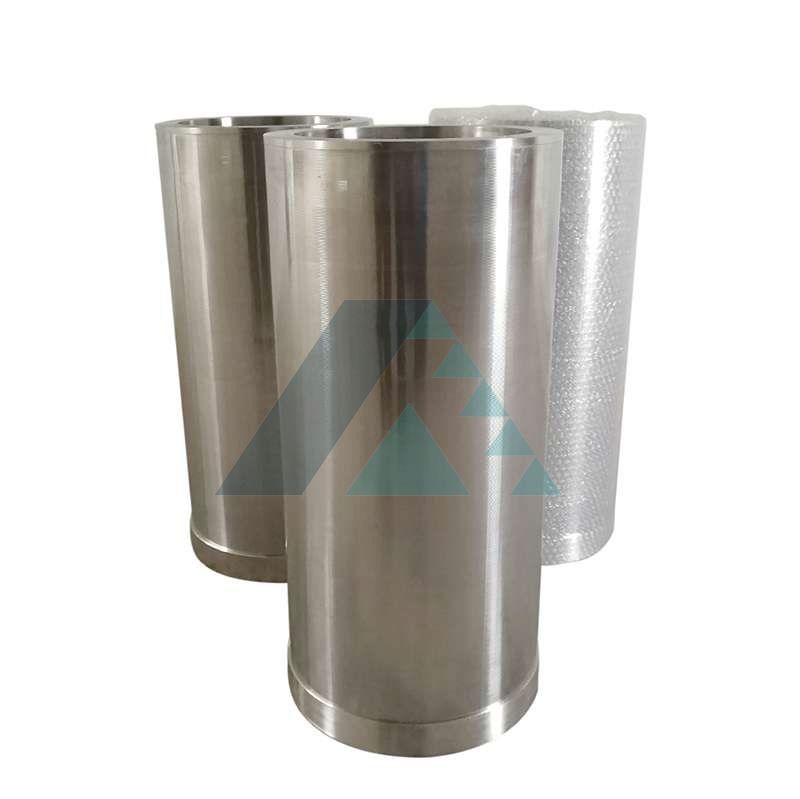

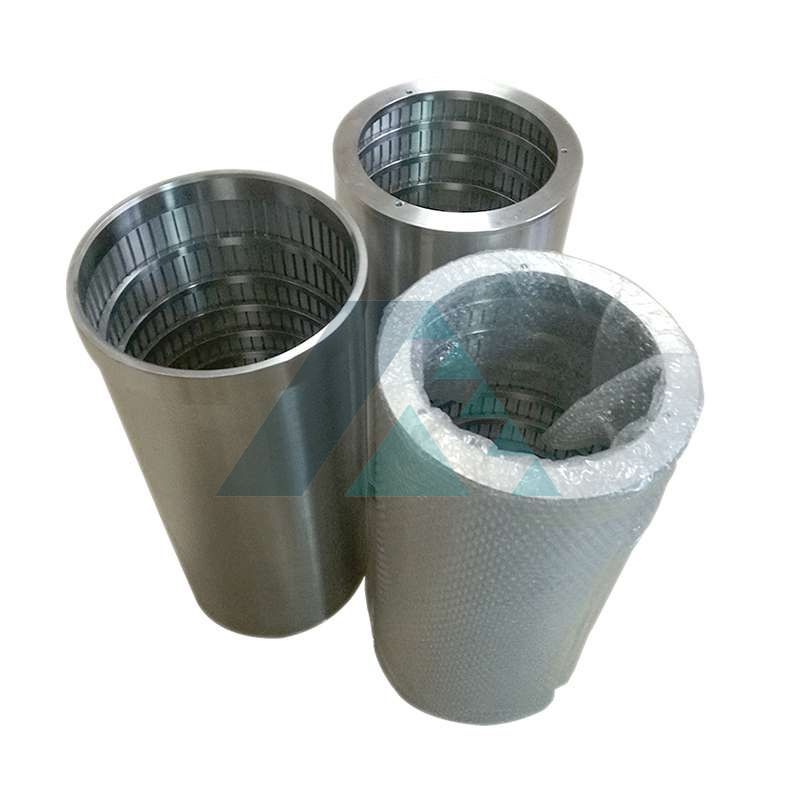

Wedge Wire Screen Cylinder

Share:

The wedge wire Johnson screen cylinder, predominantly constructed from stainless steel, stands as a robust solution for the petroleum and chemical industries, among others. Comprising a working profile and a support profile, this cylinder screen offers exceptional strength and longevity.

Product Details

Wedge Wire Screen Cylinder: Enhancing Efficiency and Durability for Filtration


The wedge wire screen cylinder, predominantly constructed from stainless steel, stands as a robust solution for the petroleum and chemical industries, among others. Comprising a working profile and a support profile, this cylinder screen offers exceptional strength and longevity.


Wedge Wire Screen Cylinder how to work

Characterized by precise slot dimensions, efficient filtration properties, and extended service life, the wedge wire screen cylinder finds widespread utility in the petroleum, chemical, and water treatment sectors. Its applications extend to drilling construction, geothermal development, hydro-geological exploration, and demanding filtration tasks.


How It Works:

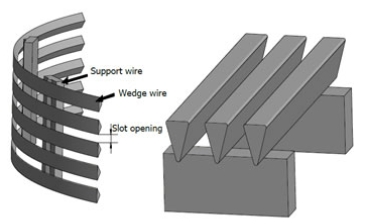

Cylindrical screens function by utilizing the wire gaps formed between the V-shaped profiles. While smaller particles can flow through these gaps, larger residues are effectively blocked, preventing them from passing through.



Versatile Configuration:

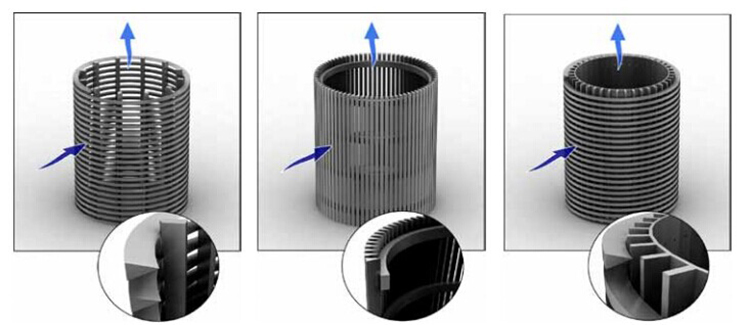

The cylinder screen's configuration varies based on the application and flow direction, which can be either outward or inward wedge wire, adaptable to the flow's specific requirements.

Wedge Wire Screen Cylinder flow direction




Specifications of Stainless Steel wedge wire screen cylinder:


Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

According to request and the actual flange and strengthened bar

Normal ID

176mm, 200mm, 230mm, 255mm. According to request

Normal Length

600mm, 602mm, According to request

Normal Slot

0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.

Slot Direction

Radial Direction

Wedge Wire

0.75x1.5

1x2

2x3

2*4

3*5

Support Rod

1.5x2.52x3

1.5x2.52x3

2x32x43x53x6

2x43x53x65x6

3x53x65x6

End Finishing

Flange, Metal Ring, etc

Note

Customized According To Requirement




Key Features

High Strength and Open Area: Ensuring durability and efficient filtration.


Accurate Slot Dimensions and Effective Filtration: Guarantees precision in filtering properties.


Corrosion and Rust Resistance: Ideal for challenging industrial environments.


Various Types and Sizes: Offers versatility to suit diverse applications.


Durable with a Long Service Life: Delivers extended operational longevity.


Application

Petroleum Industry: Primarily for oil filtration.


Water Treatment Industry: Including seawater desalination.


Chemical Industry: Suitable for filtering acid and alkali liquids.


Hydro-Geological Exploration and Drilling Construction: Serving specialized needs.


Geothermal Development and High-Load Filtering: Meeting demanding filtration requirements.




















The wedge wire screen cylinder combines strength, precision, and resilience, making it an indispensable asset in industries requiring effective and enduring filtration solutions.
