Category: Wedge Wire Screen Basket
Material: stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties: Wedge Wire Screen Basket
Application: filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens
Product Details

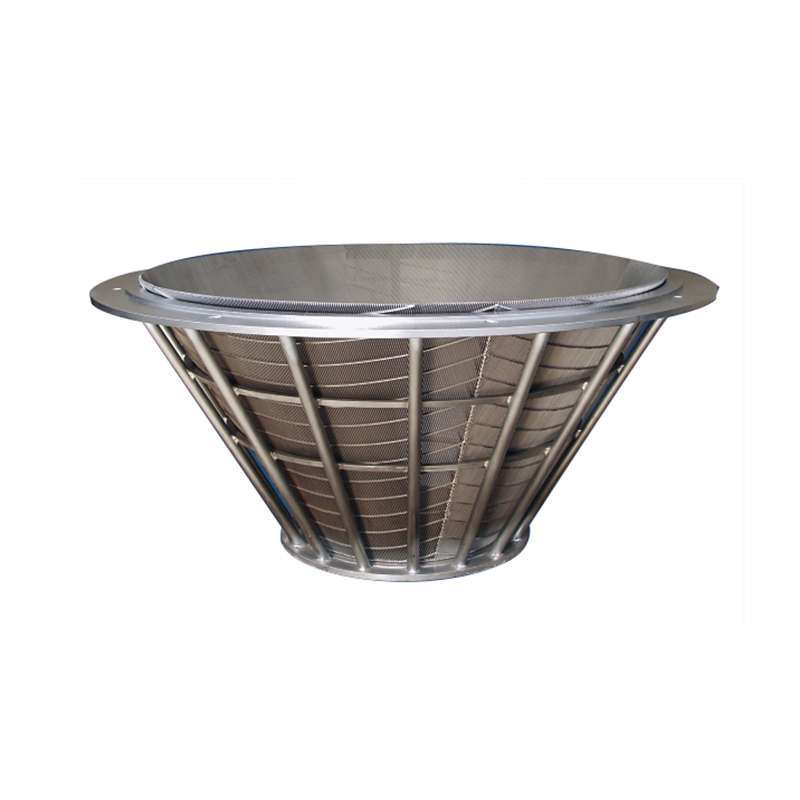

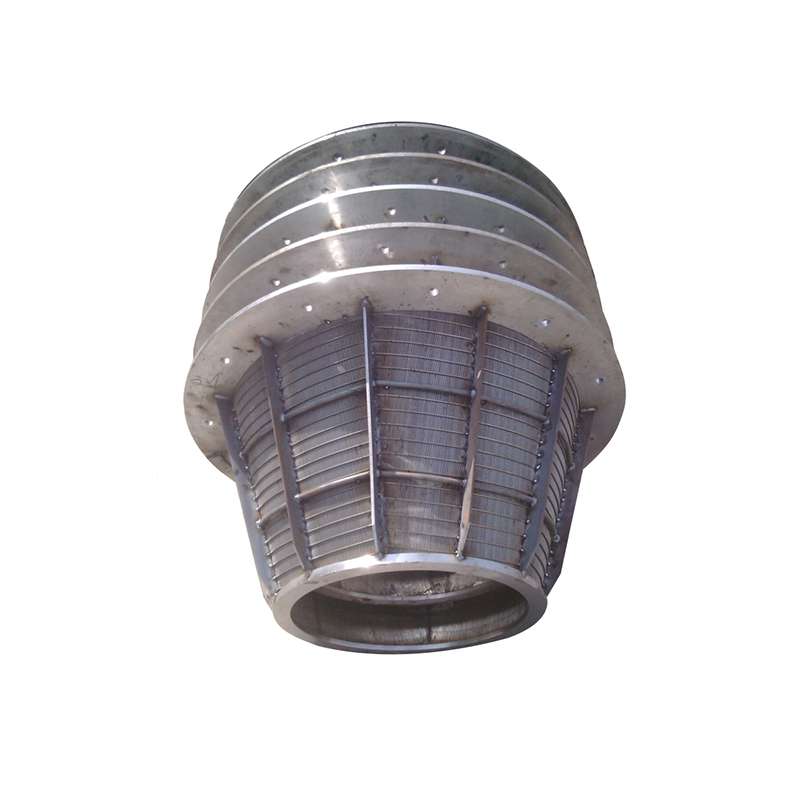

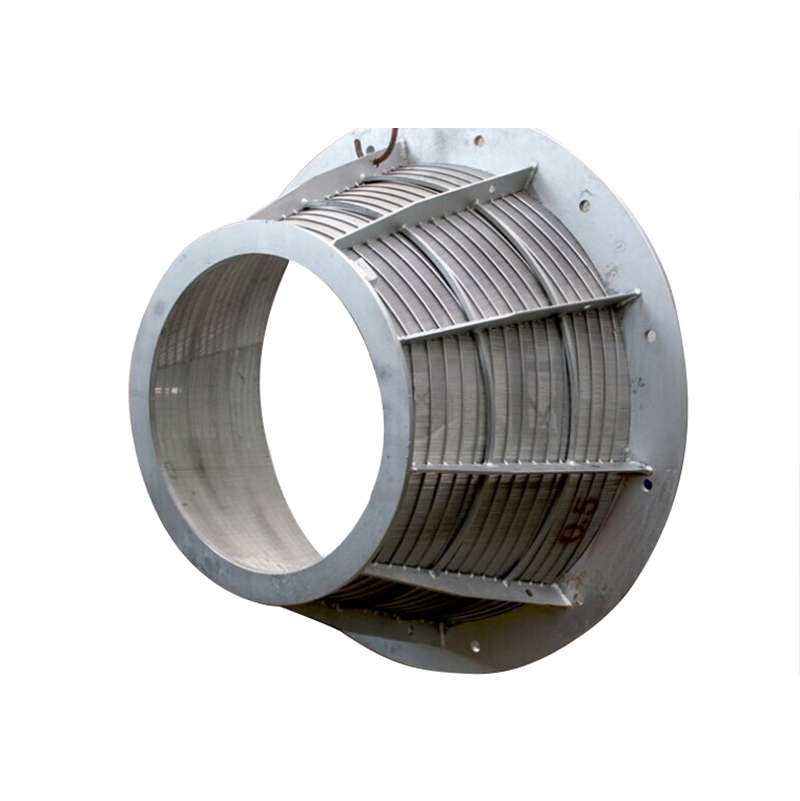

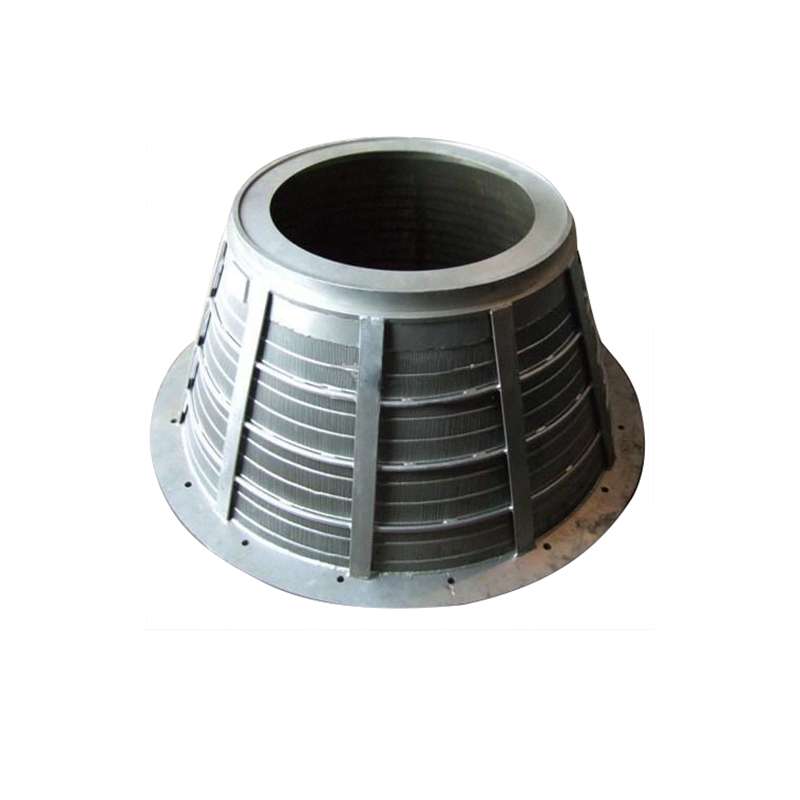

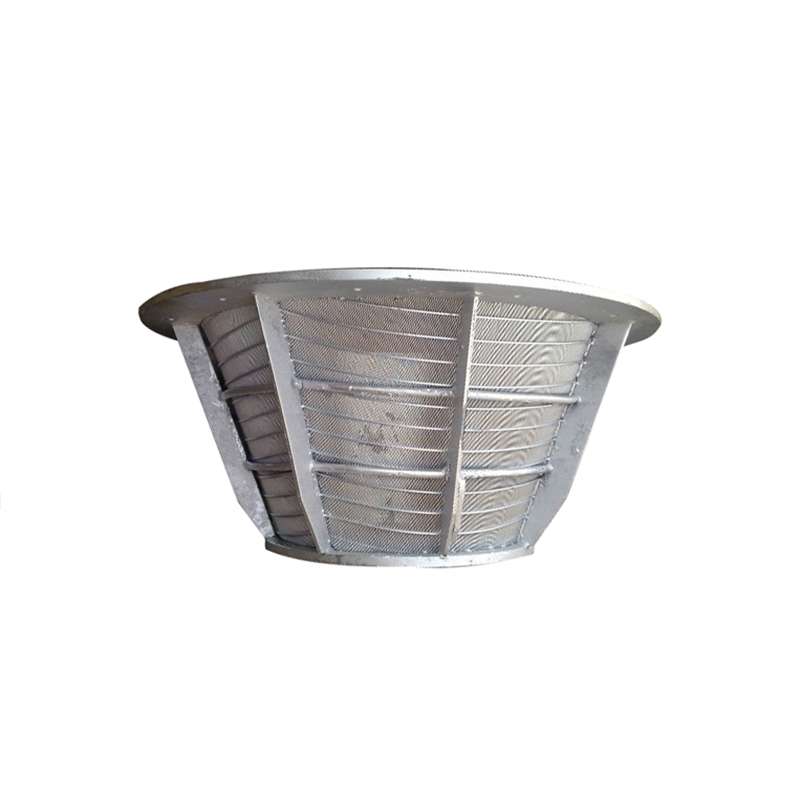

The stainless steel v shape wire screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding, easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation, etc.
Uses for Stainless steel centrifuge sieve screen basket:
widely used in mining, coal, petroleum, chemical fertilizer, food, environmental protection, and other industry to sew sieve net, oil filter, a salt industry with mesh.
Features for Stainless steel centrifuge sieve screen basket:
The variety and full range of sizes meet the requirements of different coals type, different coals quality; size accurately, the error is small, fixed bolt hole does not appear the wrong eye, partial eye phenomena, to make installment saving time and effort; welding quality is good, solid structure, does not appear screen welding open, cracking phenomena; the uniform screen was sewn, smooth screen surface, high opening rate.
Specifications of Stainless steel centrifuge sieve screen basket:
Model NO. | Screen Area(m2) | Sieve hole size (mm) | Seam Size (mm) | Screen Hole (T/D) | Screen Slot (T/D) | Inlet pulp consistency (%) | Motor Power (Kw) |
ZNS0.3 | 0.3 | Φ1.6-Φ3.5 | 0.1-0.55 | 50-80 | 30-50 | 1-4 | 22-55 |
ZNS0.6 | 0.6 | Φ1.6-Φ3.5 | 0.1-0.55 | 90-160 | 60-100 | 1-4 | 30-75 |
ZNS0.9 | 0.9 | Φ1.6-Φ3.5 | 0.1-0.55 | 135-250 | 90-150 | 1-4 | 37-90 |
ZNS1.2 | 1.2 | Φ1.6-Φ3.5 | 0.1-0.55 | 180-320 | 120-190 | 1-4 | 45-110 |
ZNS1.5 | 1.5 | Φ1.6-Φ3.5 | 0.1-0.55 | 200-380 | 140-230 | 1-4 | 55-132 |
ZNS2 | 2 | Φ1.6-Φ3.5 | 0.1-0.55 | 260-500 | 220-300 | 1-4 | 75-160 |
ZNS3 | 3 | Φ1.6-Φ3.5 | 0.1-0.55 | 400-700 | 300-450 | 1-4 | 90-220 |
ZNS4 | 4 | Φ1.6-Φ3.5 | 0.1-0.55 | 500-1000 | 350-730 | 1-4 | 132-280 |
