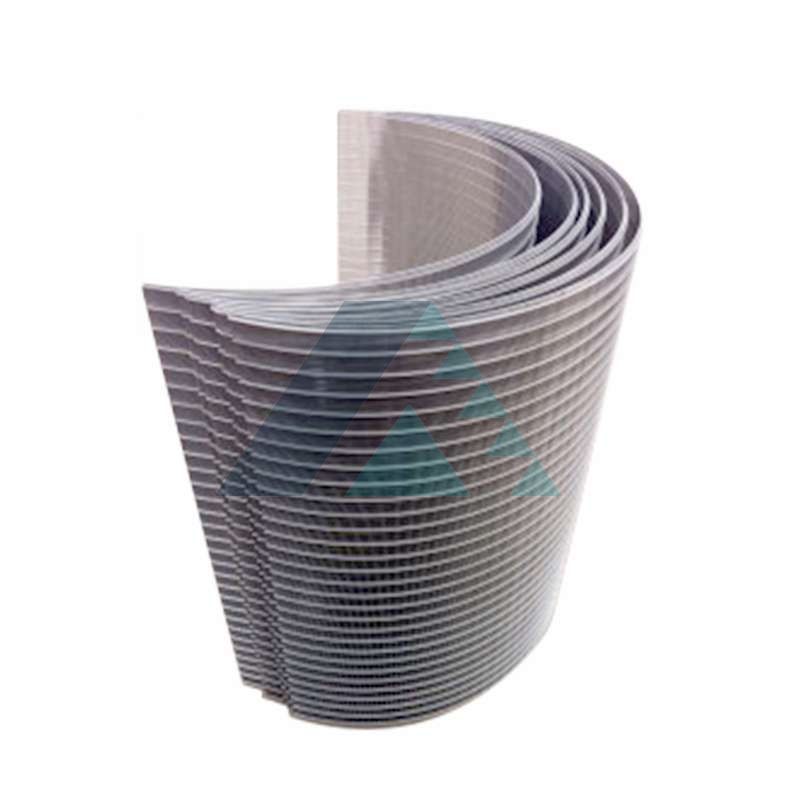

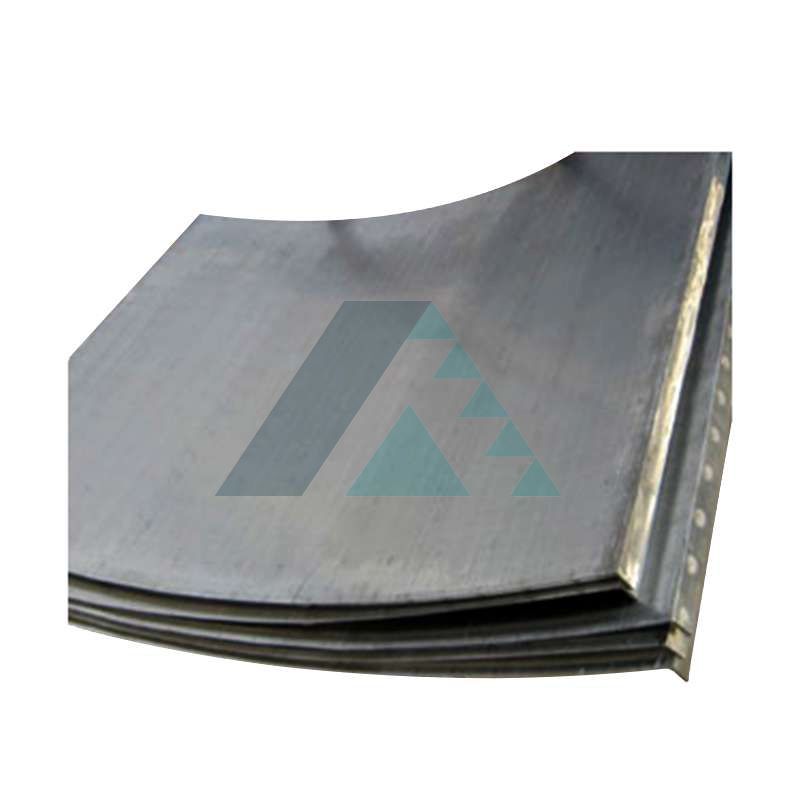

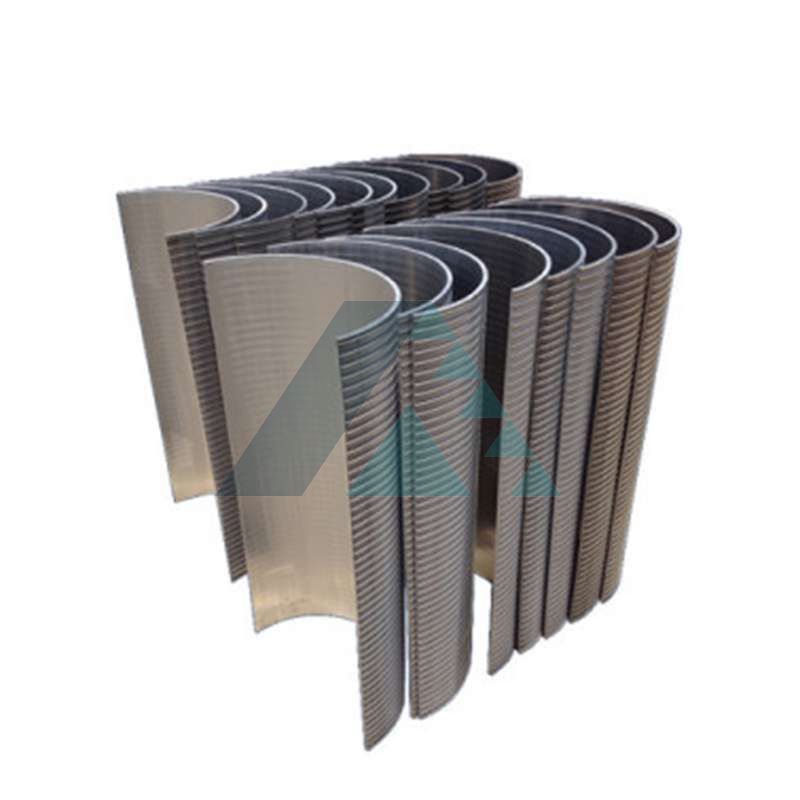

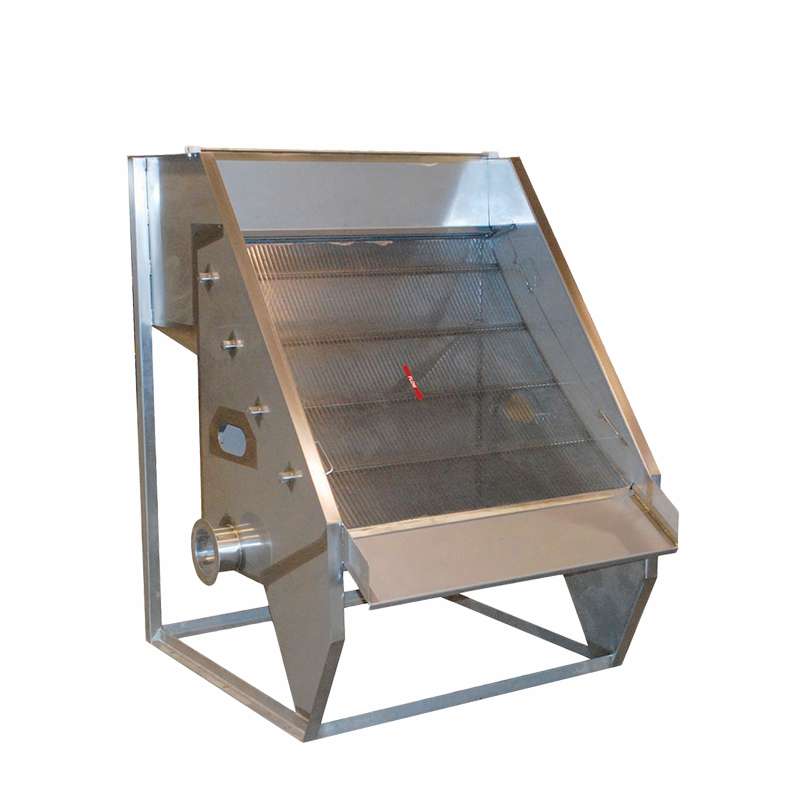

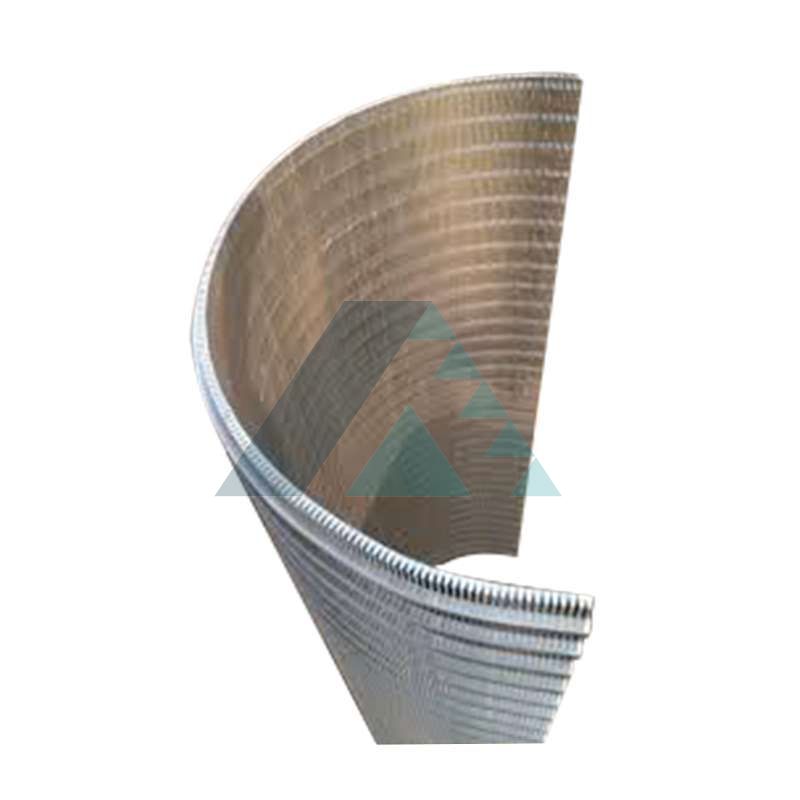

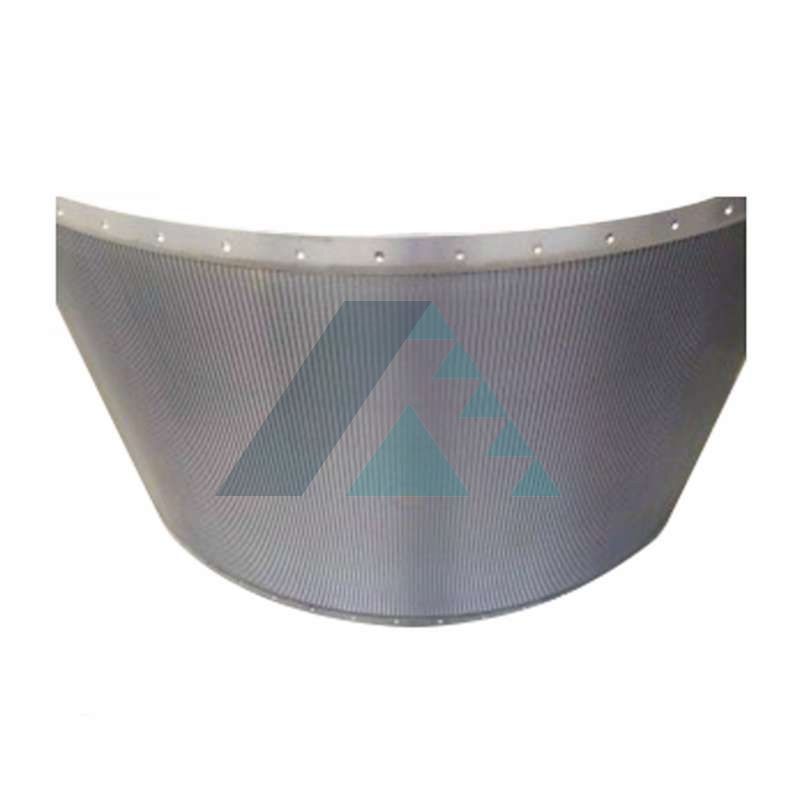

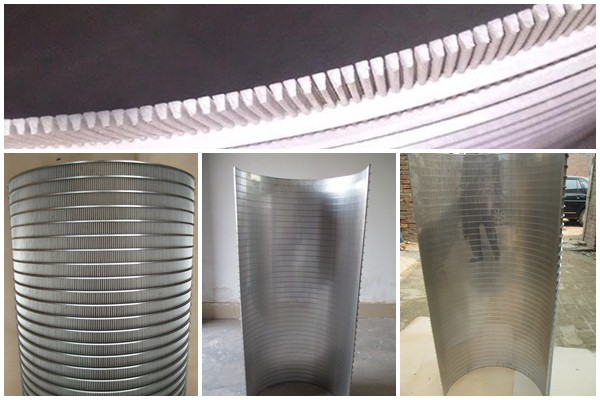

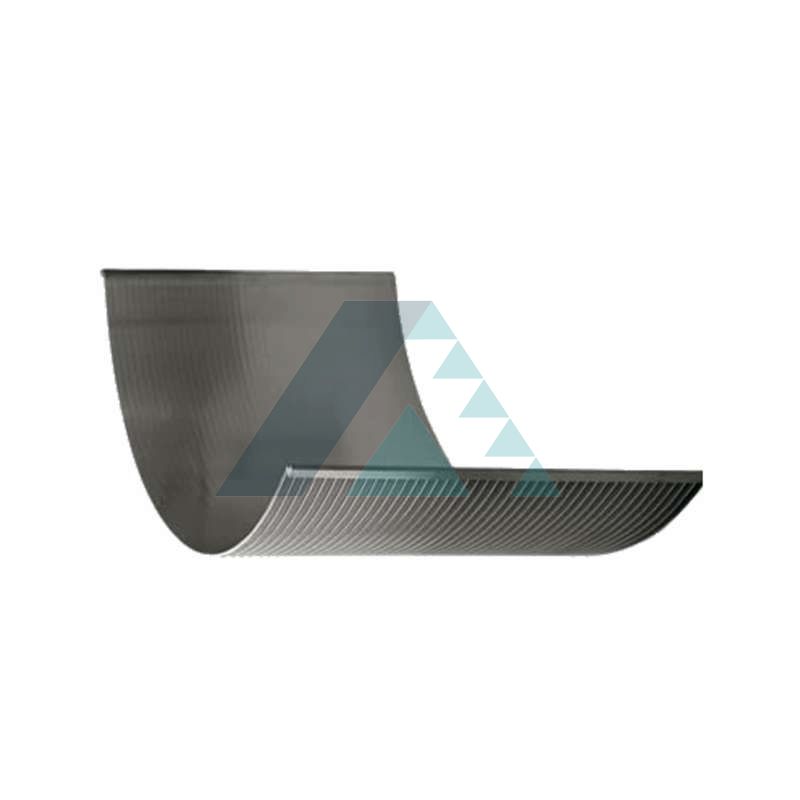

Wedge wire sieve bend arc screen plate also known as side hill screens, parabolic screens, run-down screens, gravity screens, and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, wastewater cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery
Product Details

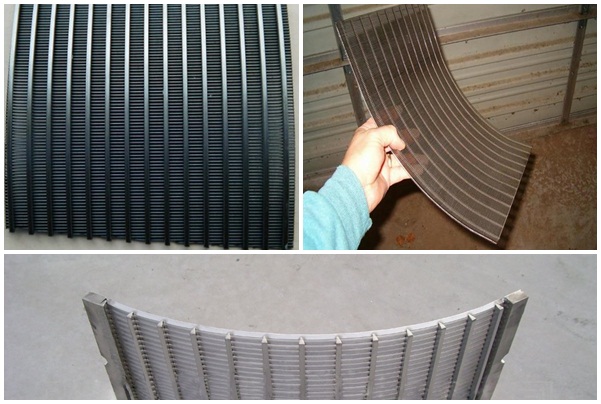

Wedge wire sieve bends arc screen plate also known as side hill screens, parabolic screens, run-down screens, gravity screens, and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, wastewater cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
Feature of Wedge wire sieve bend arc screen plate
• Sharp cutting action
• Maximum open area and drainage
• Wide range of profiles available
• Abrasion-resistant 304 stainless steel
and corrosion-resistant 316 stainless
steel standard supply
Application of Wedge wire sieve bend arc screen plate
applications such as:
Civil Aggregate
CIL Process
Dewatering
Trash
Scalping
Sizing
Classification
Wastewater
Food processing
Specifications of Wedge wire sieve bend arc screen plate:
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 microns (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod | 1.5x2.5 | 1.5x2.5 | 1.5*2.5 | 2x3 | 3*5 | 3x5 | 3x5 |
Angle | 90°，120°，140°，150°，160°, etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm, or depending on the size of the screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame, etc, according to your request. | ||||||
Note | Customized according to the requirement | ||||||
