Wedge wire arc curved screen plate is called wedge wire hillside screen, sieve bend screen and DSM screen, etc, are widely used in various industries, especially suitable for low maintenance applications as sieves and filters.
Product Details

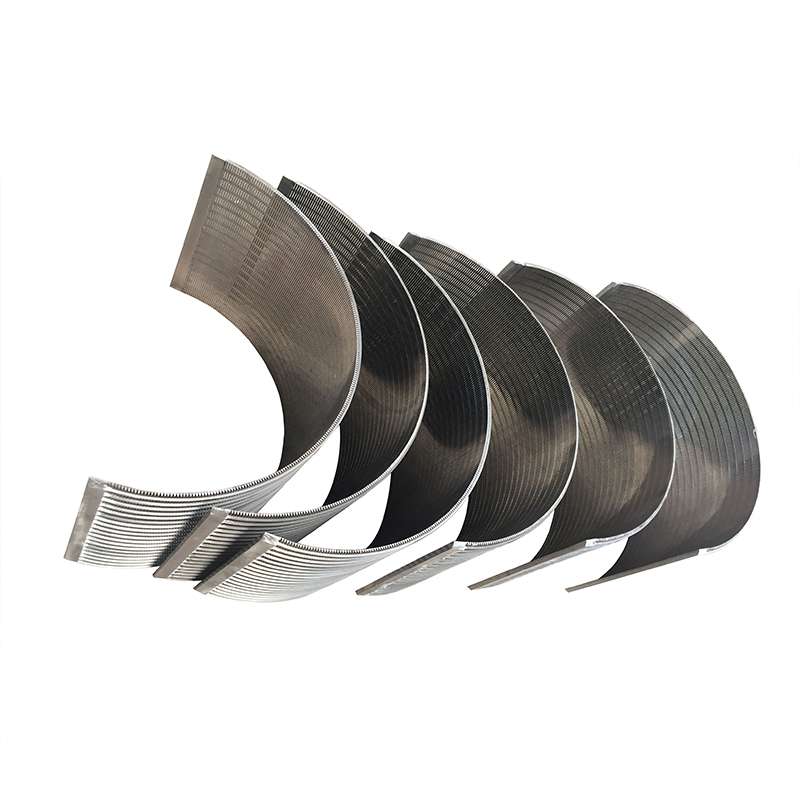

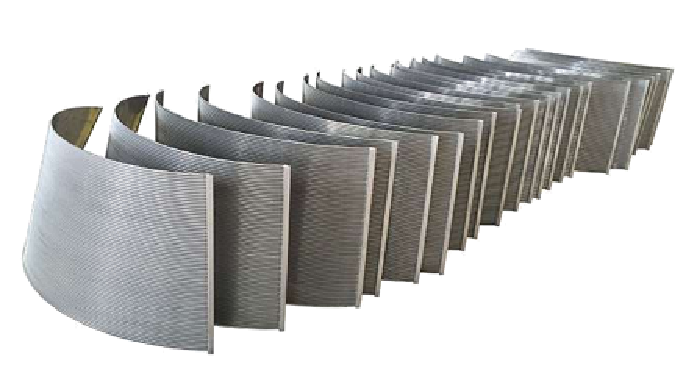

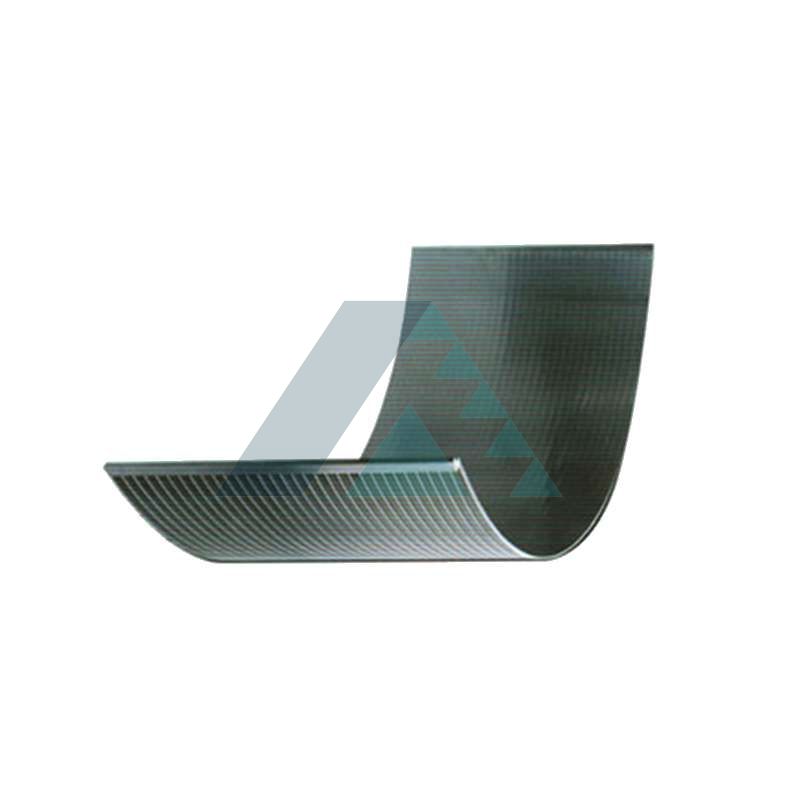

Arc Curved Sieve Bend Screen--a uniquely designed stainless steel filter screen with a tilted surface, making it an ideal filtering material for conveyor screening processes. These wedge wire sieve bends are crafted as curved mesh panels, catering to diverse industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, the Starch industry for fiber removal, Cement, Industrial & Effluent Treatment, and more.
The Arc Curved screen stands out for its exceptional reliability and cost-effectiveness, especially suited for low-flow conditions and smaller plants. Its innovative design and efficient performance make it a valuable asset in various industrial applications, ensuring optimal separation and filtering processes.

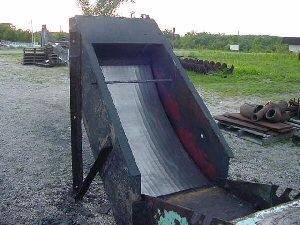

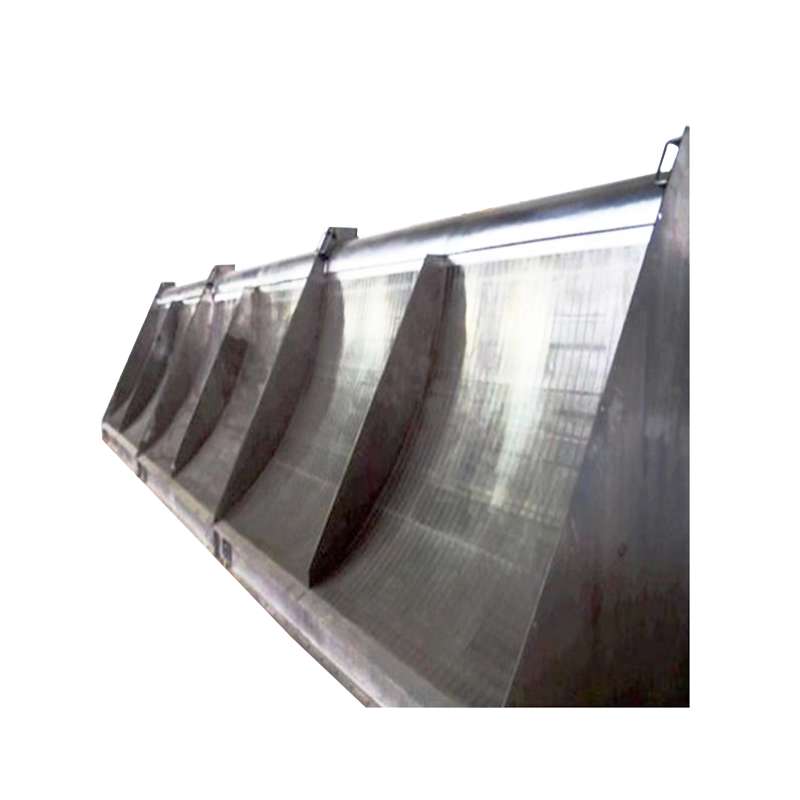

Comprising an arc curved sieve bend screen mounted in a frame with the screen openings perpendicular to the flow, the arc curved screen demonstrates higher capacity owing to the forces exerted as materials flow against its curved surface. So the arc curved screen has greater capacity than a flat screen panel.
As the slurry flows down the sieve bend screen, each wedgewire's sharp leading edge skillfully slices away a thin layer of water and small-particle solids. Meanwhile, larger particles continue down the screen surface, with a significant amount of liquid removed in the process.
This innovative design and efficient operation make the Arc Curved sieve bend screen a standout choice for numerous industries, enhancing separation and dewatering processes for optimal performance.
- Sugar Processing
- water/wastewater treatment
- Coal Mining & Quarrying
- Mineral Processing
- Cement
- Industrial & Urban Effluent Treatment.
Arc Curved Screen Filters | |||||||||
Technical | Specification | ||||||||
SieveWidth（mm) | 605 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | ||
Sieve Length(mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | ||
Sieve angle(mm) | 50° | 50° | 50° | 50° | 50° | 50° | 50° | ||
Flow rate(m3/h) | 15-25 | 45-85 | 55-110 | 65-130 | 80-160 | 100-180 | 120-220 | ||
| Noted | All size and types can customed design | ||||||||
