Custom Coanda Screen Sale

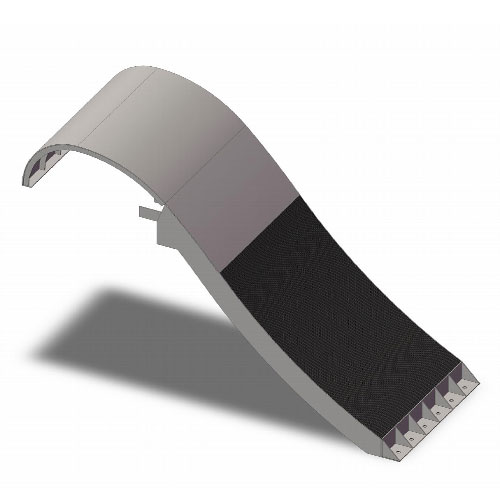

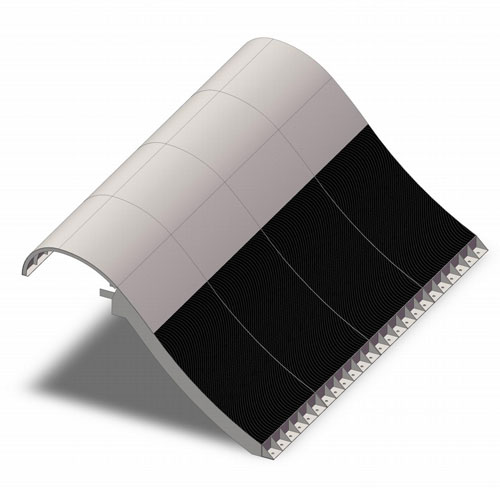

Coanda Screens is a self-cleaning screen with no moving parts that have been successfully used for debris and fish exclusion in a wide range of applications across the world including hydropower plant intakes, water conservation schemes, and irrigation programs. It uses a title wedge-wire screen partly down an Ogee-shaped slope. A solid acceleration plate forms the ogee slope above the screen and creates the high sweeping velocities necessary for self-cleaning.

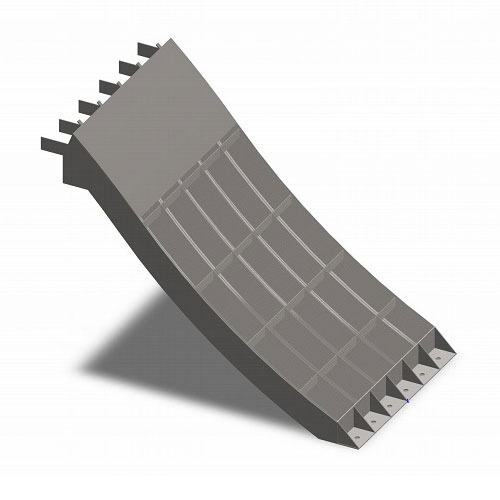

Assembly features of Coanda screen

Approach plate: deliver water screen at proper speed and direction

screen: cut the bottom layer of water using tilted wedge wire and has a Removable screen panel for maintenance/replacement

Mounting angle: fastens assembly to structure and includes leveling bolts for quick adjustment during installation

Benefits of our Coanda screens

1. Approach Plate: delivers water screen at proper speed and direction

2. Screen: Cuts bottom layer of water using tilted wedge wire and has removable screen panel for maintenance/replacement

3. Mounting angle: Fastens assembly to structure & includes leveling bolts for quick adjustment during installation

4. A reliable supply of screened water increases hydro plant operating time, output, and efficiency

5. Self-cleaning properties result in a largely maintenance-free operation saving time and associated costs

6. No mechanical moving parts eliminate the need for costly maintenance and a power supply

7. Highly resilient screen construction is resistant to abrasive material and corrosion

8. Each option is available in all-welded fabrication, or in a plastic box structure for lighter duty applications.

9. Mounting tabs, removable screen panels,  and simple outlet connections make installation quick and easy.

Applications of Coanda screens:

Fisheries, Fish Farming.

Hydro Intake Screens.

Micro Herbs / Veg.

River Screening.

Irrigation.

etc
