Category: Wedge Wire Screen Rotary Cylinder Trommel
Material: stainless steel 304,304L,316,316L,321,430 or as per your request.
Application: water-treatment, beer brewing, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, refining & petrochemical
Product Details

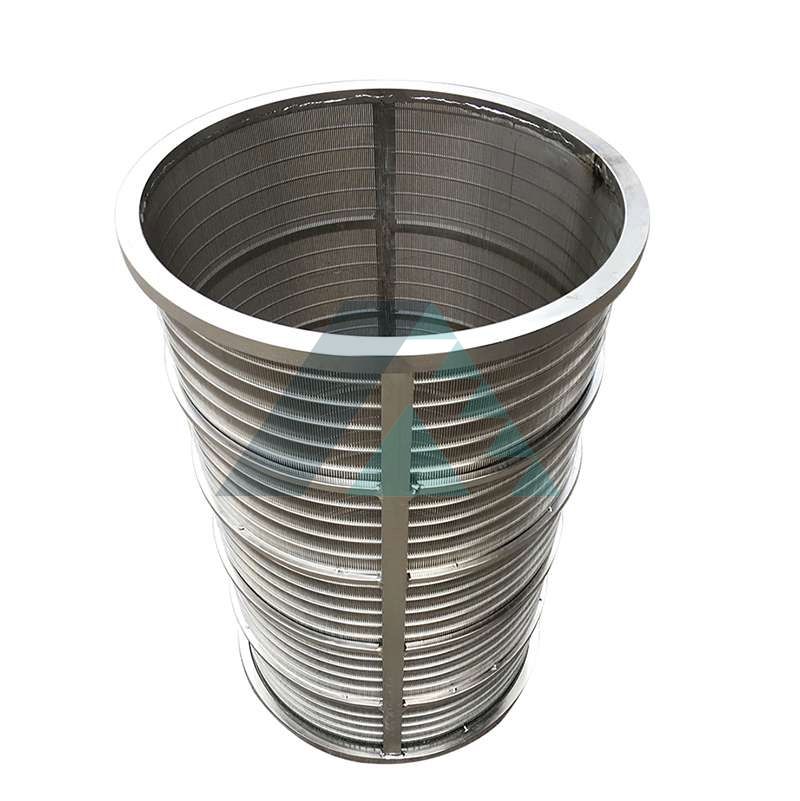

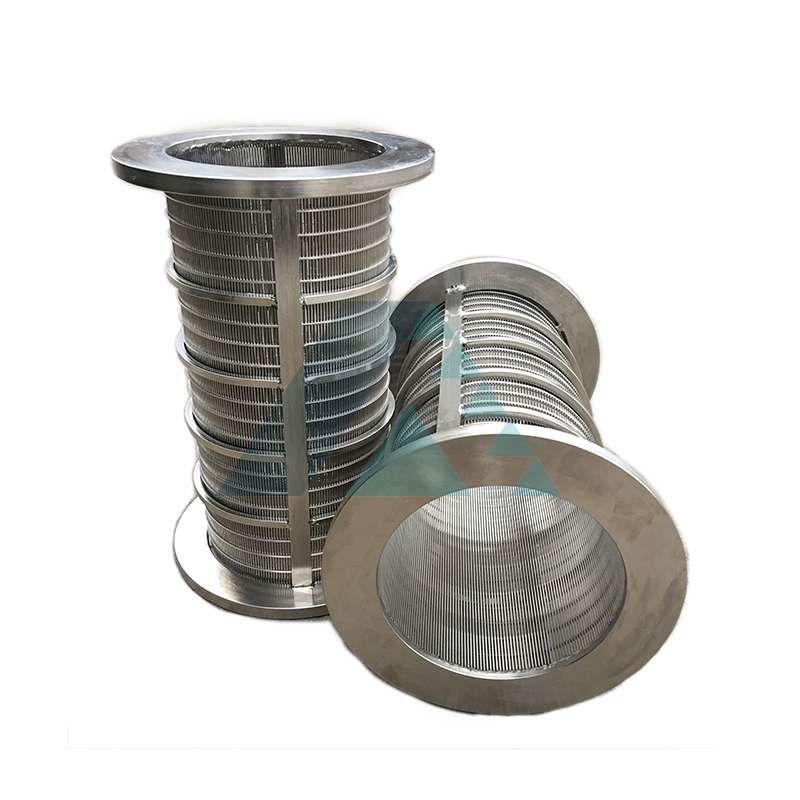

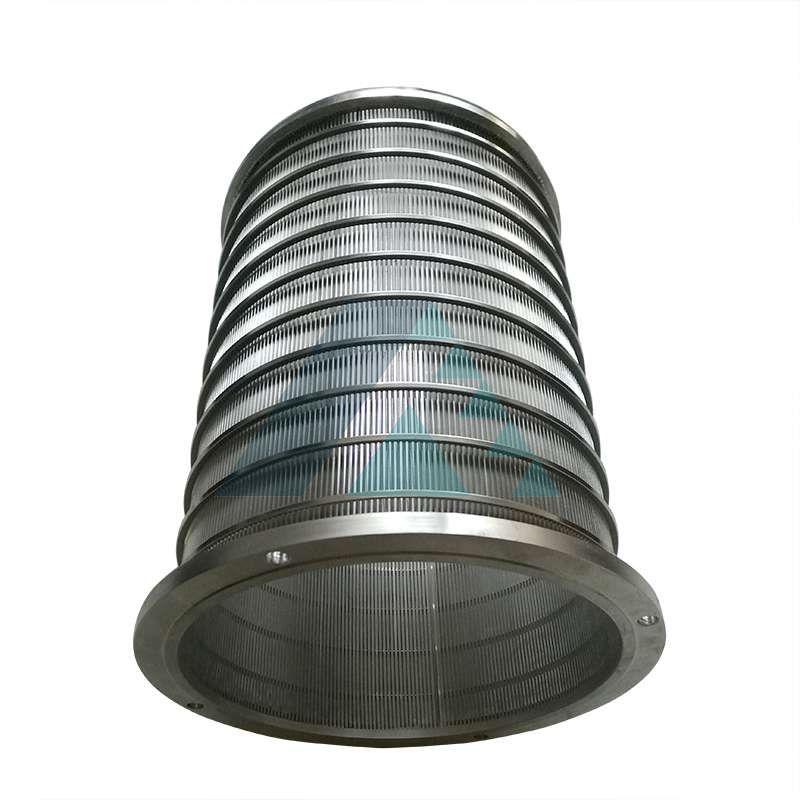

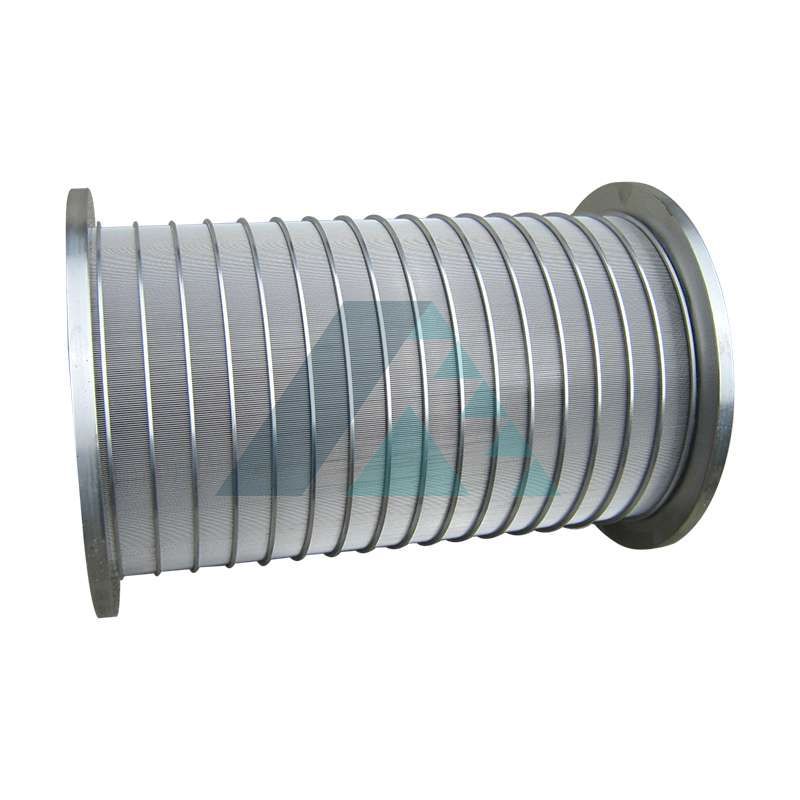

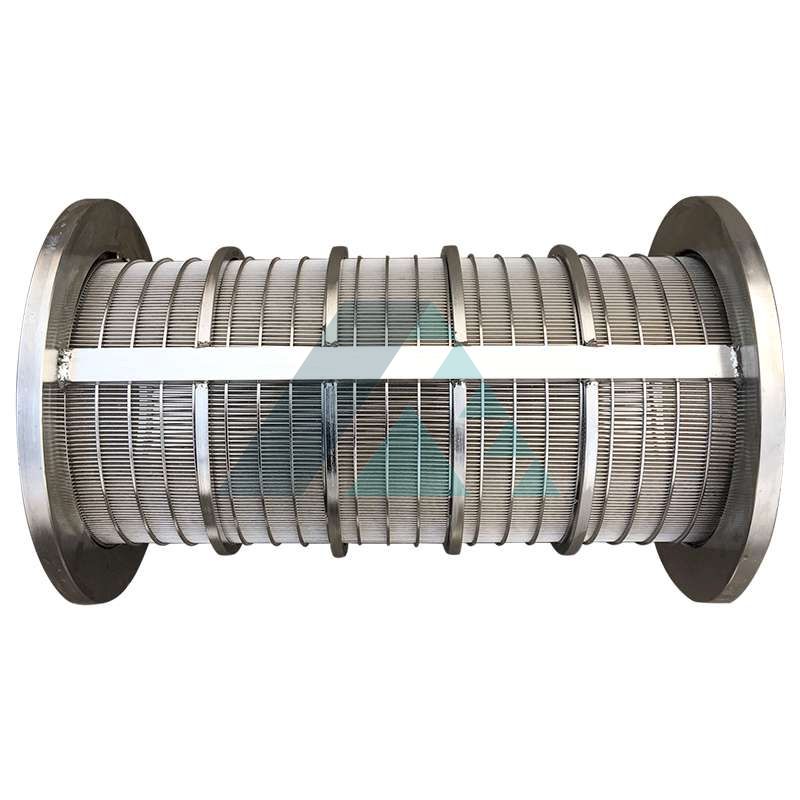

Conical and Cylindrical screen baskets can be tailor-made to suit the customer's requirements and maximum efficiency.
We offer a range of wedge wire cylindrical screens including water well (bore) screens, open water intake screens, suction strainers, sand spears, trommel screens, and media retention screens.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||
| OD Range | According to request and the actual flange and strengthen bar | ||||
| Normal ID | 176mm, 200mm, 230mm, 255mm. According to request | ||||
| Normal Length | 600mm, 602mm, According to request | ||||
| Normal Slot | 0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. | ||||
| Slot Direction | Radial Direction | ||||
| Wedge Wire | 0.75x1.5 | 1x2 | 2x3 | 2*4 | 3*5 |
| Support Rod | 1.5x2.52x3 | 1.5x2.52x3 | 2x32x43x53x6 | 2x43x53x65x6 | 3x53x65x6 |
| End Finishing | Flange, Metal Ring, etc | ||||
| Note | Customized According To Requirement | ||||
_ Strainer Baskets
_ Filtering Elements
_ Rotary drum Screens
_ Dewatering Screens
_ Pressure Screens
_ Screw press Screens

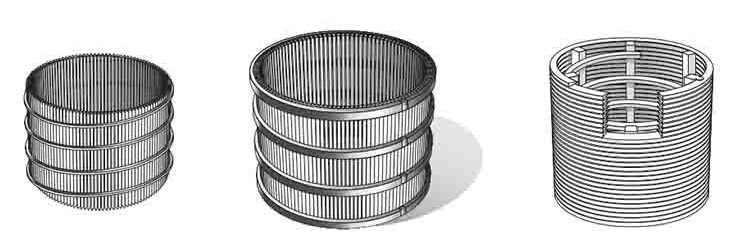

Our cylindrical screens may be configured to enable outside-to-inside flow (standard configuration), where the wedge wire head faces the outside of the screen, or, for screens with a minimum ID of 250mm, inside-to-outside flow (reverse-wrap configuration), where the wedge wire head faces the inside of the screen.
