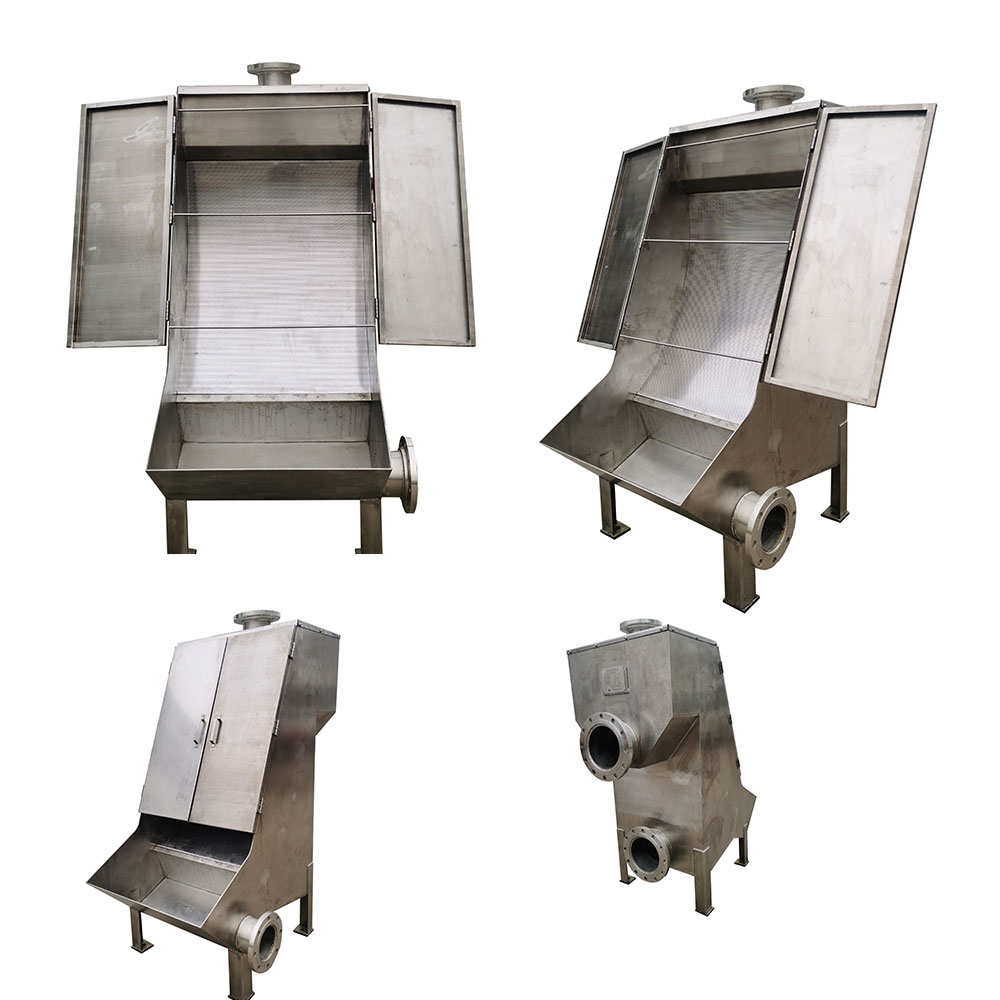

Static Screen

The static sieve is specially indicated for solids separation the static sieve is specially indicated for the separation of suspended solids inside liquids. This separation is accomplished in a fast way, without energy support, with almost absolute absence of maintenance and in conditions that make easier than in any other system the transportation of these solids, because they come out already dripped.

Thanks to this easiness and because of the advantages that its utilization can offer, it is adequate in many installations, it allows the utilization of solids that were flushed away in the wastes, obtaining profitability and the problem of reduction of wastes is solved at the same time.

Because of the uses its utilization can offer, it is adequate in many installations.

CHARACTERISTICS

Placed as primary treatment in treatment plants, it allows a better yield of the rest of the plant, as well as a smaller operating cost.

This equipment, whose screening fineness is between 0.25 mm and 3.00 mm, is generally used in wastewater.

They are also of correct application in industrial wastewaters.

Static sieves have an incorporated screen, constituted by horizontal bars in special profile built-in stainless steel of Aisi 304 or 316 quality.

Water is distributed in the upper part of the screen, whose inclination over horizontal diminishes progressively from top to bottom between 65 º y 45 º approximately. Effects of separation and dripping of solid matters are obtained successively.

GENERAL CHARACTERISTICS

Metallic cabinet.– the static sieve consists of a metallic cabinet built-in stainless steel of Aisi 304 or 316 quality, which is of use for water conduction and channeling, as well as the screen’s support.

Filtrating screen.- specially designed for such application, built-in stainless steel of Aisi 304 or 316 quality. (Curved or straight type depending on installation).

Finishing.– standard finishing is Avesta rust removal welding and hot pressurized water jet, as optional a crystal ball jet is offered.

APPLICATIONS

Pretreatment and screening of,

Wastewaters.

Industrial and urban wastewaters.

Canned food.

Paper industries.

Sugar industries.

Ceramic industries.

Slaughterhouses

Etc…
