Multi-Layer Sintered Wire Mesh Filter Disc,Tube

Jan. 05, 2022
Share:

Stainless Steel Sintered Mesh Has High Strength and Filter Precision

Stainless steel sintered mesh is made of the multi-layers woven metal mesh by special laminated pressing and vacuum sintering process, which has high mechanical strength and rigidity.

With excellent corrosion and accurate filter precision, sintered wire meshes can be made into various filter elements.


Stainless steel sintered wire mesh Filter Specifications

Materials: 304, 316L or customized.

Thickness: 1.7 mm, 2.5 mm, 3.5 mm.

Weaving type: plain weave, twill weave, dutch weave.

Layers: three layers, five layers, or multilayers.

Our five-layer laminated board is the standard and widely used sintered wire mesh. Place the monolayer subtle wire mesh between the two layers of thicker square woven meshes, and then put them into the two layers of strong Dutch woven metal wire meshes, sintering together to form a sold plate.

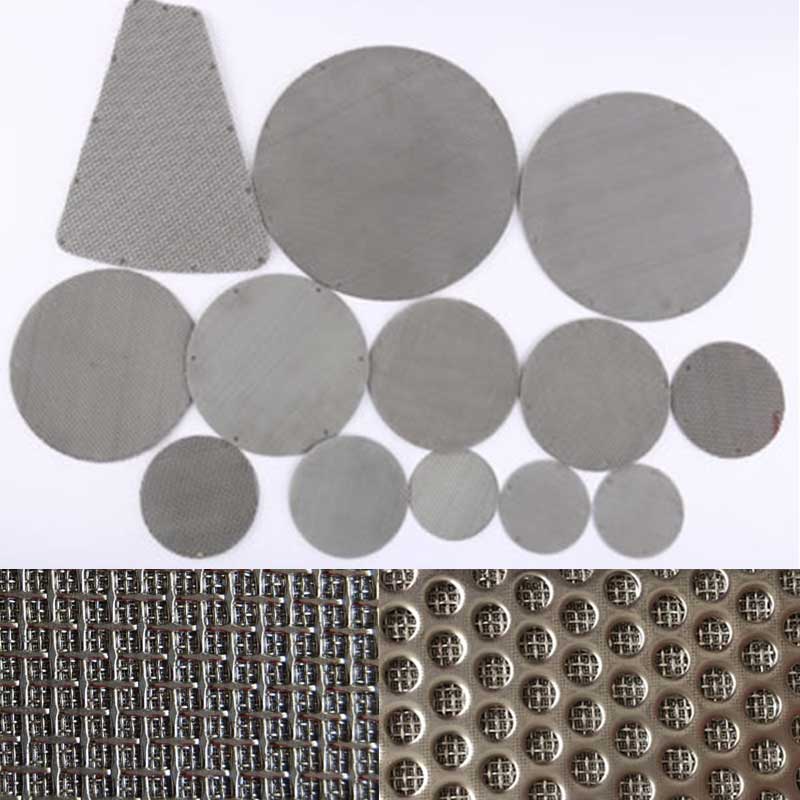

Filter shapes: rectangular sheet, round, ring, tube, cone, candle, pleated, etc.

Filter rate: 0.2 μm–300 μm.

multi layer Sintered wire Mesh filter disc tube hot sales

Sintered wire mesh filter elements applications:

Different shapes of filter elements;

Disperse cooling material in a high-temperature environment.


Besides sintering solely mesh, we can also combine a mesh with a perforated plate.

In this case, the function of the perforated plate is a supportive one.

The mesh has much higher pressure resistance and higher mechanical strength.


Sintered filters

Other than sintered plates, we are also able to supply sintered filters, which contain sintered mesh.

Sintered filters are used in the (petro-) chemical industry, food industry, water treatment, etc.


Do not hesitate to contact us for an offer.
