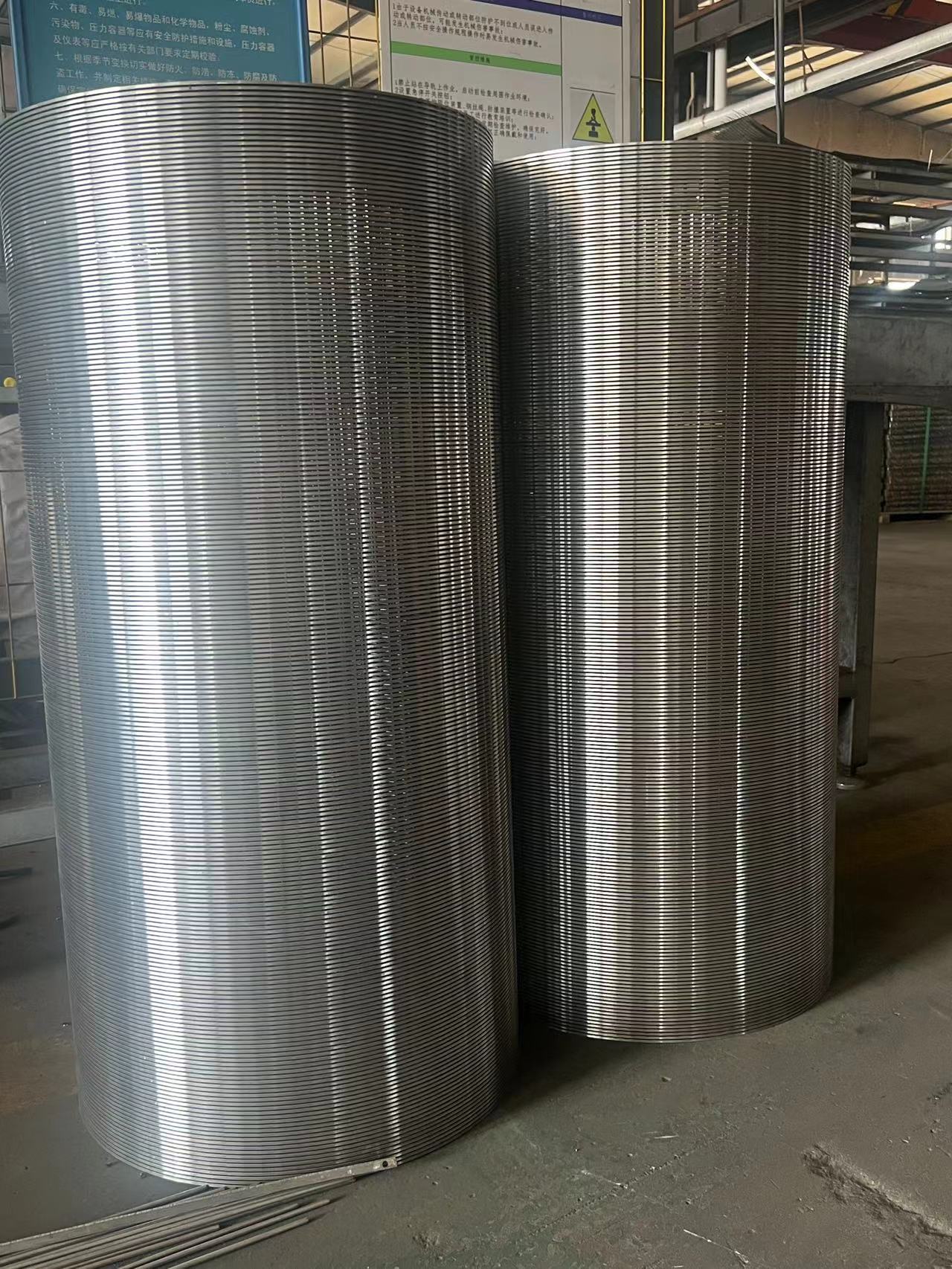

Wedge Wire Screen Cylinder for Liquid Solid Separation

Wedge wire screen cylinders, also known as rotary screen drums, offer efficient liquid/solid separation and filtration capabilities. Cylindrical wedge wire is one of the popular forms of v-wire filters applied for sizing and water treatment. Materials are commonly ss 304 and ss316,ss316L, ensuring durability and resistance to corrosion in demanding applications.

Introduction to Wedge Wire Screen Cylinders

Wedge wire screens are designed with precision-engineered V-shaped wires that are resistance welded onto support profiles. This V construction method allows for the creation of continuous slot openings, which are crucial for maximizing open area and enhancing filtration efficiency compared to traditional slotted pipes.

Advantages of Wedge Wire Screen Cylinders

Increased Open Area: The continuous slot openings of wedge wire screens significantly enhance open area, leading to reduced energy consumption and increased water flow rates. This efficiency improvement is crucial in applications requiring high throughput and minimal pressure drop.

1. Reduce energy consumption and increase water flow.

2. Reduce erosion of entry surfaces and increase well life.

3. Allow a uniform and efficient well development.

4. Reduce significantly potential pump damage and subsequent maintenance costs.

Wedge wire is a welded stainless steel construction mainly used for filtration, separation and retention of media. It is made of surface profiles, usually V-shaped, that are resistance welded onto support profiles.

The distance between the surface profiles is controlled very accurately and forms the slot opening through which the filtrate flows.

Almost all shapes and sizes can be developed according to the customer's requirements, starting from two basic forms:

1. Slot tubes – radial external wire

2. Flat screens

Applications of Wedge Wire Screen Cylinders

1. Water Intake Screens: Used in water treatment plants and industrial facilities to prevent debris and aquatic organisms from entering intake systems.

2 Well Screens: Essential for oil and gas extraction, providing reliable sand control and preventing clogging of wellbores.

3. Filtration and Separation: Deployed in various filtration processes to separate solids from liquids, ensuring product quality and process efficiency.

4. Resin Traps and Strainers: Used in chemical processing to capture resin beads and other particulates, preventing equipment fouling and optimizing resin regeneration cycles.

Manufacturing Process and Quality Control

Manufacturing of wedge wire screen cylinders involves precision welding of V-shaped wires onto support profiles, ensuring accurate slot dimensions and structural integrity. Quality control measures are stringent to guarantee that each screen meets rigorous performance standards. This includes dimensional accuracy, weld integrity, and resistance to corrosion.

Custom Design Capabilities

Customization options for wedge wire screens are extensive, with manufacturers offering tailored solutions based on specific customer requirements. This includes varying slot sizes, screen diameters, and profile configurations to optimize performance in diverse operating conditions.

Case Studies and Product Quality

Real-world case studies demonstrate the efficacy of wedge wire screen cylinders in challenging environments. These examples highlight the durability, efficiency, and cost-effectiveness of using wedge wire screens across different industries.

In conclusion, wedge wire screen cylinders represent a versatile and efficient solution for liquid/solid separation and filtration applications. Their superior design, which includes continuous slot openings and robust construction materials, ensures enhanced operational performance and longevity in demanding industrial environments. As industries continue to evolve, the role of wedge wire screens in optimizing processes and reducing maintenance costs remains pivotal.

For inquiries or further information on wedge wire screen cylinders, manufacturers offer comprehensive support to meet specific project needs and ensure reliable performance over the long term.
