Rotary Drum Screen - The Key to Efficient Wastewater Treatment Filtration

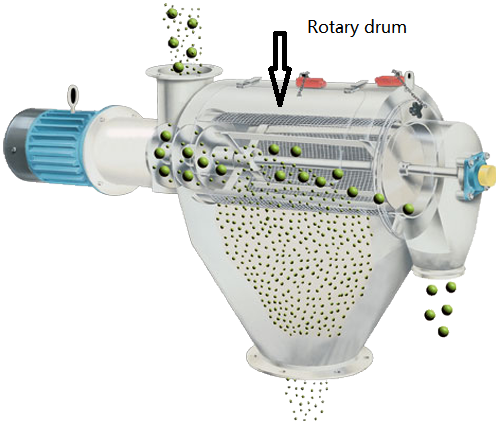

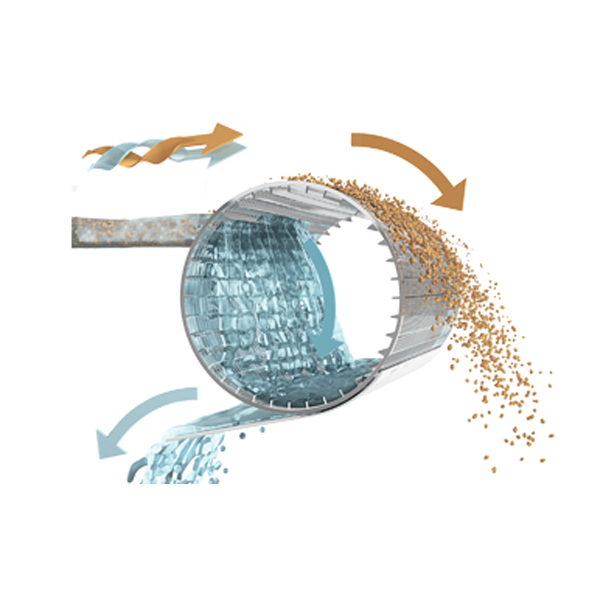

What is a rotary drum screen?

A rotary drum screen, also known as a rotary sifter, is an essential piece of equipment in municipal and industrial water treatment processes. It is the second pre-treatment process used in wastewater treatment plants after screening. The rotary drum screen filter is generally placed upstream of the system, at the discharge of the pumping station that collects the wastewater.

The rotary drum screen is the best solution for the fine treatment of industrial and domestic wastewater treatment. It is one of the most demanded types of equipment for the mechanical treatment of wastewater due to its high efficiency. The screen can remove even complex fibrous impurities such as wool and hair from drains, making it an indispensable solution for small and medium-capacity wastewater treatment plants.

The closed design and high capacity of the screen in a compact enclosure make it an energy-efficient solution for modern wastewater treatment plants.

The rotary sifter can collect mechanically fine and coarse debris such as trash rack debris (RAG), thick sands, or grease, preventing waste from mixing with mud and interfering with the downstream process.

The rotary drum screen ensures a fine screening based on the selected mesh size, with the most commonly used sizes ranging from 1 mm.

There are two types of rotary drum screens commonly used:

with wedge wire screen

with perforated metal sheet

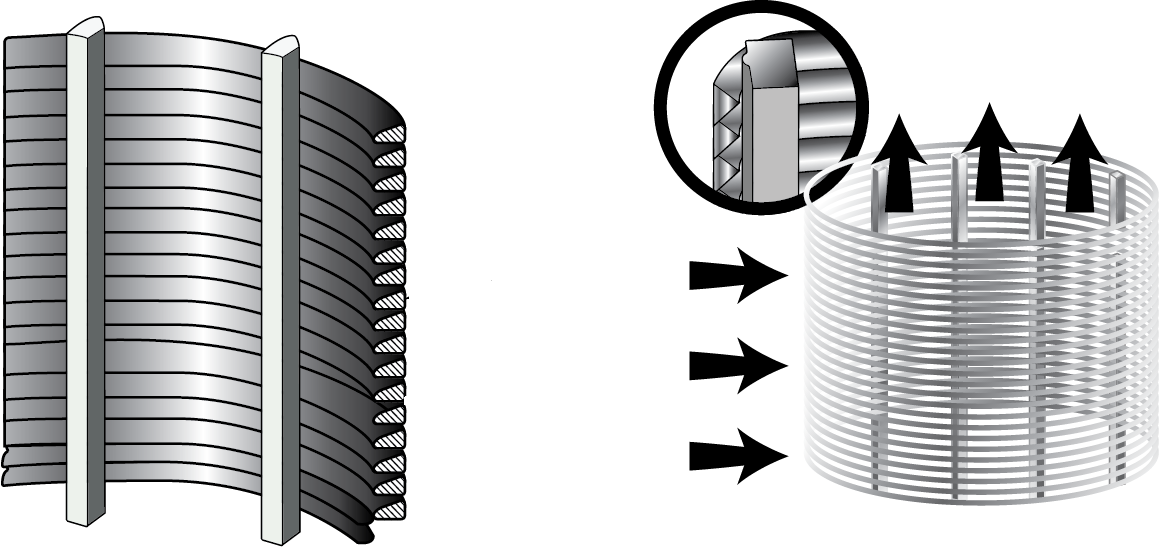

Wedge wire drum screens offer three benefits:

the best transition coefficient

a shape that allows the finest particles to slide inside without blocking the slots

a fully enclosed screen design that prevents the spread of unpleasant odors and dangerous gases.

Wedge wire drum screen filters are widely used in many activities, including wastewater pretreatment for municipal and industrial wastewater, wastewater treatment with high content of solids including fibers, wool, feathers, and films, effluents from paper mills, textile industry like dyeing and bleaching, chemical and pharmaceutical industry, and industrial and domestic wastewater treatment plants.

This filter is highly recommended for membrane bioreactor (MBR) treatment plants.

Screening is an important step in wastewater treatment to remove large waste from wastewater. It involves separating large materials that could interfere with the effectiveness of subsequent treatments and protecting the structures at the beginning of the plant from damage that can be caused by large objects in the wastewater flow. Screeners are very frequently installed on wastewater treatment plants.

Screening wastewater treatment plant effluent is crucial as it allows sorting out a certain amount of debris to avoid having large waste in the mud and protects the downstream process, i.e., the entire wastewater treatment plant. With a drum screen, there will be no more pump clogging and much less filthy crusting on the primary clarifier. It is, therefore, an essential step, especially if the downstream processes use filters, for example.

YUANLV is a wastewater treatment Rotary Drum Screen manufacturer factory that provides filters as per your project requirements. For more details, please contact us now and have a cooperation with us.
