Nozzle Screen for False Bottom Filter

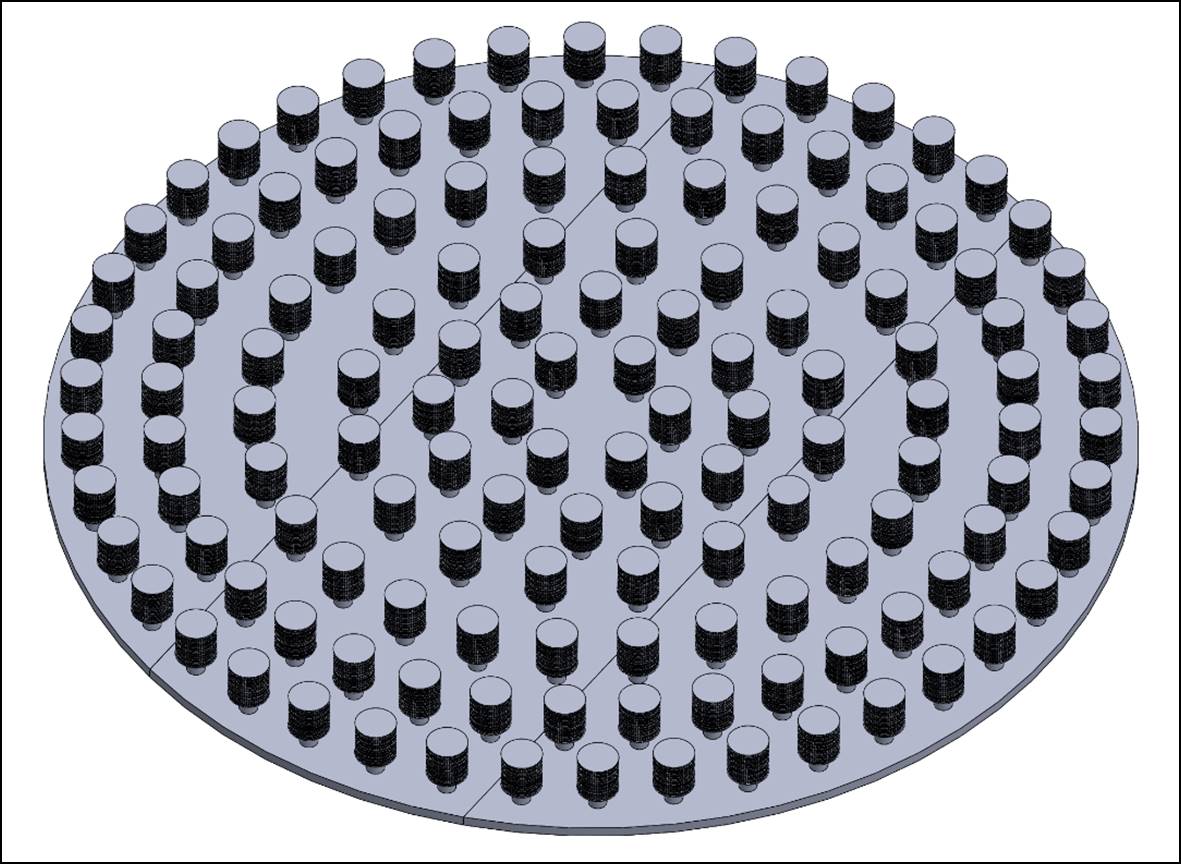

Media Retention Nozzle,or Wedge wire screen nozzle , in stainless steel 316, for high flow rates to be placed on plate or false bottom filters.

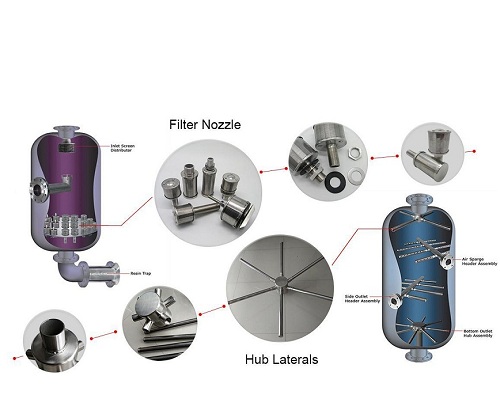

Distributors with lateral pipes equipped with wedge wire nozzles or orifices are the simplest systems in Granular Media Filters.

Johnson Media Retention Nozzles are used for the retention of granular media in water treatment equipment. These media can be of any type, such as: activated carbon, silica sand, ion exchange resins, green sand, MTM, Birm, pyrolusite, among others.

In addition to the retention function, the micro-slotted nozzles provide good drainage and adequate flow distribution, both in equipment working under pressure and in those working by gravity.

The Johnson type element through which the fluid flows, has a “V” shaped cut, with the most closed part towards the outside of the nozzle. This design prevents clogging.

The microslot is continuous and has a total flow area of approximately twice the cross-sectional area of the connection nipple. This means that the microslot does not constitute a restriction to flow and, therefore, causes minimal pressure drop.

YUANLV  is the leading manufacturerof nozzle-based filter systems and nozzle screen products in water and wastewater treatment.

 Product Quote

Once we receive your request we will contact you within 6 hours.

1. Standard nozzles

Structurally strong and fully welded, they’re available in male- or female-threaded configurations. These nozzles are ideal media retention devices for use in false-bottom vessels.

2. Economy nozzles

Ideal media retention devices for use in false-bottom vessels, Wedge Wire Screen nozzles maximize open-area flow while maintaining a low profile. They’re easy to install and have a long service life.

3. Toggle Bolt Assemblies

Designed for ease of installation where access below the tube sheet or false bottom is restricted, available in various sizes to match specific tube-sheet holes.

4. Custom Nozzles

Available with various connection types, these custom Wedge Wire nozzles can be fabricated in any configuration to meet your requirements and adhere to customer-designed specifications. .

Can't find the Media Retention Nozzle you need?

We specialize in custom manufacturing. Our sales, engineering and production teams have the experience to manufacture what you need to the highest degree of excellence. Keeping all work in house allows us to offer accuracy and consistency.
