Wedge Wire Lateral Assemblies for Water Treatment

Wedge wire Hub and Lateral Distributors are components of water treatment systems by filtering it on a granular load (sand, activated carbon, ion exchange resin, etc.). Distribution systems are designed to delay the particles of filter material inside the filter housing, prevent them from entering the control valve or leaching into the drainage, as well as for a more uniform water supply to the cleaning system.

Wedge Wire Lateral Assemblies

Ensure the Filtration Accuracy of the Equipment

1. 1. Wedge wire screen laterals assemblies are vessel internals, consist of hub steel pipe with a screen laterals, which can efficiently collect or distribute liquid/gas while preventing the medium from flowing out.

2. 2. Wedge Wire Screen Lateral Assemblies, also called Under Draining Filtering, water distributor, medium collector.

3. 3. We can design wedge wire screen laterals assemblies according to Vessel/ Filter size, flange size, flow rate, medium sizes.

4. 4. At the same time, the middle row device of the wedge wire screen laterals assemblies can be made according to the requirements of a variety of shapes, such as ordinary radial type, fishbone type, T-type, etc. The size of the laterals branch pipe and the hub master pipe can also be designed and produced according to the requirements of customers.

5. 5. Wedge wire screen laterals assemblies widely used in ion exchange, clay and sand filtration, carbon towers and power plant water systems and other equipment.

Screen laterals are key components of wedge wire screen lateral assemblies. Multiple screen laterals are typically connected through hubs or headers by using threaded or flange connections. Screen laterals are primarily made of wedge wire screen tubes and can also be made of perforated steel tubes inside the wedge wire screen tubes. Different component designs of screen laterals allow the lateral assemblies to adapt to different applications and tanks.

Types:

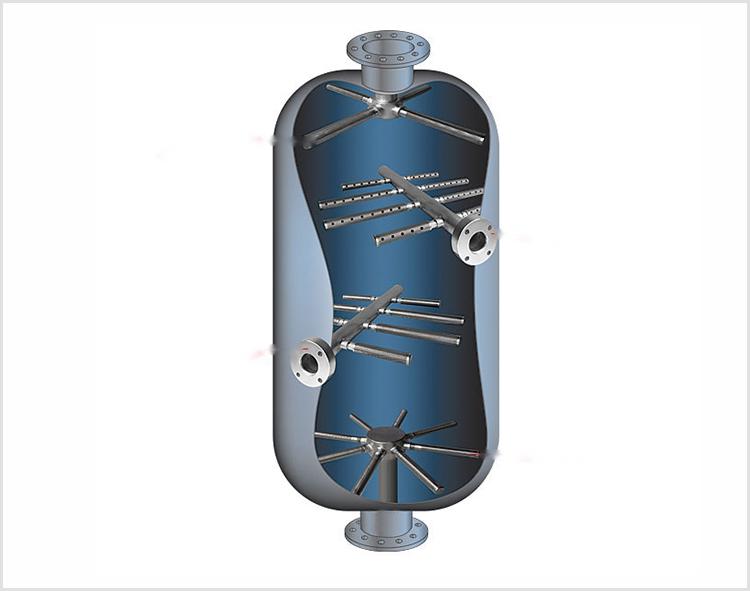

Wedge wire screen laterals assemblies are divided into hub lateral assembly and header lateral assembly based on their installation position and function within the tank.

a. Hub lateral assembly is used at the top or bottom of the tank. Its main role is to distribute and collect liquids at the equipment outlet.

b. Header lateral assembly is used in the middle section of the tank to ensure even distribution and discharge of liquids while preventing media from flowing out.

Application:

Hub Radial Lateral Assembly

Hub radial lateral assembly consists of a central hub and several screen laterals. It is typically installed at the top or bottom of the vessel. It commonly works as hub-lateral distributor at the top of the tank for liquid distribution and serves as hub-lateral collector at the bottom of the tank for liquid collection. Especially in radial flow equipment such as centrifuges, hub radial lateral assembly ensures uniform distribution or concentrated collection of liquids within the equipment.

Hub fish spike Lateral Assembly

The structure of hub fish spike lateral assembly differs from the hub radial lateral assembly. It is mainly used for liquid distribution at the top and liquid collection at the bottom of large tanks.

Header Lateral Assembly

Header lateral assembly is composed of a central header and several screen laterals mounted on both sides of the pipe. It is used in the middle section of the tank to ensure even distribution or collection of liquids within or at the outlet of the vessel.
