We can replace any OEM design on the market by supplying a direct replacement or redesigning the filter nozzle to ensure optimum filter performance if required.
The filter nozzles used must be properly designed to meet your filter specifications. With multiple design options, such as material, mounting style, flow rate capacity, and tailpipes for air scour, YUANLV is sure to have the filter nozzles that will meet your requirements.

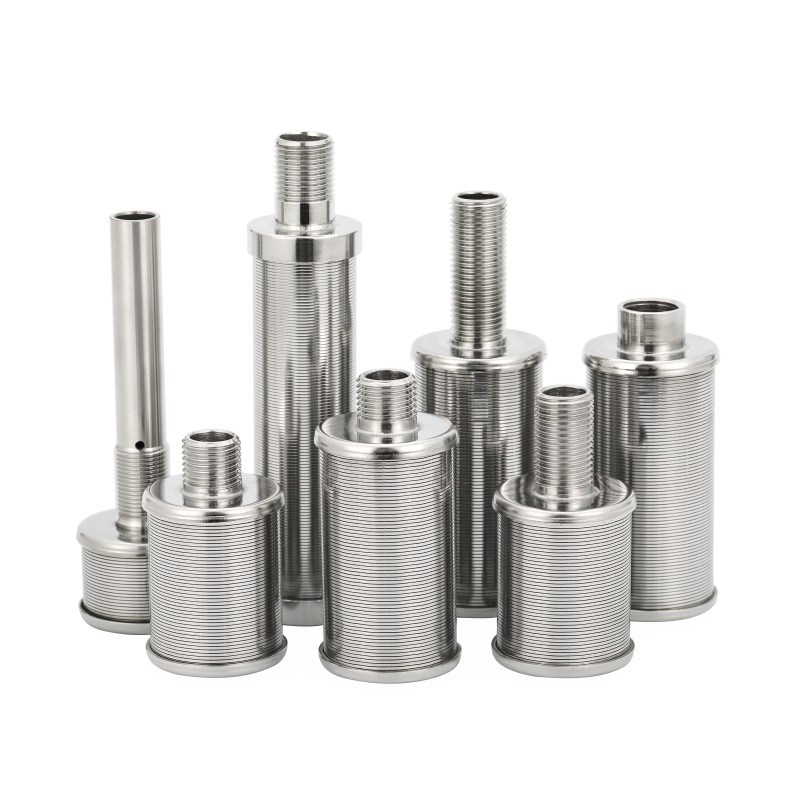

Yuanlv manufactures the broadest line of filter nozzles/strainers, with MILLIONS of combinations of screen slot sizes, thread types, flow characteristics, and air scour tube construction, along with adapters and other accessories.
Wedge Wire Filters are what we do!
Technical expertise is as close as your telephone. Most mega-companies are jack-all-trades that cannot afford to focus on a specific technology. Nozzle-based filtration is and will continue to be our core technology product.
Filter nozzle--Retains the media and also provides the means for good distribution of water and air.

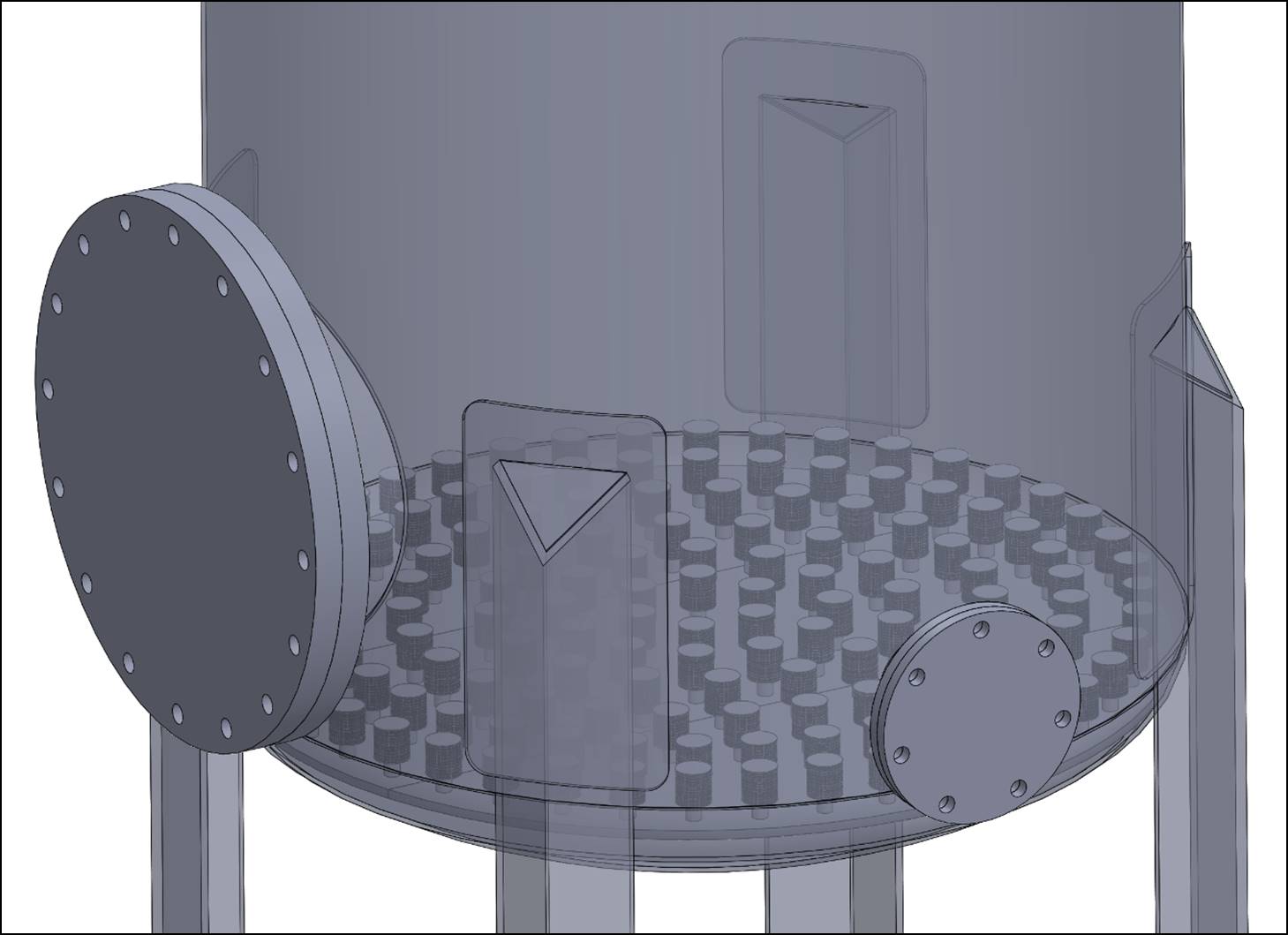

The filter nozzle is applied to the components that retain the media and also provide the means for good distribution of water and air (where used).It is an element that prevents a filtering or purifying granular media from leaving the tank or vessel.
A filter nozzle has three main components: a filter with slots to retain filter media or gravel, a water control hole, and an exhaust manifold with small holes to control airflow (for long tail nozzle caps with wind groove).The function of the tailpipe of a filter nozzle is to control the distribution of air. If air is not used tailpipes are not required.

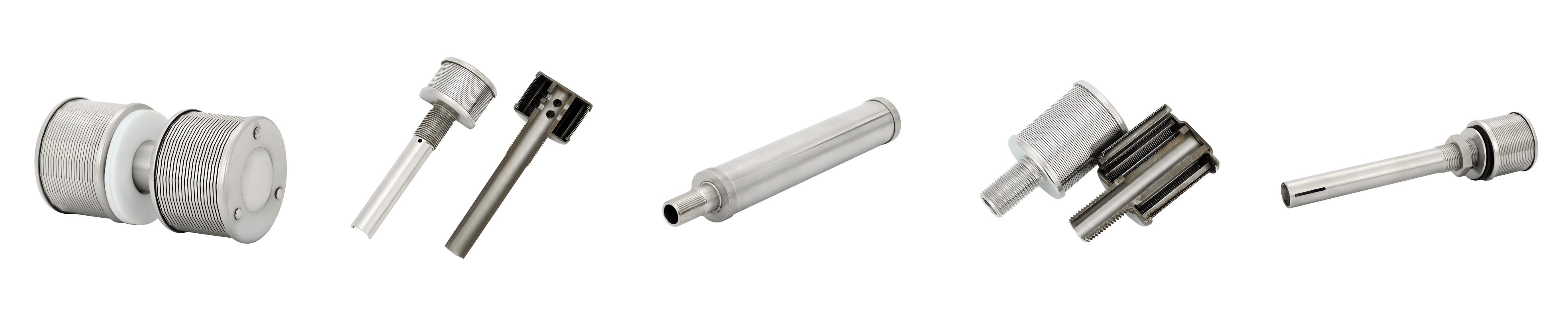

Filter nozzles are divided into three main types:
Type 1: Short-tail filter nozzle, Installation application for steel floors or stainless steel floors with high degree of quality.
type 2: Medium-tail filter nozzle, Installation application for concrete floors with the application of combined air and water filtration.
type 3: Long-tail filter nozzle. Installation application for concrete floor with combined air and water filter washing, need higher water level lowering and more evenly distributed wind.
Filter nozzles can be made of many materials such as plastics and metals and are supplied with auxiliary parts to enable fitting in concrete, metal plate floors and pipe lateral systems.
But We highly recommend stainless steel wedge wire, and we have always provided water filter nozzle made of this material.
First of all, wedge wire filter nozzle is no clogging or plugging as in other conventional screens or filters.

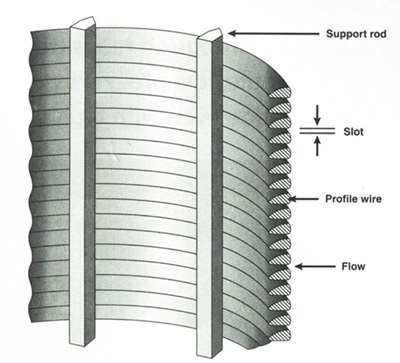

Also the V-shaped wire has an additional, allows for easy cleaning or backwashing of the filter media.
Due to our in house development department, tooling shop, production and quality control, we always react flexibly to requests and can be sure to meet the high quality demands of our customers.
YUANLV filter nozzles have been successfully implemented across various industries, providing effective solutions for both standard and specialized applications.
Some of the key industries benefiting from YUANLV's filtration technology include:
1. Municipal Water Treatment: Ensuring clean and safe drinking water by effectively removing contaminants and impurities.
2. Wastewater Treatment: Enhancing the efficiency of treatment processes by providing reliable filtration and preventing system blockages.
3. Chemical and Pharmaceutical Industries: Protecting sensitive processes and equipment by ensuring the purity of liquids used in manufacturing.
4. Food and Beverage Processing: Maintaining the quality and safety of products by filtering out unwanted particles and residues.
However, it is necessary to consider several factors before selecting a filter nozzle suitable for your application. You can clike here to learn the more.
For more than 10 years we have been working together with leading plant manufacturers and engineers in the water industry.
We guarantee the quality and durability of the nozzles for your application.
