Wedge Wire Hub & Header Distributor Assemblies

Wedge Wire Hub & Header Distributor Assemblies are critical components, consisting of a hub steel pipe with screen laterals. These assemblies efficiently collect or distribute liquid/gas, preventing the medium from escaping.

Hub & Header Distributor Assemblies Also referred to as Draining Filtering or water distributors, the water filter assemblies are designed to fit various vessel/filter sizes, flange sizes, flow rates, and medium specifications. The middle row device of the wedge wire screen laterals assemblies can be customized to meet specific shape requirements, such as an ordinary radial type, a fishbone type, or a T-type, among others. Additionally, the size of the lateral branch pipe and the hub master pipe can be adjusted to meet customer needs.

Applications:

Wedge Wire Hub & Header Distributors are commonly used in:

--Ion exchange systems

--Clay and sand filtration.

--Carbon towers and power plant water systems.

--Chemical filters

--Water/wastewater treatment equipment

Technical Information:

Material: Available in stainless steel (304/316L/316/904L), duplex steel, super duplex steel, and hastelloy.

Screen or Pipe Lateral: Available with perforated pipe-based screen lateral designs or other special designs.

Lateral Joint Type: Choose from standard thread, fabricated flanges, or fully welded types.

Available in both header-lateral and hub-lateral assemblies: Header or Hub Connection Size.

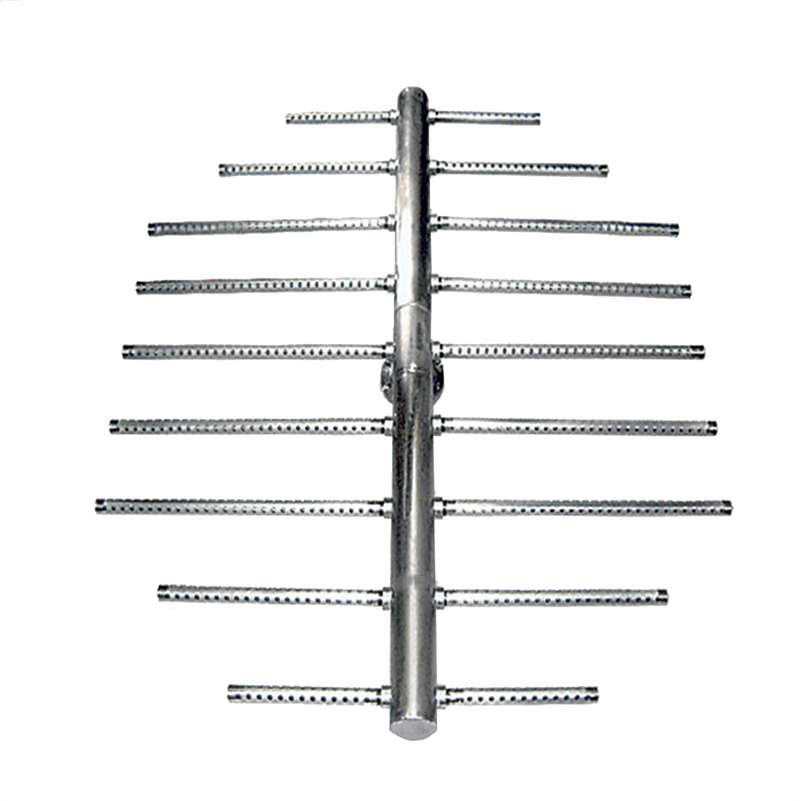

Assembly Pattern: The options available include Ordinary radial, Fishbone, and T-type configurations.

Product Variants:

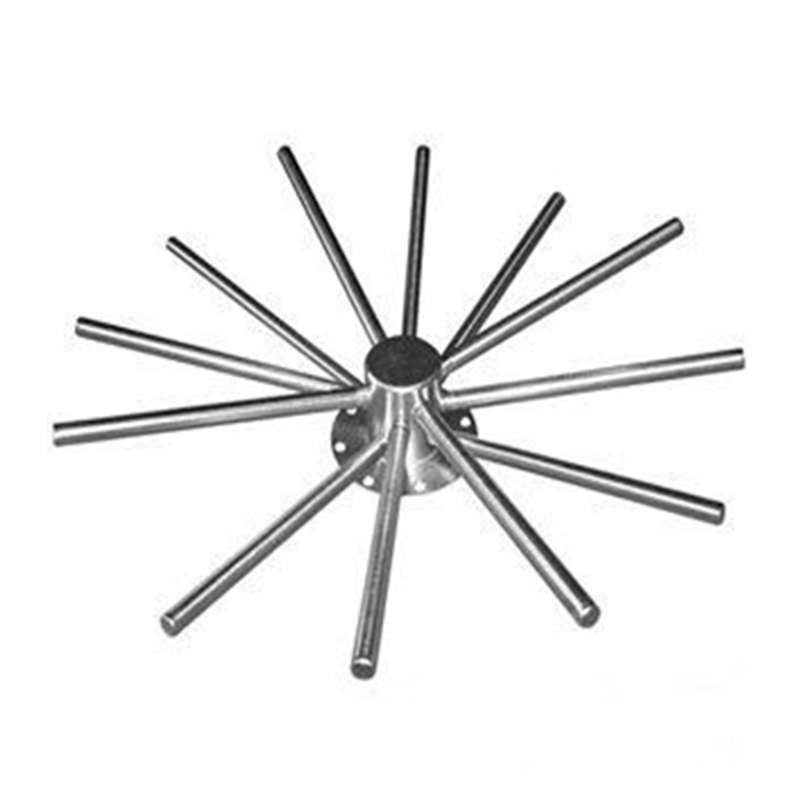

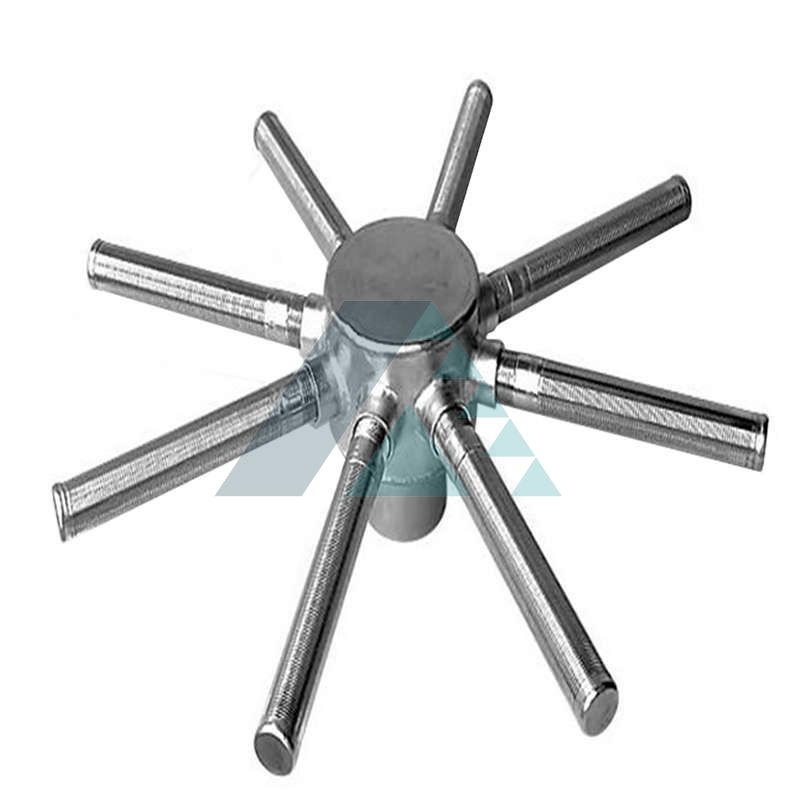

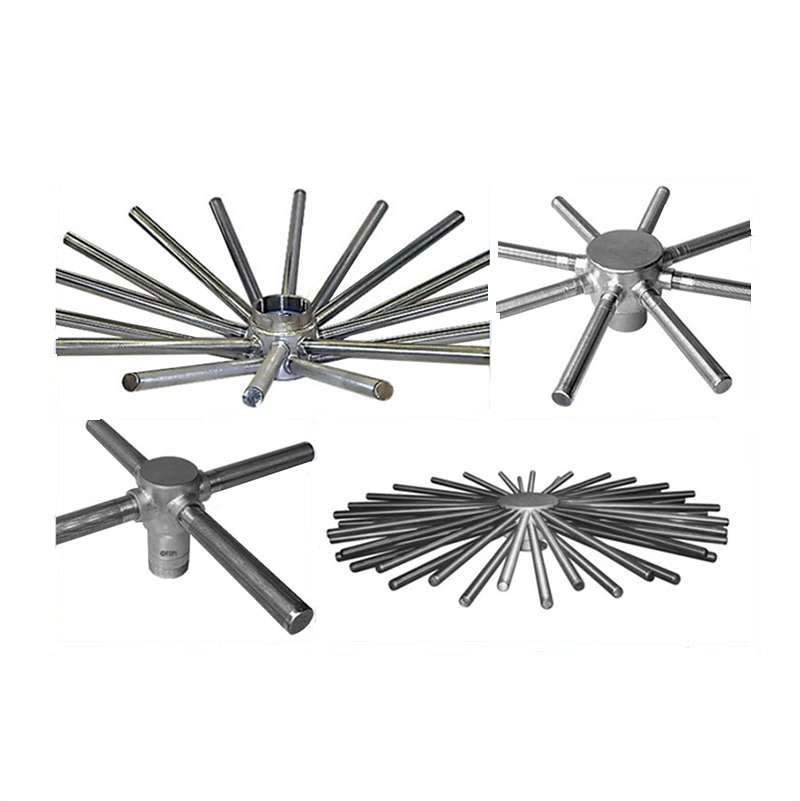

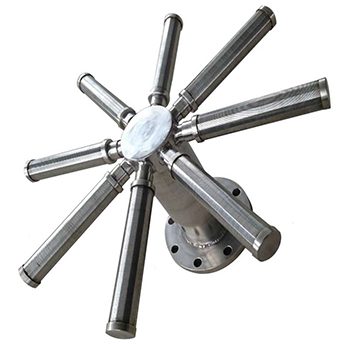

Hub Radial Lateral Assembly: A central hub and multiple screen laterals ensure uniform liquid distribution or concentrated collection in radial flow equipment like centrifuges.

Hub Fish Spike Lateral Assembly: Structurally different from the hub radial lateral assembly, it's ideal for liquid distribution and collection in large tanks.

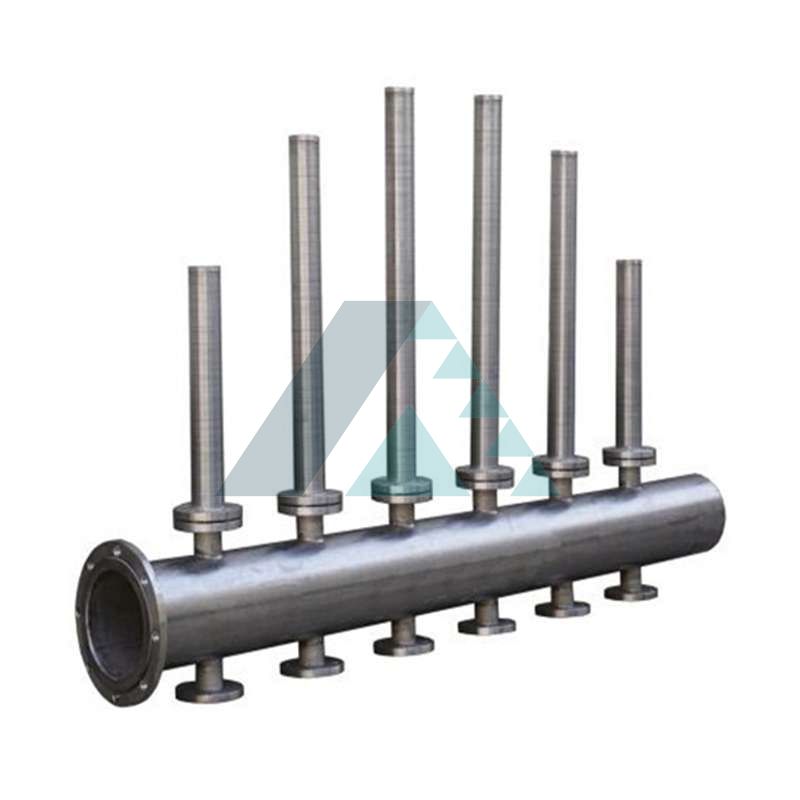

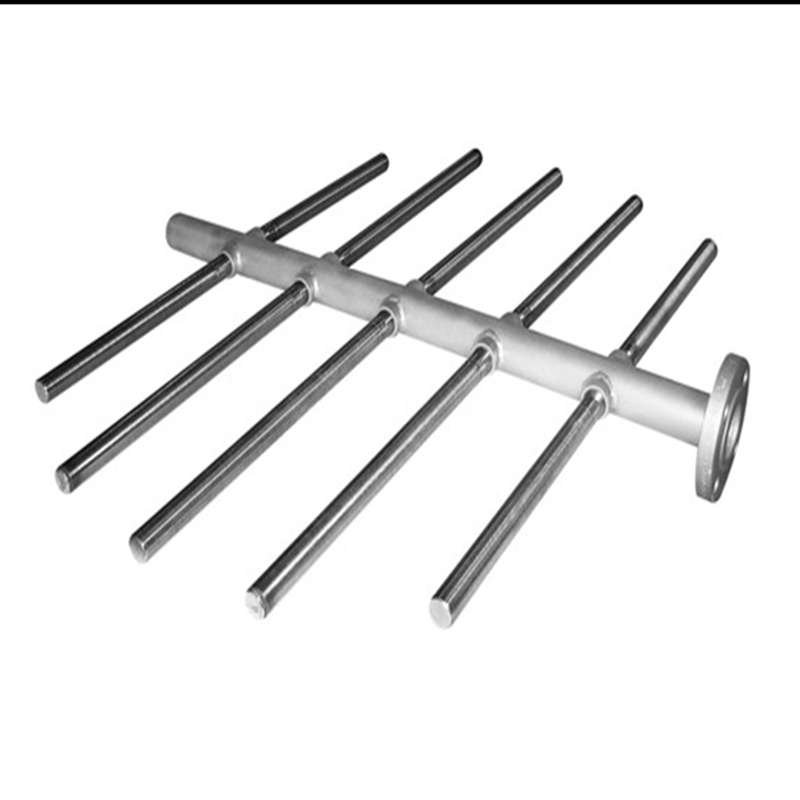

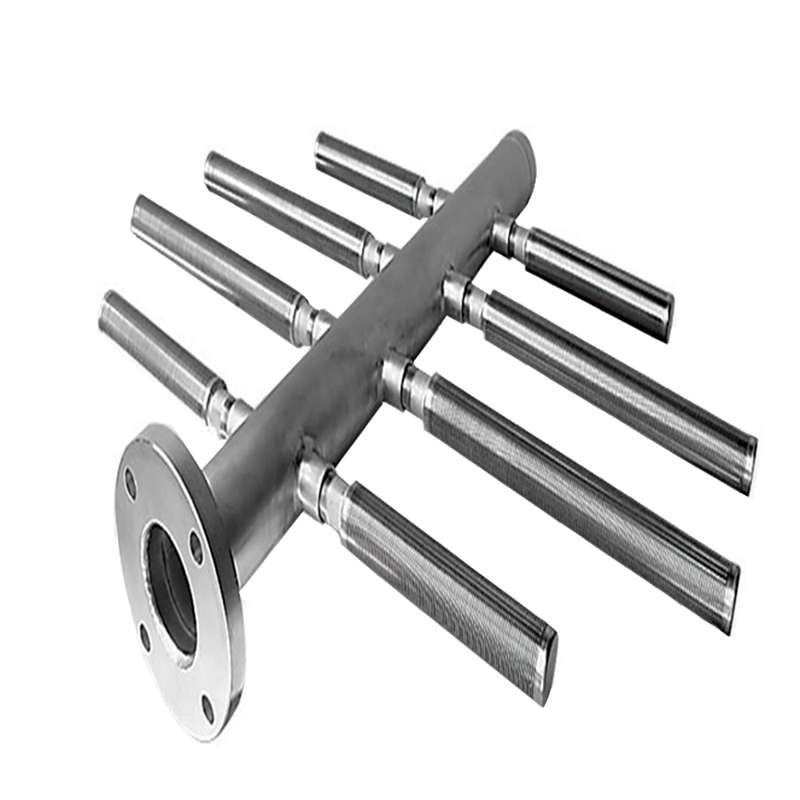

The header Lateral Assembly consists of a central header and several screen laterals mounted on both sides of the pipe, providing even distribution or collection of liquids within the vessel or at the outlet, adapting to different process conditions while maintaining high efficiency.

Quality Control:

Our commitment to superior quality control ensures that every product meets the highest standards. We implement strict quality control procedures to guarantee consistently reliable products.
