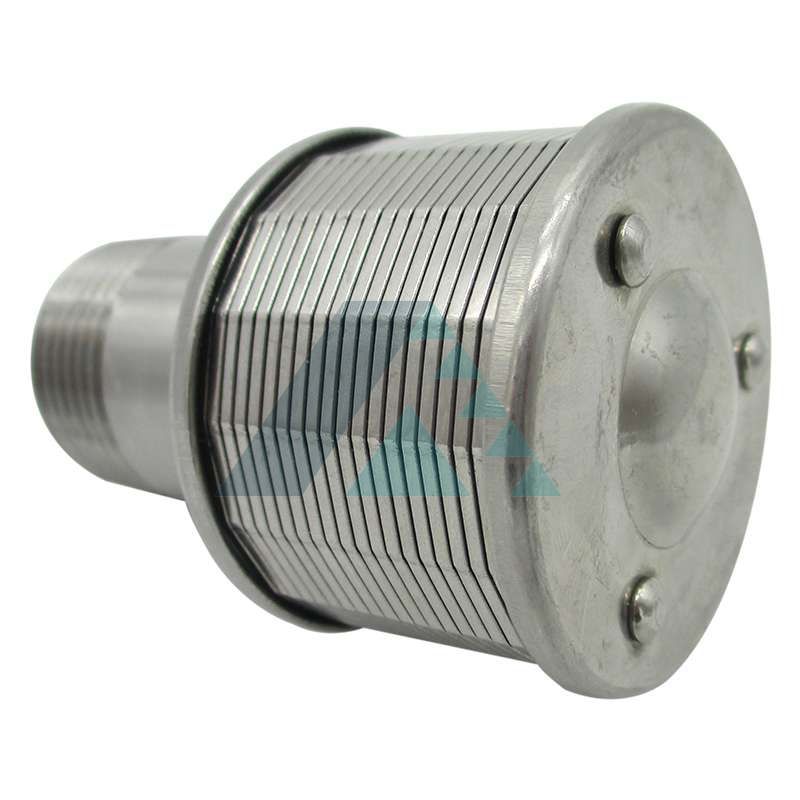

Vee Wire Nozzle Strainers are components which retain the media and also provide the means for good distribution of water. The wedge wire filter nozzles can be used for liquid / solid or gas / solid separation, or media retention (sand, catalyst, resin, etc).

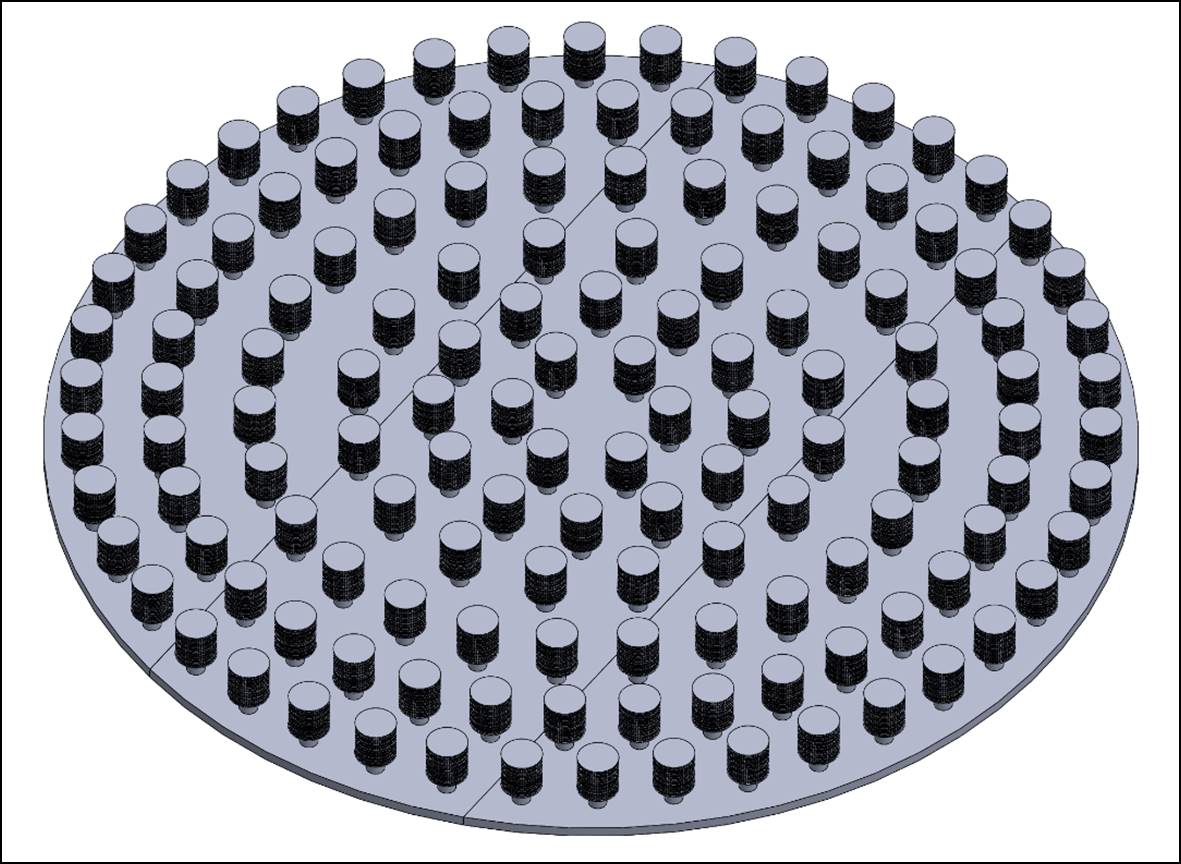

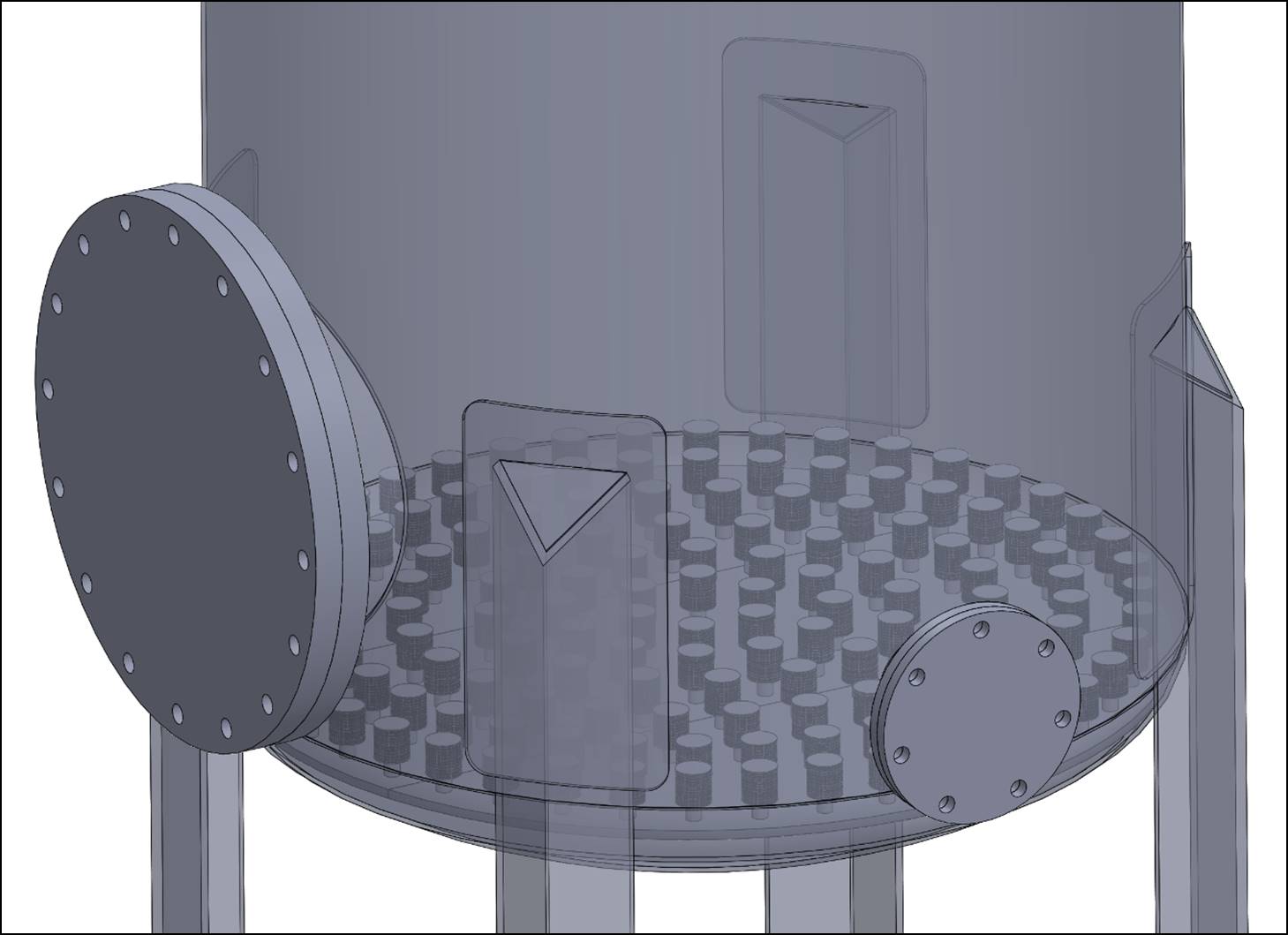

Filter nozzles can be installed in lateral pipes or suspended plates in the filter housings.
Application: Ion Exchange, Water/Wastewater Treatment, Sewage Plant, Chemical, Electricity power generation, Chemicals & Pharmaceuticals, Petrochemicals, Metal and Paper, Food & Beverage, Agricultural & Zootechnics, etc.
Product Details
Vee Wire Nozzle Strainer is also called wedge wire screen Johnson nozzle, stainless steel filter nozzle, Johnson screen tube, etc.

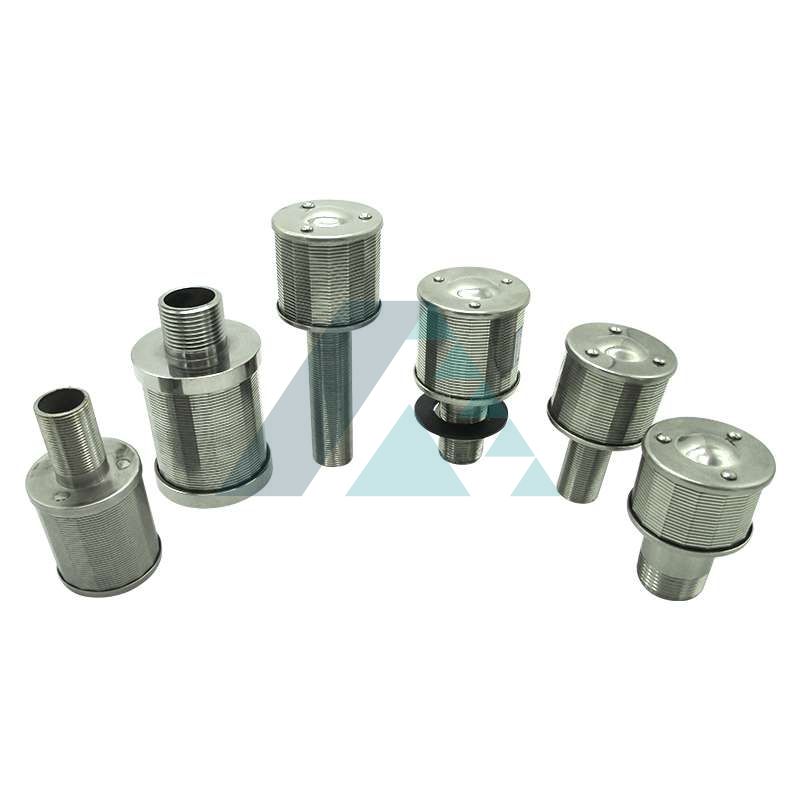

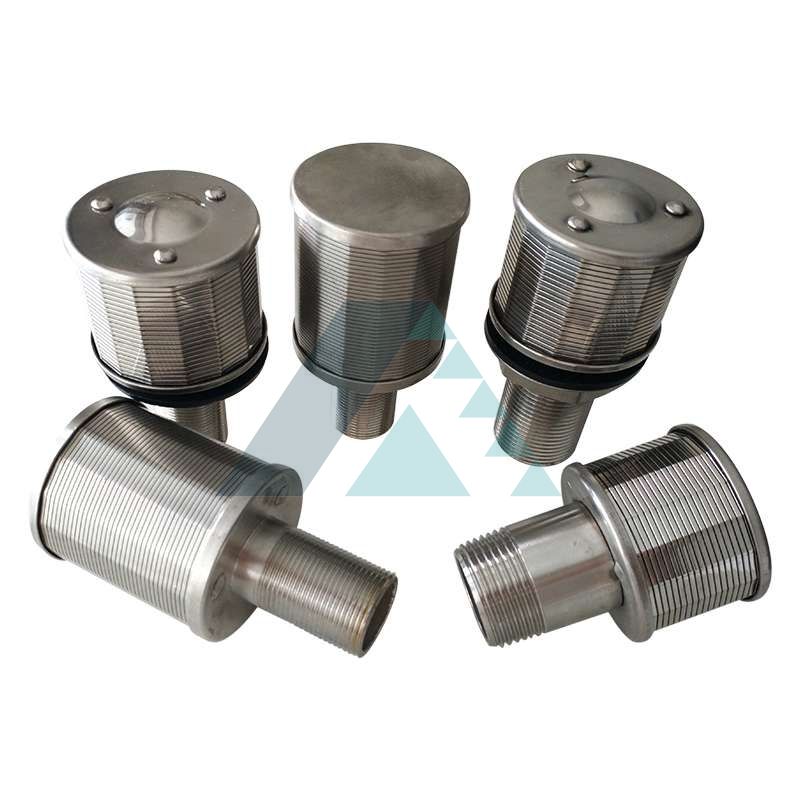

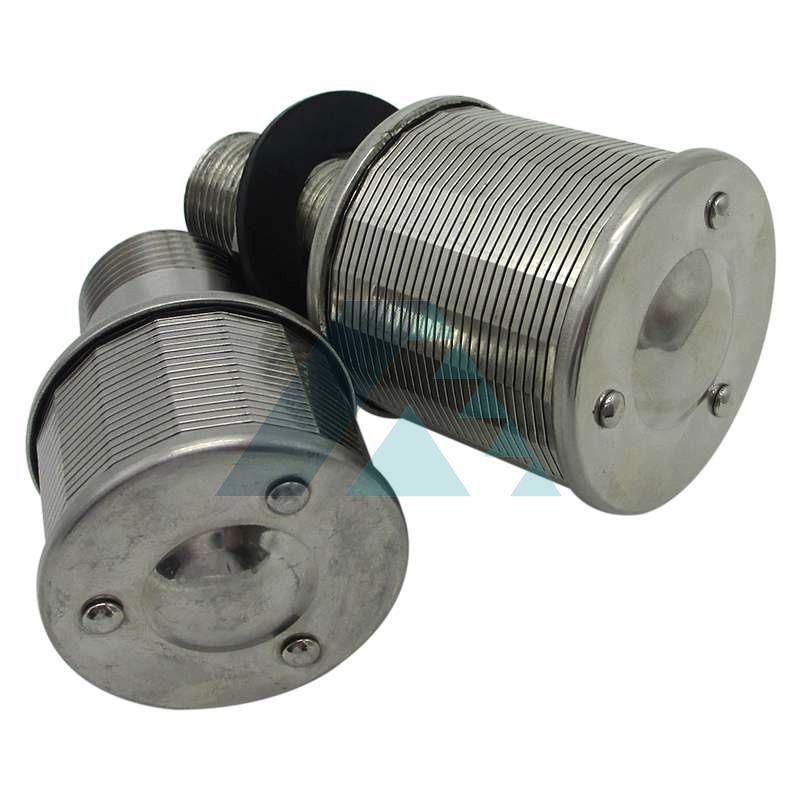

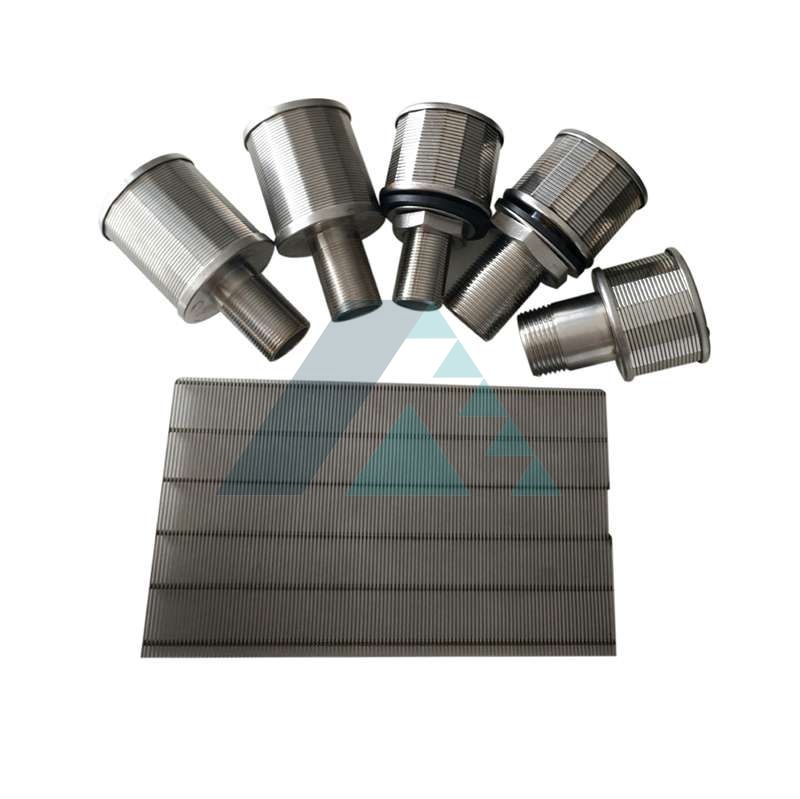

Vee Wire screen Nozzle Strainer is available with the following configurations: Vertical slot filter nozzles, horizontal slot filter nozzles, intermediate plate nozzles, long or extra long stem nozzles with quick fit or standard fitting accessories, can be used for different industry project applications.
These include Sewerage Treatment Plants (STP) and other urban and industrial wastewater treatment plants.
The wedge wire filter nozzles can be used for liquid / solid or gas / solid separation, or media retention (sand, catalyst, resin, etc).
Ion Exchange, Water/Wastewater Treatment, Sewage Plant, Chemical, Electricity power generation, Chemicals & Pharmaceuticals, Petrochemicals, Metal and Paper, Food & Beverage, Agricultural & Zootechnics,etc.
| Type | Slot (mm) | Dimension | Flow Rating (M3/H) | ||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
| Yuanlv-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket, Rubber gasket, Nut, request | 0.5 |
| Yuanlv-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| Yuanlv-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| Yuanlv-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| Yuanlv-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| Yuanlv-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note | * All the above sizes are the normal size. Customized size is possible. * Yuanlv could help to design according to the application and requirement. * More details can be customed, please contact our sales. | ||||||
