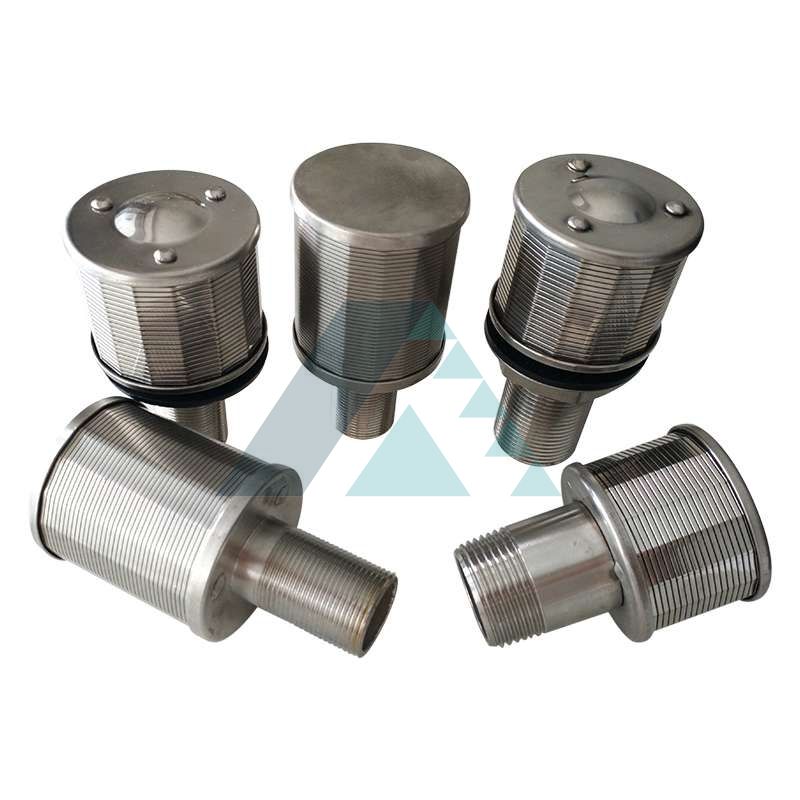

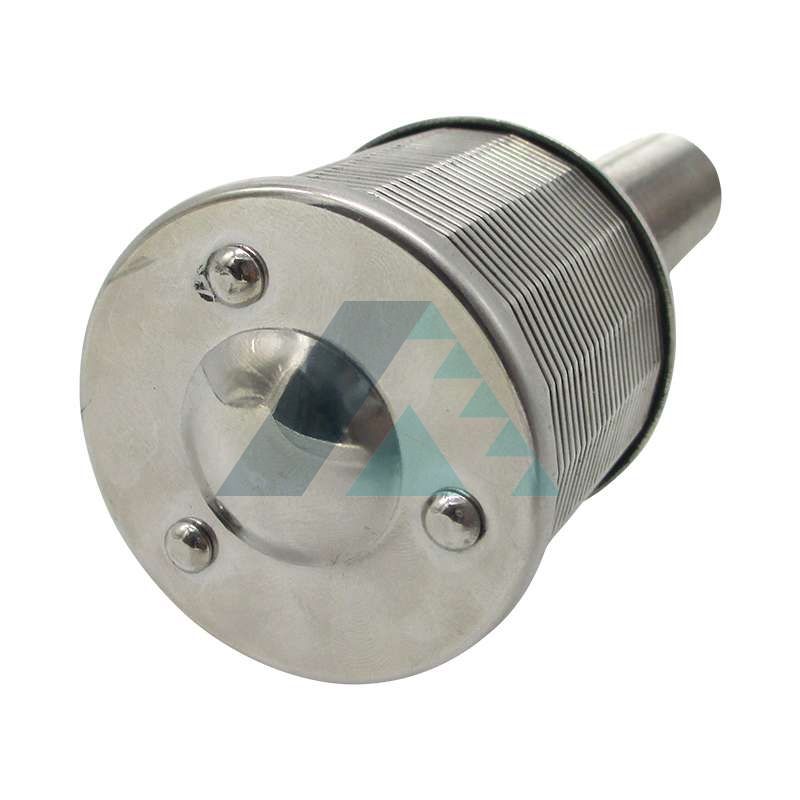

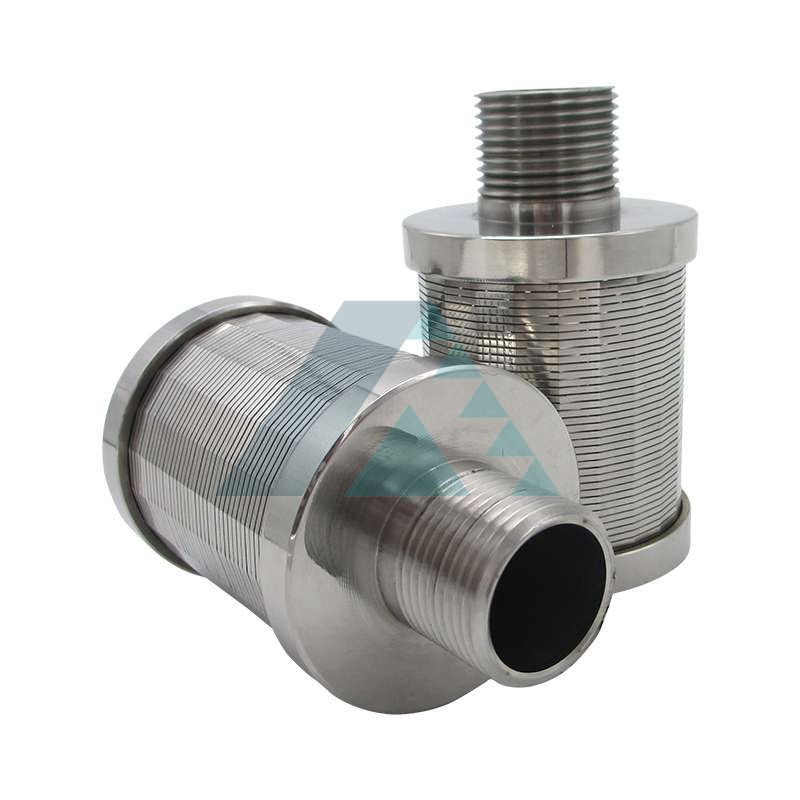

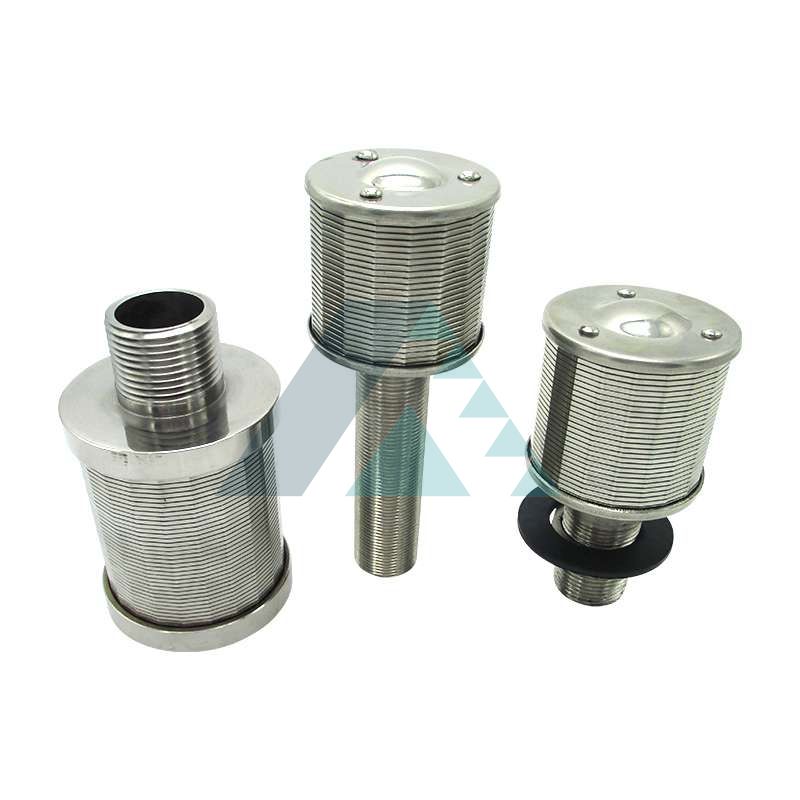

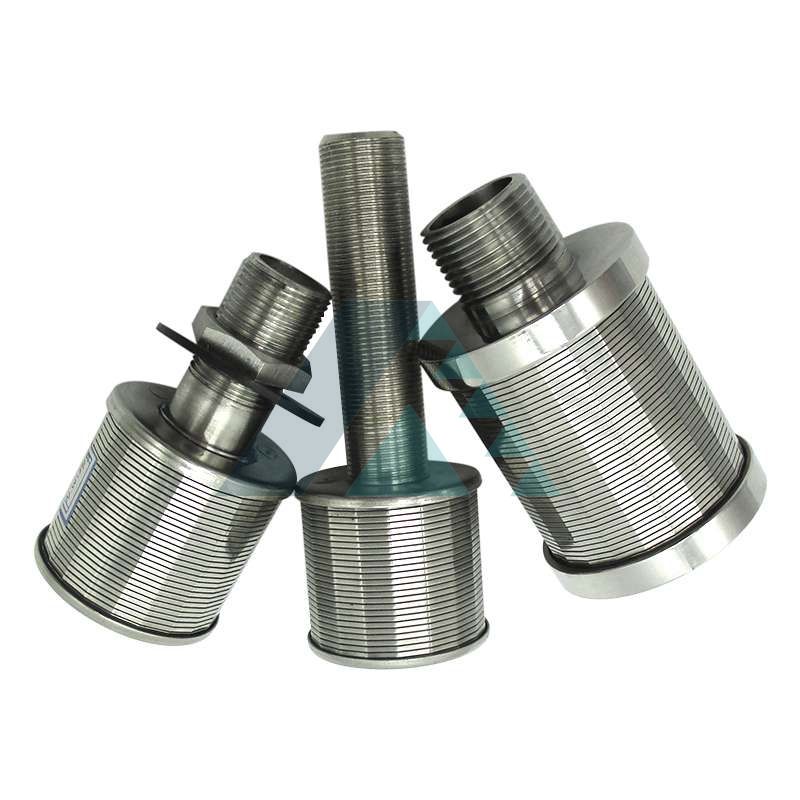

Ion Exchange Water Nozzle

Stainless steel wedge wire water filter nozzle strainer is suitable for water treatment, all kinds of matching ion exchange columns and activated carbon filters, it can also be used in the drainage system of fast filter, it can effectively wash out the sludge in the filter and ensure the normal operation of the water quality and quantity of the filter.

Its structure is reasonable, the connection is firm, the bearing strength is high, the gap does not change, it can make the filter plate have no dead water corner area, no mud, no clogging, the effect is good, (hourly drainage volume) 0.25t, 0.5T, 1T.

Johnson wedge wire screen water nozzle filter:

Material: Stainless steel 304, 316, 316L, 321, 2205, 2507, C276… (SS304 material can meet most of the use environment)
Wire size: 1.50mm 1.80mm 2.00mm 2.5mm 3.00mm(or as your need)
Slot size: 0.04” – 0.3”
Length: Up to 6000mm
Diameter: 1” – 48”
Structure: Wedge wire screen pipe + Cover plate + Thread + Nuts & Gaskets
Application: Water treatment, sand filter, water softening, desalination.

Compared with PP and ABS filter nozzle, stainless steel filter nozzle has the following advantages:

Strong construction, high mechanical strength

High temperature and corrosion resistance

Not blocked, easy to clean, reusable

Long service life

Media contains wax, asphalt, and high viscosity fluids(stainless steel is the only choice)

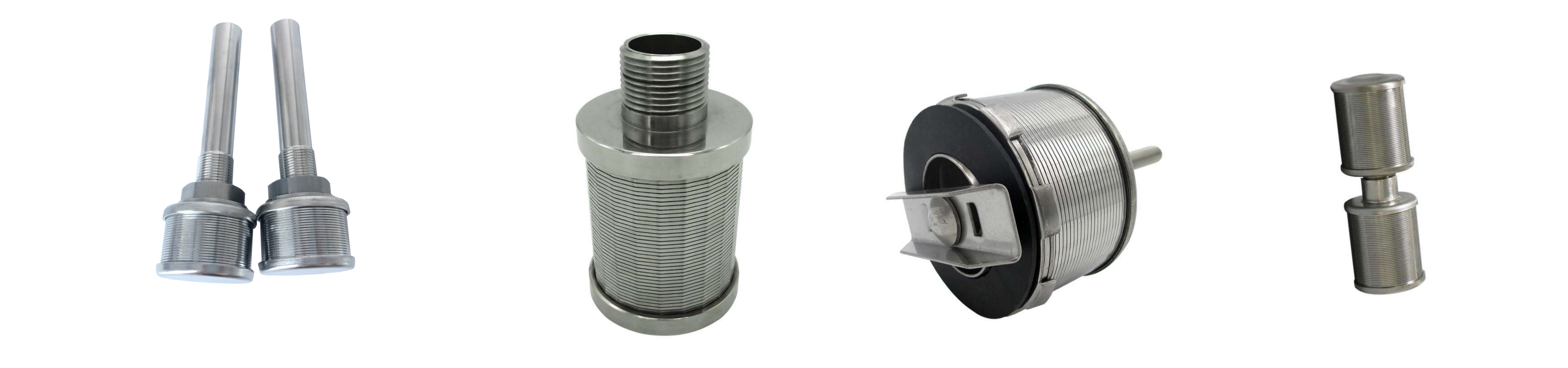

Filter Nozzle Types

All kinds of water filter nozzles can be customed.
