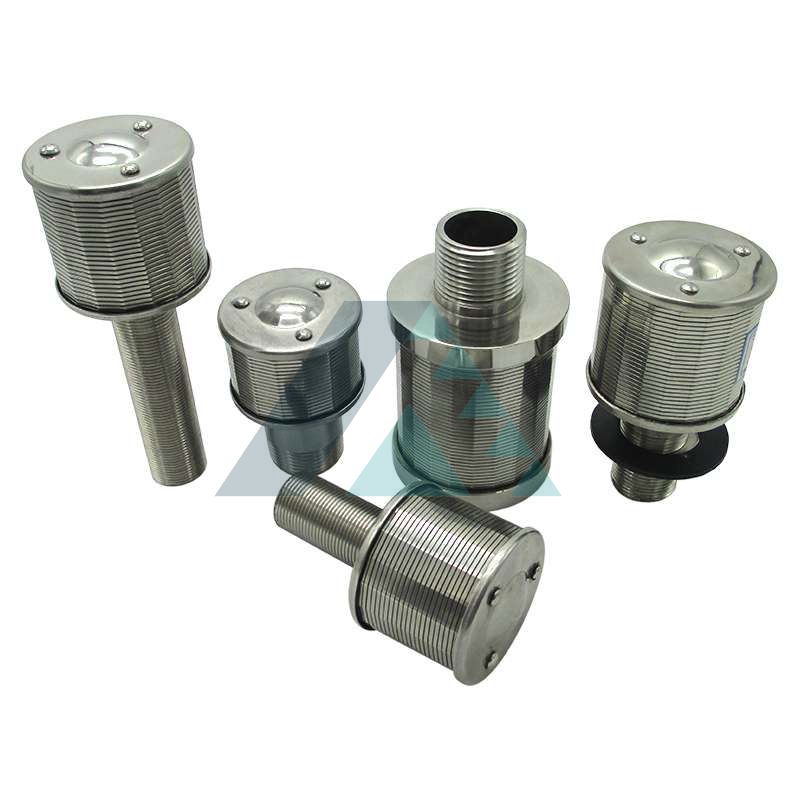

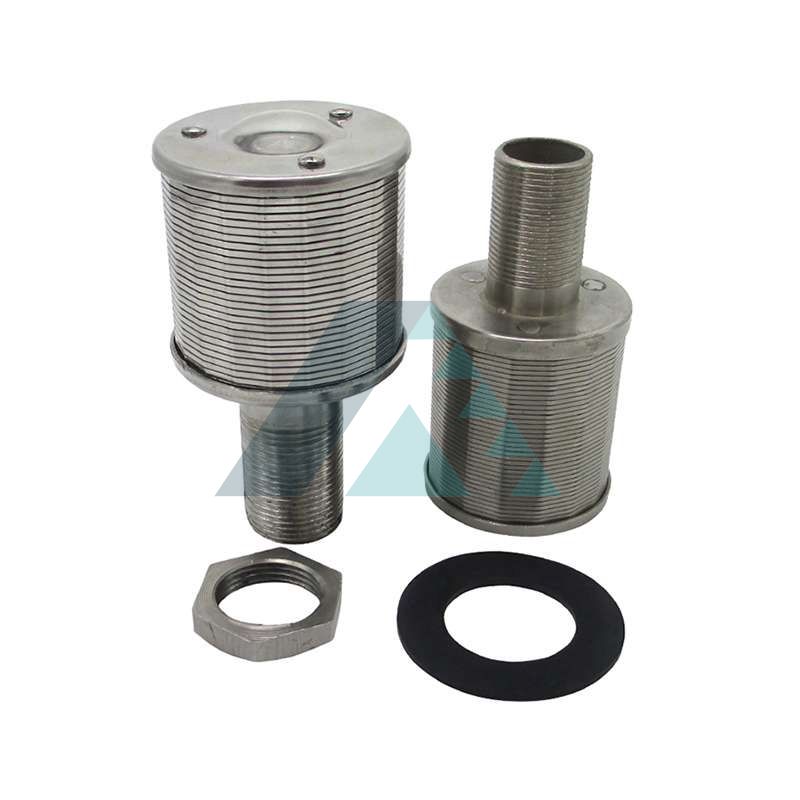

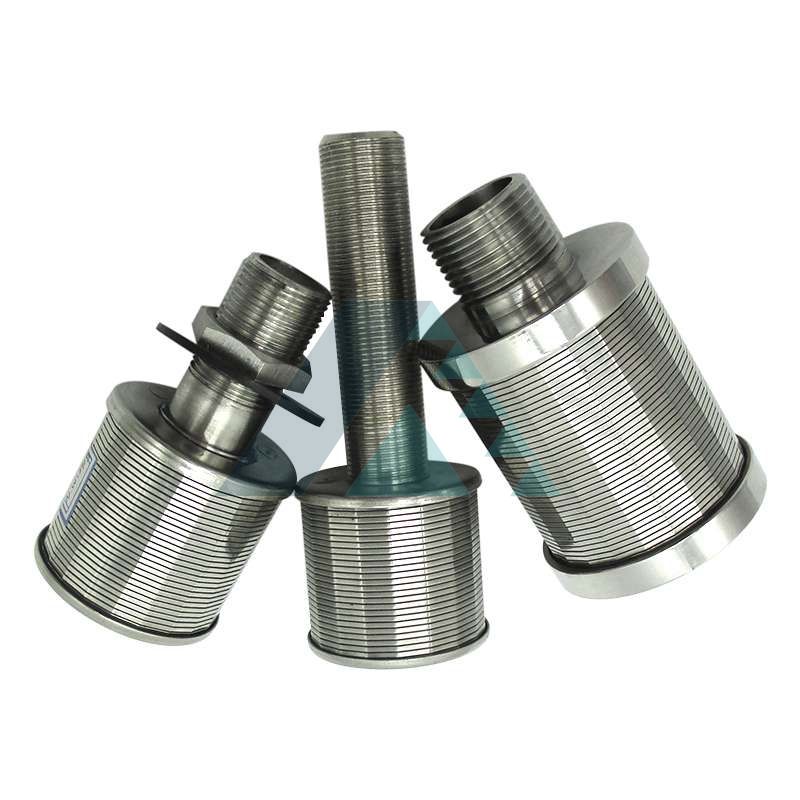

Stainless Steel Filter Nozzle

The Stainless Steel 304 Water Slot nozzle Screens are manufactured in accordance with customer flow requirements as the application and equipment. They can be designed for filtration or treatment systems to permit more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide range of water treatment and other industrial applications.

Common applications include under-drain media retention elements or flow distributors in deminer analyzers and water softeners in pressure and gravity sand filters. Strainers can also be used as collectors at the bottom of the vessels by installing a number of strainers uniformly across a tray plate.

The combination of a high open area and a non-plugging slot design makes this nozzle /collector application pupilar.

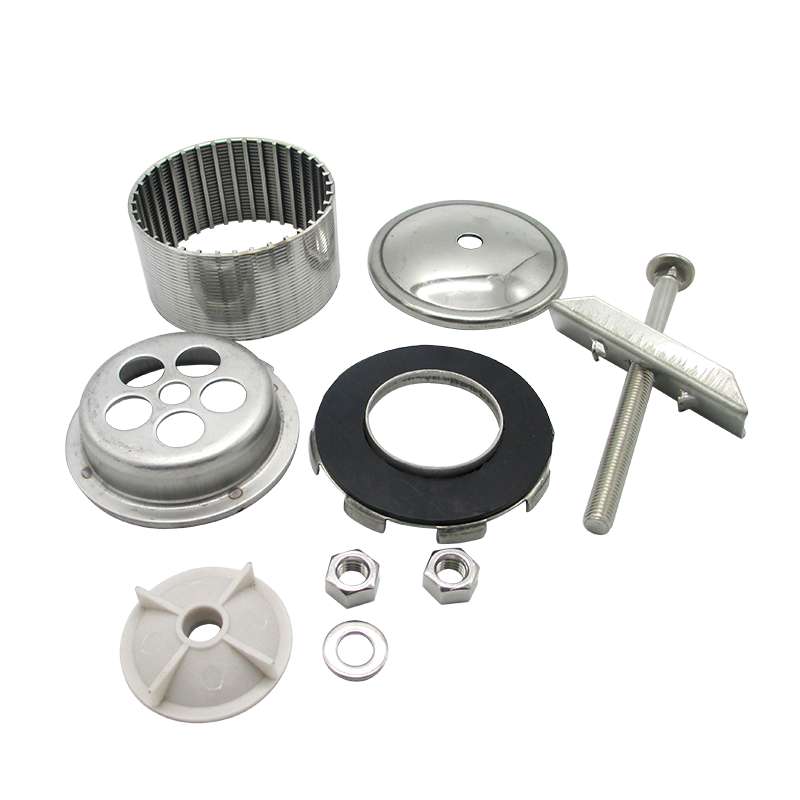

To maintain the slot size around the inside and add extra strength are mounted. It has each cover for both ends of the nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of the set bottom plate. The nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Advantages for Stainless Steel 304 Water Slot nozzle Screens

1. 304 316 304L 316L stainless steel construction or customer.

2.  Continuous slot design provides a large circulation area.

3. The standard nozzle is 2in/51mm in diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4. Standard slot opening typically ranges between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5. The wedge wire screen is highly resistant to plugging.

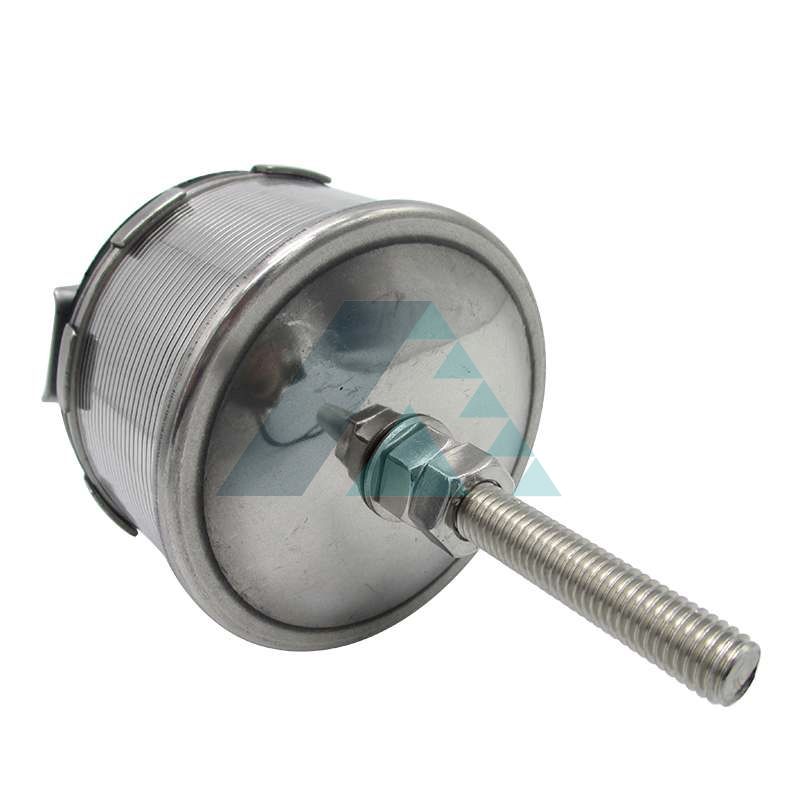

6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

   7. Unaffected by temperature, corrosion-resistant, aging resistant, long life span, easy change, safety, and environmentally friendly.

Application of the Stainless Steel 304 Water Slot Nozzle Screens

The Stainless Steel 304 Water Slot nozzle Screens can be fixed on the filtering equipment for the filtration of water petrol resin and other mediums. It can be widely used in water treatment, water softening, conversion of seawater into fresh water, and the filter food chemistry. Also, it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers, media retention, backwash retention, resin retention, and resin traps.
