The Titanium filter housing is Various types of liquid filtration, clarification, and purification treatment ideal equipment.
Product Details

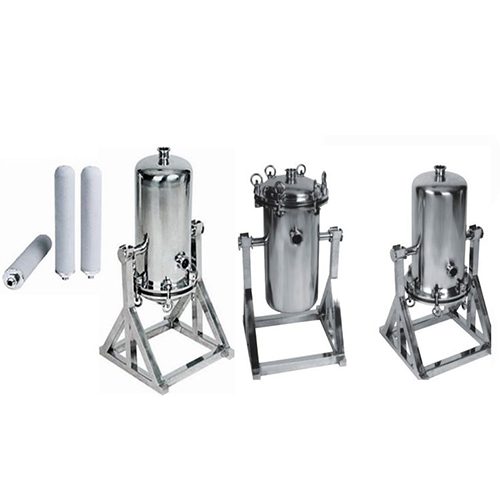

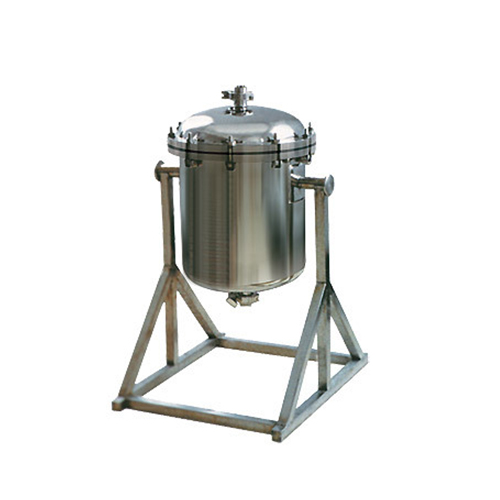

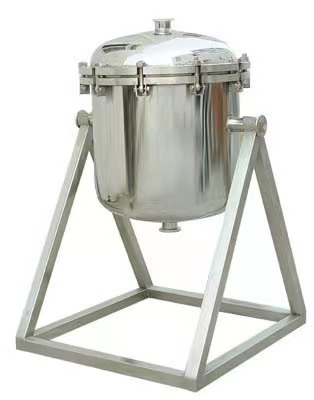

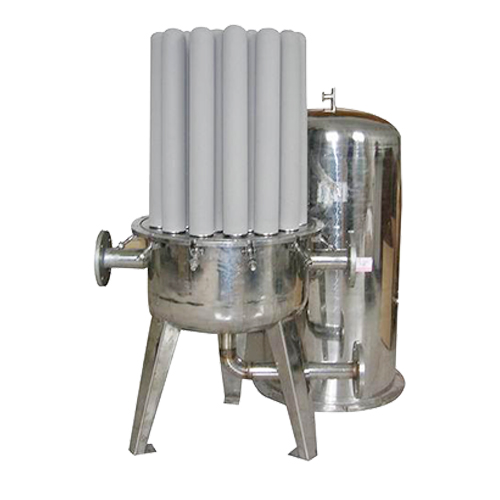

The Titanium filter housing is made of high-quality stainless steel 316L or 304 with the inside and outside mirror-polished. The filter elements are made of titanium rods, which make it has the following characteristics; corrosion resistance, high-temperature resistance, impact resistance, non-toxic, no particle shedding, no absorption of chemical components, Long service life (normal service life 4-5 years), easy to clean, renewable, etc. The titanium filter element belongs to deep filtration. Not only 3 dense filter layers with gaps form on the surface of the titanium rod, which plays a filtering role, but the particles can also be attached to the wall of the channel to form a bridging phenomenon intercepting the particles with smaller pore sizes than the titanium rod and improving the filtration degree.
1. Good airtightness, compact structure, not easy to damage. It is suitable for harsh working conditions on the production site, and there is no maintenance cost;
2. There is no problem of adsorption loss for filter solutions, adsorbents, and catalysts, and the original composition of the working medium is not changed;
3. Non-toxic, non-magnetic, non-shedding, good biocompatibility, because of this performance, titanium filters are widely used in the pharmaceutical industry, food and beverage industry;
4. Small footprint, high-temperature resistance, and good oxidation resistance, suitable for high-temperature precision filtration of various acid-base salts and various organic solvents;
5. Easy to disassemble and assemble, the filter structure is scientific and diverse, meeting various filtering requirements;
6. High filtration accuracy, can filter particles above 0.2 microns at one time.
Model | specification | 进出口 | sizes | ||
Nub filters | Lengh (mm) | diameter(mm) | housing diameter | highness | |
YTF102-5 | 1 | 5" | 25 | 102 | 570 |
YTF102-10 | 10" | 690 | |||
YTF102-20 | 20" | 940 | |||
YTF102-30 | 30" | 1190 | |||
YTF184-10 | 3 | 10" | 32 | 184 | 720 |
YTF184-20 | 20" | 980 | |||
YTF184-30 | 30" | 1210 | |||
YTF219-10 | 5 | 10" | 38 | 219 | 730 |
YTF219-20 | 20" | 990 | |||
YTF219-30 | 30" | 1220 | |||
YTF219-40 | 40" | 1460 | |||
YTF273-20 | 7 | 20" | 45 | 273 | 1060 |
YTF273-30 | 30" | 1290 | |||
YTF273-40 | 40" | 1530 | |||
YTF325-20 | 9 | 20" | 51 | 325 | 1080 |
YTF325-30 | 30" | 1310 | |||
YTF325-40 | 40" | 1550 | |||
YTF350-20 | 12 | 20" | 57 | 350 | 1150 |
YTF350-30 | 30" | 1380 | |||
YTF350-40 | 40" | 1620 | |||
YTF400-20 | 18 | 20" | 76 | 400 | 1160 |
YTF400-30 | 30" | 1390 | |||
YTF400-40 | 40" | 1630 | |||
YTF450-20 | 21 | 20" | 89 | 450 | 1190 |
YTF450-30 | 30" | 1420 | |||
YTF450-40 | 40" | 1660 | |||
Noted： 1. Filter element interface form: M20/M30, 222 (plug-in type), 226 (snap-in type), flat pressure port, threaded port, etc. Special interface can be customized. 2. Import and export connection form: quick installation, thread, flange and other forms 3. Pressure gauge (optional) | |||||
1. For the newly used filter element, it is generally cleaned by water backflush and gas backflush, that is, clean water slightly higher than the working pressure (eg; 0.3mPa) is injected in the opposite direction for cleaning. Recoil time is about 1 to 3 minutes.
2 After several times of backwashing, if the filtration effect does not improve significantly, it can be soaked in nitric acid solution below 5% or NaOH solution below 10% at room temperature, and then washed with water.
The specific choice of pickling or alkali washing should be based on the fact that the impurities in the filtrate are easily soluble in acid or alkali.
Pharmaceutical industry
Water treatment industry
Chemical industry
Petroleum industry
Oil Coal Mine industry, etc.
Note: specifications listed above are for reference only, custom service provided, contact Yuanlv now.
