Precision filtration devices (also known as security filter housing) are mainly used after multi-media pretreatment filtration and before reverse osmosis, ultrafiltration, and other membrane filtration equipment.
Product Details

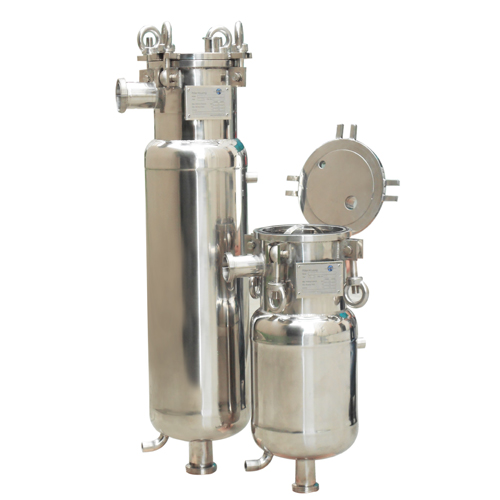

Precision filtration devices (also known as security filter housing) mostly use stainless steel as the shell, and filter elements (such as PP cotton) are installed inside.
They are mainly used after multi-media pretreatment filtration and before reverse osmosis, ultrafiltration, and other membrane filtration equipment. It is used to filter out fine substances filtered by multimedia (such as tiny quartz sand, activated carbon particles, etc.) to ensure water quality filtration accuracy and protect membrane filter elements from damage by large particles.
The security filter housing of the filter element built into the precision filter device can be divided into 0.5μs, 1μs, 5μs, 10μs, etc., and different filtration precisions are selected according to different usage occasions to ensure the accuracy of the final water outlet and the safety of the subsequent membrane elements.
1. It can effectively remove suspended solids and rust in the liquid.
2. Can withstand high filtration pressure.
3. The unique deep mesh structure makes the filter element have a higher slag load capacity.
4. The filter element can be made of a variety of materials to meet the needs of various fluid filtration.
5. Small size, large filter area, small resistance, and long service life
Water Finish: R.O reverse osmosis filtration for drinking water
Food and Beverage industry: wine, mineral water, drinking water filtration

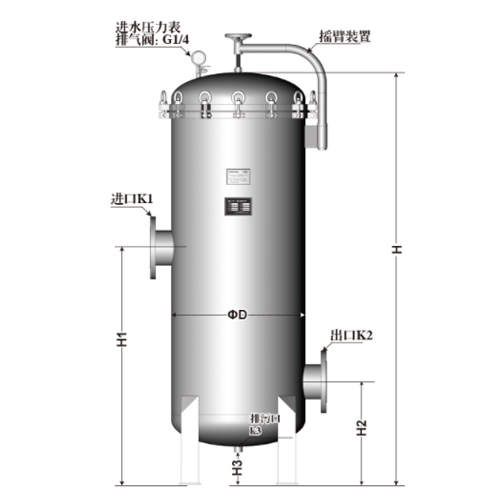

model | specifications | connection | Sewage Outlet | size(mm) | |||||
Num Filter | lengh | D | H | H1 | H2 | H3 | |||
YPQ180-10 | 3 | 10" | DN32 | DN15 | 180 | 750 | 350 | 75 | 160 |
YPQ200-10 | 5 | 20" | DN32 | 200 | 750 | 350 | 80 | 160 | |
YPQ200-20 | 30" | DN32 | 1000 | ||||||
YPQ200-30 | 40" | DN40 | 1260 | ||||||
YPQ250-20 | 7 | 20" | DN40 | 250 | 790 | 350 | 90 | 170 | |
YPQ250-30 | 30" | DN50 | 1040 | ||||||
YPQ250-40 | 40" | DN50 | 1300 | ||||||
YPQ300-20 | 12 | 20" | DN50 | 300 | 850 | 450 | 90 | 220 | |
YPQ300-30 | 30" | 1100 | |||||||
YPQ300-40 | 40" | 1360 | |||||||
YPQ350-30 | 15 | 30" | DN50 | 350 | 1100 | 450 | 105 | 220 | |
YPQ350-40 | 40" | DN65 | 1365 | ||||||
YPQ400-40 | 20 | DN65 | 400 | 1370 | 500 | 105 | 230 | ||
YPQ450-40 | 25 | DN80 | DN20 | 450 | 1385 | 500 | 140 | 240 | |
YPQ500-40 | 30 | DN80 | 500 | 1400 | 550 | 140 | 250 | ||
YPQ550-40 | 36 | DN100 | 550 | 1400 | 550 | 140 | 250 |
Model | specifications | connection | Sewage Outlet | size(mm) | |||||
Num Filter | lengh | D | H | H1 | H2 | H3 | |||
YPQ600-40 | 42 | 40" | DN100 | DN20 | 600 | 1745 | 700 | 400 | 150 |
YPQ650-40 | 51 | DN125 | DN25 | 650 | 1760 | 700 | 410 | 150 | |
YPQ700-40 | 60 | 700 | 1780 | 720 | 430 | 150 | |||
YPQ750-40 | 72 | 750 | 1800 | 730 | 445 | 150 | |||
YPQ800-40 | 89 | 800 | 1820 | 760 | 460 | 150 | |||
YPQ850-40 | 102 | DN150 | 900 | 2000 | 950 | 560 | 200 | ||
YPQ1000-40 | 123 | DN200 | 1000 | 2100 | 1020 | 610 | 200 |
Model | flow | Num Filter elements | connection flange
| Sewage Outlet |
YDQ200-40 | 30 | 1 | DN65 | DN15 |
YDQ350-40 | 60 | 2 | DN100 | DN20 |
YDQ400-40 | 90 | 3 | DN100 | DN25 |
YDQ425-40 | 120 | 4 | DN125 | |
YDQ450-40 | 150 | 5 | DN125 | |
YDQ500-40 | 180 | 6 | DN125 | |
YDQ550-40 | 210 | 7 | DN150 |
Model | flow | Num Filter elements | connection flange | Sewage Outlet | sizes(mm) | ||||
D | H | H1 | H2 | H3 | |||||
YDQ600-40 | 240 | 8 | DN150 | DN25 | 600 | 1850 | 1000 | 470 | 150 |
YDQ650-40 | 300 | 10 | DN200 | 650 | 1900 | 1000 | 470 | 150 | |
YDQ700-40 | 360 | 12 | DN200 | 700 | 1950 | 1000 | 470 | 150 | |
YDQ800-40 | 450 | 15 | DN200 | 800 | 2000 | 1200 | 530 | 150 | |
YDQ850-40 | 510 | 17 | DN250 | 850 | 2050 | 1200 | 530 | 150 | |
YDQ900-40 | 570 | 19 | DN250 | 900 | 2100 | 1200 | 530 | 150 | |
YDQ1000-40 | 720 | 24 | DN300 | 1000 | 2200 | 1400 | 620 | 150 | |
Filter specifications:φ152*40" PN10 |
In addition to the showed filter range, we can also manufacture Custom Made with deviating specifications at the customer’s request.
For the right filtration solution and filter products, contact or email our filter specialist.
We are happy to help you.
Our team of filter specialists is are 24/7 available.
We are specialized in liquid filtration for over 15 years.
