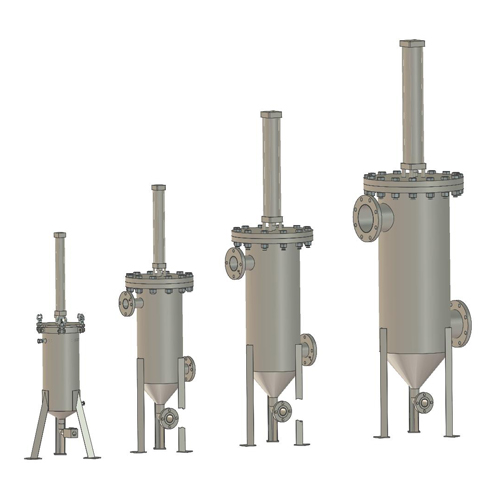

Self Cleaning Filters-Mechanically Cleaned

Share:

Self cleaning filter housing can easily solve the problem of the filter being easily clogged when filtering viscous materials and soft impurities, which can always keep the filter element clean and discharge a high concentration of impurities with efficient filtration.

Self Cleaning Filters-Mechanically Cleaned types is specially designed for high-viscosity liquid filtration.


Product Details

Why Choose Self Cleaning Filters-Mechanically Cleaned Series?

Self Cleaning Filters housing for  viscosity liquid filtration

Users often find that the filter is easily clogged when filtering viscous materials and soft impurities, thus having to choose a large filter or backwashing frequently, resulting in a large increase in production costs. Self cleaning filters can easily solve this problem, which can always keep the filter element clean and discharge a high concentration of impurities with little material waste.

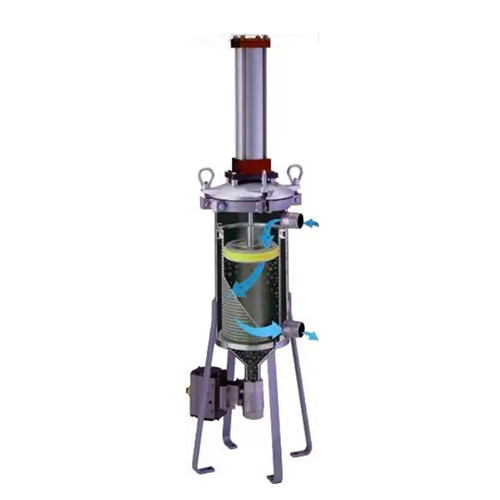

Self cleaning filters which automatically clean the filter particles on the surface by efficient mechanical scraping can work instantly without filtering consumables and manual cleaning and is suitable for general and high-viscosity liquid filtration.


Mechanically cleaned filters eliminate the need for disposable filters and help provide a consistently low-pressure differential. All of these factors not only help keep your system running efficiently, but they lower the cost of labor and inventory.

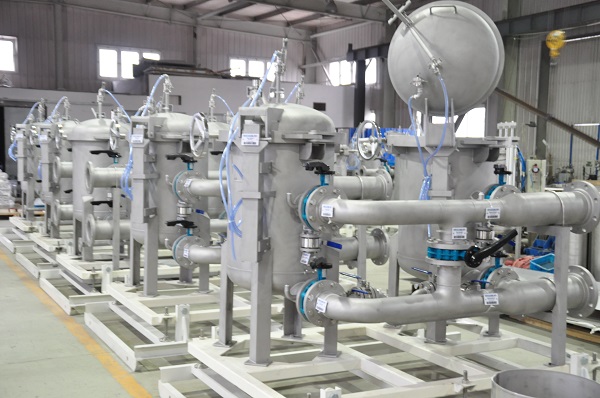

Self Cleaning Filters system for water treatment

Application of Self Cleaing Filter Housing


  Suitable for any liquid and waste water filtration, especially some viscous liquids.

  Suitable liquids(especially viscosity liquid filtration) :

  wax, kerosene, polymer, citric acid, fermentation liquid, cosmetics, agarose (gel), silicone solution, soap, sorbitol,     steroid, syrup, wet-end auxiliary, adhesive, pigment, lubricant, coating, resin, latex, ethanol, mixed oil, edible oil,   high-temperature oil, fruit juice, diesel, etc.







Viscosity Liquid Self-cleaning Filter Specification

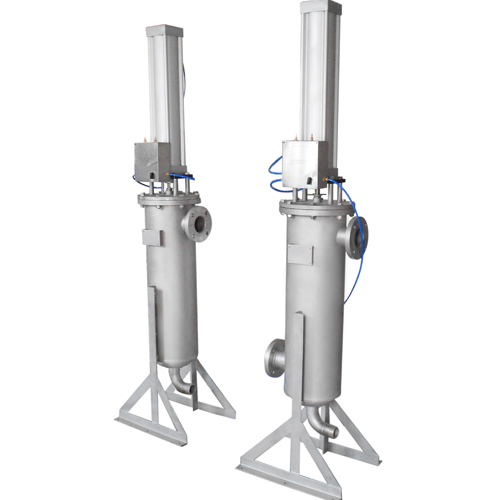

Pneumatic Scraper Self-Cleaning FilterHigh Viscosity Liquid Filtration Self-cleaning Filters

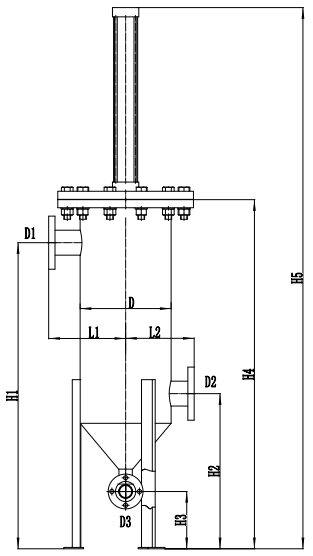

CodeDD1D2D3H1H2H3H4H5L1L2PN
mmDNDNDNmmmmmmmmmmmmmmbar
YGP-200219252520730310150783128815615610
YGP-2502734040408904802001013153524020010
YGP-30032550504010905502001245193027524510
YGP-40042680805013106502001504230234031010

1. Inlet and outlet can be customized as users request.
2. Design pressure (PN) can be customized at the user's request.
3. Material is SS304 or SS316, or other material according to users' requests.
4. Filteration rating range from 50-2000μm, according to user's request.

Self-cleaning Filters Housings Product Description

Liquid

Especially for high-viscosity liquid filtration

Filter rating

30-1500μm

Design pressure

1.0MPa or customized

Design temp.

0-200℃

Filtering area

0.14m²-1.45m²

Press difference

0.05MPa

Pressure alert

Pressure switch

Gearmotor

550W,three-phase,380V,IP55

Inlet/outlet flange

HG20592-2009, HG20615-2009(ANSI B16.5)

Drum screen

Wedge wire,SS304/SS316L/2205/Titanium

Housing material

304/316L/CS

Scraper material

Copper/alloy steel/PTFE

Seal material

NBR/VITON(FKM)

Drain valve

Electric/pneumatic ball valve,IP55

Liquid

380V AC,0.4-0.6MPa  clean and dry compressed air
